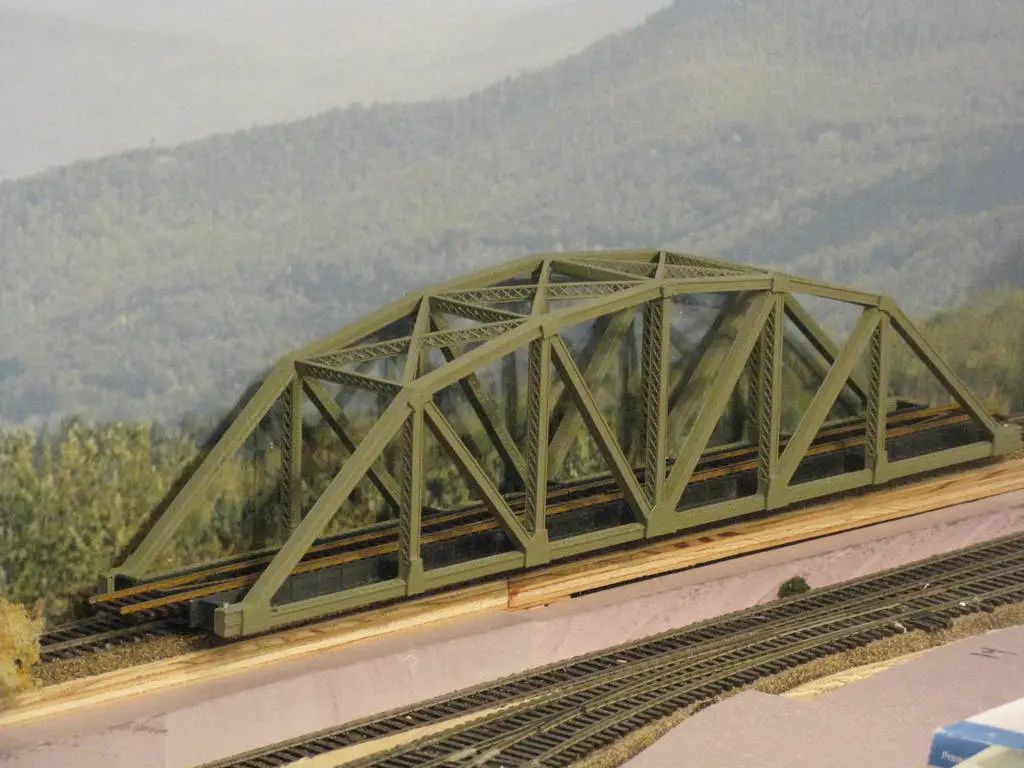

HO Scale126 ft Steel Arched Truss Bridge
I designed this bridge from a MR Magazine image (attached). You basically print (2) of each component each will fit on a 10" bed. The components are mostly self locating. The upper trusses are printed flat but will bend to align with the curve of the bridge. I included a page of instructions for...
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a kabrumble.
Archivos (6)
- Deck_Sections.stl STL
- LH_Main_Truss_Section.stl STL
- RH_Main_Truss_Section.stl STL
- Splice_Gussets.stl STL
- Track_Bridge_Guardrails.stl STL
- Upper_Trusses.stl STL
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 1,900
- Publicado
Sobre este modelo

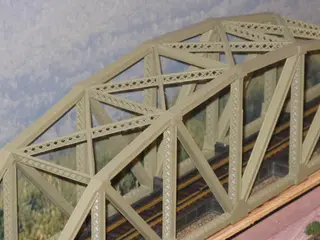

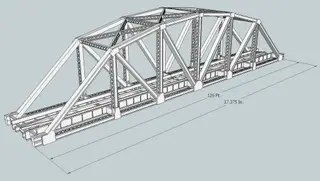

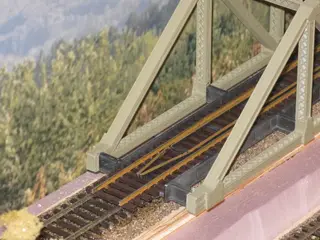

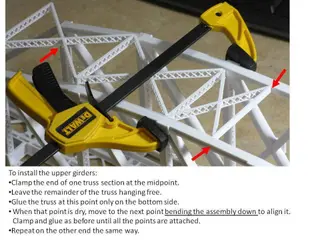

I designed this bridge from a MR Magazine image (attached). You basically print (2) of each component each will fit on a 10" bed. The components are mostly self locating. The upper trusses are printed flat but will bend to align with the curve of the bridge. I included a page of instructions for this. I also included bridge rail guardrails. The track I use is Peco Code 83. The ties will fit into the guides on the bridge, and the rail guardrails will snap in between the ties. I recommend painting the different color sections before assembly to reduce the amount of masking.
Descripción original del autor, publicada en Cults3D.
