High Resolution Resin Print Head For RepRapMicron
por Vik en Printables
Parts to attach UV LED and 125/9 Optical fibre to a μRepRap allowing 9μm resolution in 3D printer resin.
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a Vik.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

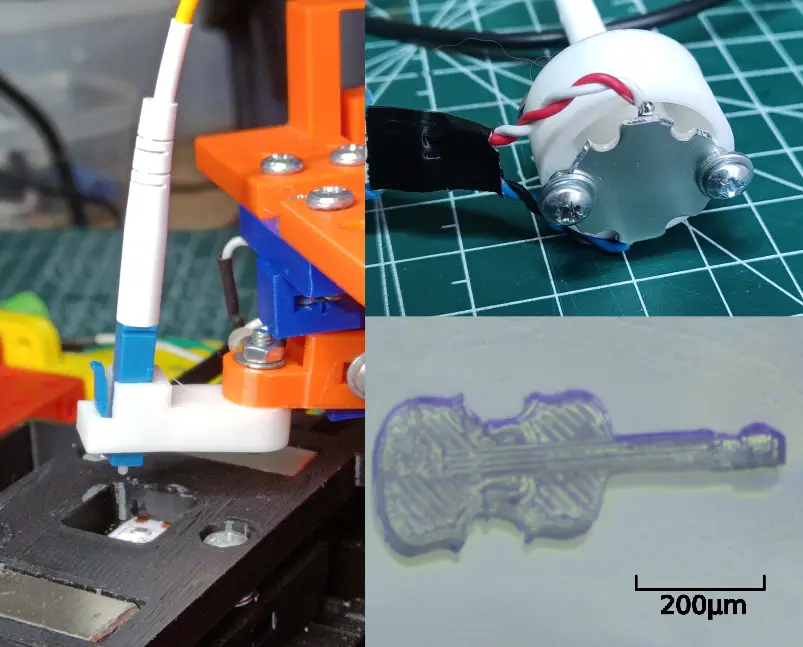

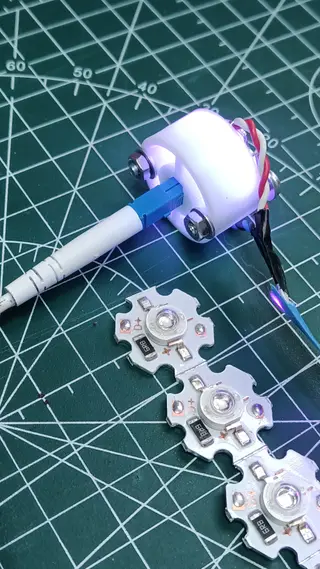

There are two parts to this: The Optic Probe Holder which attaches to the RepRapMicron Z Axis Arm, and an adaptor that holds a 3W UV LED module to a standard simplex 125/9 fibre optic cable. A duplex lead may be halved with a hacksaw. The author is using clear eSun Standard Resin. Full instructions and links to source, PrusaSlicer filters, operation, RepRapMicron etc. live on https://github.com/VikOlliver/RepRapMicron/wiki/PIKA-UV-Head Images show the fitted head, UV Module, and a 0.6mm violin, and the working UV Module with separate LEDs, assembled with 2 of M3 x 20 screws with washers and nuts.
Descripción original del autor, publicada en Printables.
