High Heel Door Wedge (support-free)
por sina chavoshi en Printables
Door stop shaped like a stylized high heel: thin 4 mm toe slides under the door, hollow body prints without supports.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a sina chavoshi.
Archivos (1)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

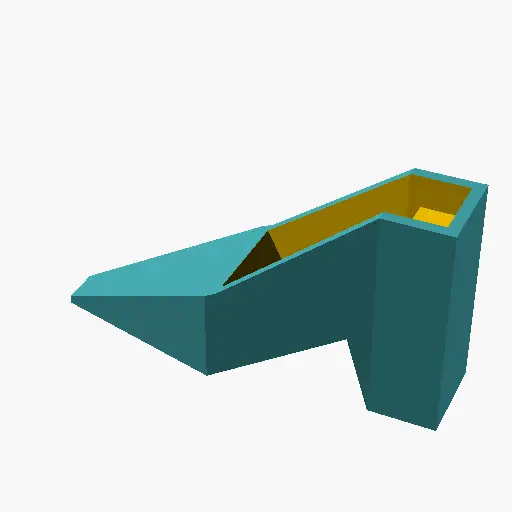

A stylized high heel shoe that works as a sturdy door wedge. It has a solid heel block for durability, a low 4 mm toe tip that slides cleanly under doors, and a hollow foot cavity with a parametric internal bridging angle so it prints with no supports and no holes in the bottom. - 180 × 57 × 95 mm
- 5 mm walls, 30° internal overhang angle
Customize it in your browser This model is fully parametric. Change length, width, height, wall thickness and the overhang angle. Open it in the free OpenSCAD Playground, change the numbers and export your own STL: Open it in OpenSCAD Playground Source The OpenSCAD source and the rest of my models are on GitHub: github.com/SinaChavoshi/3d_printer_agentic_models Designed with AI assistance in OpenSCAD.
Descripción original del autor, publicada en Printables.
