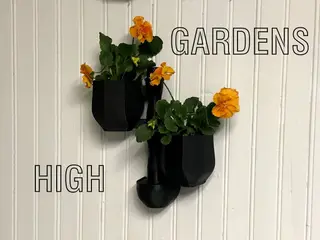

HIGH GARDENS - Stackable Plant Vases

High Gardens purpose is to grow more plants on your living (empty) space. A garden tower balance itself with the vases spread around to distribute the weight. Designed for plants that enjoy a define wet and dry cycle. Also easy to water, the excess water of one plant cascade down to the next and keeps dripping plates to a minimum. The system has been printed and tested and the tower remains strait and firm thanks to the conic interlock.

To get started first you pick a style. There are lots of options. Pick between 5 forms and 3 different sizes. Each model is named after a famous flower. You can choose the Violet, the Tulip, Daisy, Orchid or the Camelia. All of them work with each other.

Second, when picking a plate, choose one that will fill up that blank space at home. Pick one that wraps around that living room corner or one that follows the shape of the table. Also you can see a couple extensions and the water reservoir that makes life easier

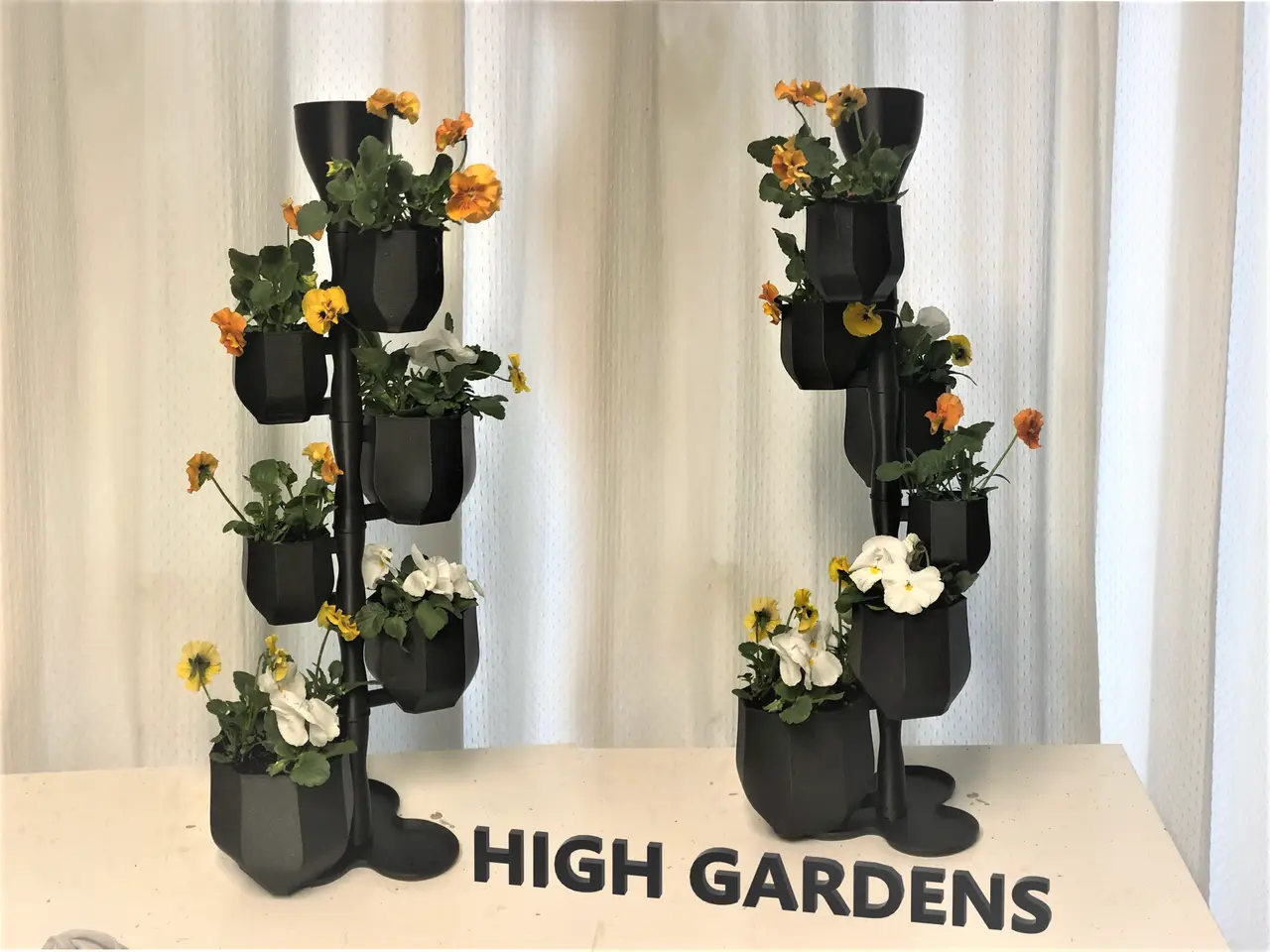

There are many possible combination and maybe you end up with something like this

Or like this,

maybe that.

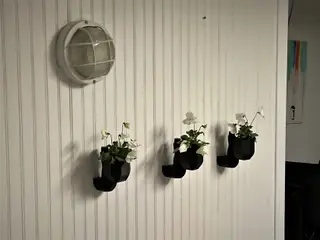

Upgrades. April 10 - Wall support added to the family.

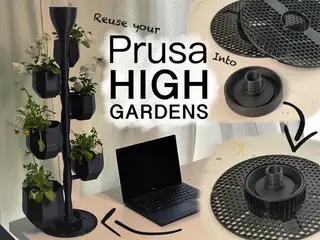

April 22 - Create a Prusa Mount plate. It fits your old spools to be reuse as base support for a tall tower.

Reality Check Here as some tips to have a successful system: - Use a Big plate for a big tower. - Use high drainage soil.

Customization Options Parametric Options All vases on this project were generated with the same base file but different parameters. Please, change it in very small increments. (more parameter are hidden too) Also, plates can be any shape you want with Fusion file provided named ‘Plates.f3d’

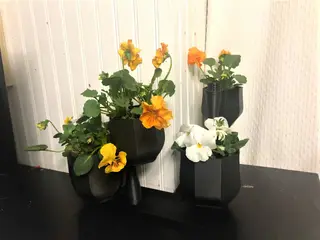

Printing Settings Works with all filament. Print at 0.2mm layer for Vases and 0.3mm layer for plates (use variable layer height and save printing time) 15% Infill. there is so little! Paint Support as Shown > Each Vase takes between 4 to 10 hours Prints are Prusa ASA or PLA Galaxy black. Small, Medium and Large Tulip Vases showing. Cheers. Updates April 12 - Thicker plates (v1); thicker custom plates April 22- Wall mounted is reservoir compatible, slotted holes for easy levelling. We need more plants ! Plants decrease allergies, control humidity, purify the air, provide basic medicine, make you relax , they help with sleep, relief stress, they also promote heeling, mental and emotional Health. Wow!
