HiFiBerry Touch

Hi Everyone,

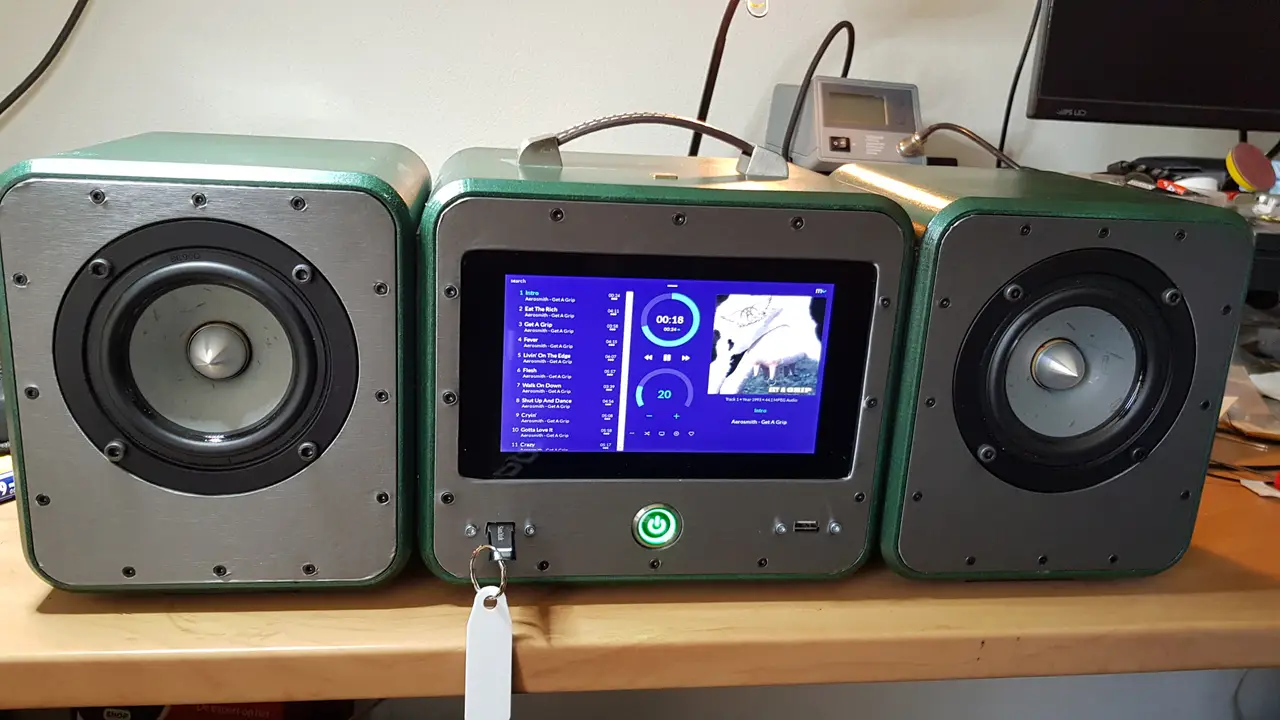

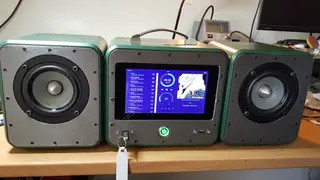

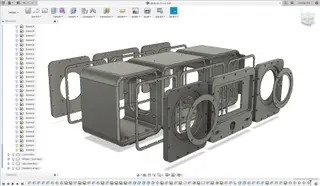

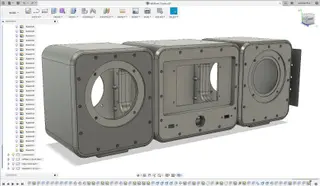

Time for my next project to publish. It's called: HiFiBerry Touch. This Boombox is designed in Fusion 360. It contains a 24V 12000 mah rechargeble battery and MoOde audio software.

https://moodeaudio.org/

Please press on the Like button?

Parts needed:

Raspberry Pi 3B or 3B+ Raspberry Pi 7 inch touchscreen Hifiberry AMP2 Micro SD card class 10 wires Speakers https://www.rumoh.eu/speakers/tangband/fullrange/1204/tangband-w4-1320sif?c=450

LEORY 4 Inch Speaker Vibration Plate https://www.aliexpress.com/item/LEORY-4-Inch-Speaker-Vibration-Plate-Diaphragm-Loudspeaker-DIY-Bass-Speaker-Vibrating-Membrane-Passive-Woofer-Diaphragm/32817907239.html?spm=a2g0s.9042311.0.0.27424c4dqI1foE

M3 Allen bold 16mm and 20mm DIN912 https://nl.aliexpress.com/item/50-PCS-M1-6-M2-M2-5-M3-M4-M5-M6-DIN912-Grade-12-9-allen/32963722509.html?spm=a2g0s.9042311.0.0.27424c4dauAmzX

M5x40 bold

XT60 connectors https://www.aliexpress.com/item/20pcs-lot-XT30-XT60-XT90-Yellow-Battery-Connector-Set-4-5mm-Male-Female-Gold-Plated-Banana/32772937597.html?spm=a2g0s.9042311.0.0.27424c4d9pKK1k

22mm 24V locking on off switch https://nl.aliexpress.com/item/22mm-Waterdichte-Vergrendeling-Rvs-Metalen-Lamp-LED-Licht-Hoorn-Power-Drukknop-Auto-Auto-Motor-Start-PC/32965098660.html?spm=a2g0s.9042311.0.0.27424c4dauAmzX

Switch socket https://nl.aliexpress.com/item/16-19-22mm-schakelaar-socket-base-metalen-knop-schakelaar-speciale-base-lijn-lengte-15-cm/32950419902.html?spm=a2g0s.9042311.0.0.27424c4dauAmzX

ORICO CAT6 Ethernet Extended Cable https://www.aliexpress.com/item/ORICO-CAT6-Ethernet-Extended-Cable-Lan-Cable-Male-to-Female-Rj45-Ethernet-Lan-Network-Cable-Adapter/32950741598.html?spm=a2g0z.10010108.1000001.12.337147d5b6wl8Y

HiFi audio wire https://www.aliexpress.com/item/CHOSEAL-DIY-HIFI-Loud-Speaker-Audio-Cable-Wire-Oxygen-Cooper-Reinforce-Shield-Speaker-Wire-50-100/32905959405.html?spm=a2g0s.9042311.0.0.27424c4doIFyKu

3 color/ Zinc Alloy Leather handle and Knobs https://www.aliexpress.com/item/3-color-Zinc-Alloy-Leather-handle-and-Knobs-for-furniture-cabinet-chest-drawer-suitcase-handle-96mm/32876454526.html?spm=a2g0s.9042311.0.0.27424c4du28SUG

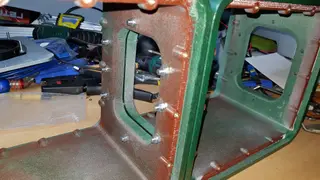

M3x5mm brass knurls https://www.aliexpress.com/item/100Pcs-M3x5mm-L-5mm-OD-Metric-Threaded-Brass-Knurl-Round-Insert-Nuts-LXM/32693221350.html?spm=a2g0s.9042311.0.0.27424c4dOXHtK5

24V 12000mah battery pack with charger https://www.aliexpress.com/item/LiitoKala-24v-12ah-lithium-ion-battery-24-v-12ah-15A-BMS-250w-24v-350w-battery-pack/32800180612.html?spm=a2g0s.9042311.0.0.27424c4d9BbguT

30CM USB 2.0 A Male to USB2.0 A Female Extension https://www.aliexpress.com/item/30CM-USB-2-0-A-Male-to-USB2-0-A-Female-Extension-Molded-Panel-Mount-Extention/32573641881.html?spm=a2g0s.9042311.0.0.27424c4dWDbEFF

DC10-100V LCD Acid Lead Lithium Battery Capacity Indicator https://www.aliexpress.com/item/DC10-100V-LCD-Acid-Lead-Lithium-Battery-Capacity-Indicator-Digital-Voltmeter-Voltage-Tester-with-Temperature-Display/32838087345.html?spm=a2g0s.9042311.0.0.27424c4dqhoeHc

300W 9A buck converter https://www.aliexpress.com/item/1pcs-Adjustable-power-supply-module-12-a-step-down-turn-12-v-24-v-LED-driver/32694238253.html?spm=a2g0s.9042311.0.0.27424c4d1a3APB
