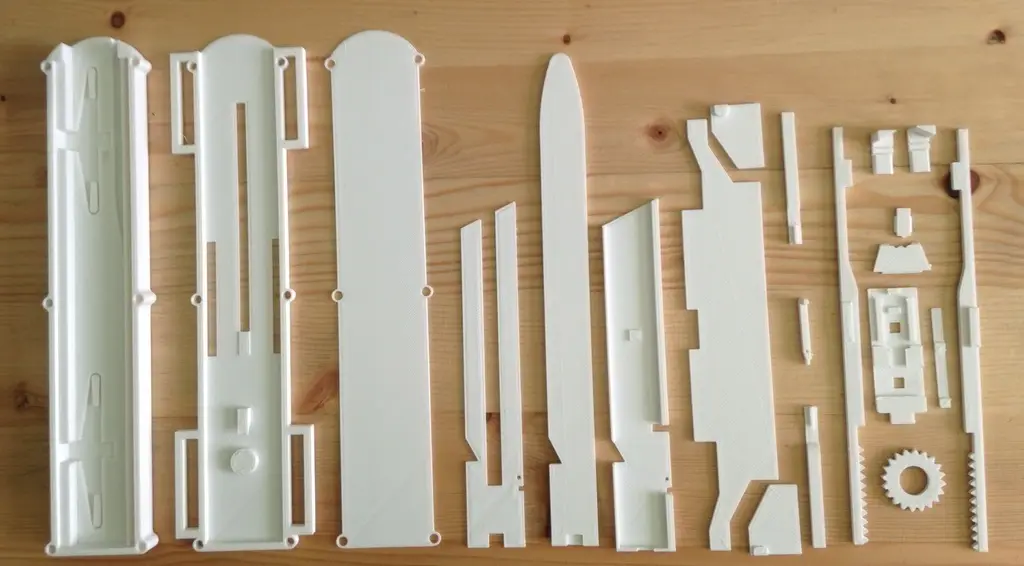

Archivos (23)
- blade.stl STL
- blade_shell_bottom.stl STL
- blade_shell_switch.stl STL
- blade_shell_top.stl STL

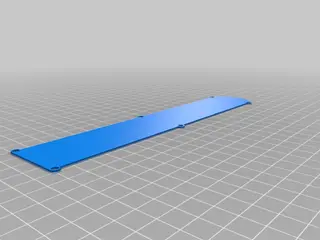

- cover.stl STL
- cover_with_buttonhole.stl STL
- gear_left_with_gearstring.stl STL
- gear_right_with_gearstring.stl STL
- gearwheel.stl STL
- main_switch.stl STL

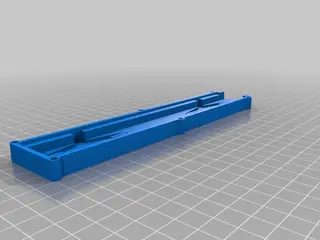

- mainbody.stl STL
- mainbody_switch_back.stl STL
- mainbody_switch_front.stl STL
- middle_part_1.stl STL
- middle_part_1_with_button.stl STL
- middle_part_2.stl STL
- middle_switch_1.stl STL
- middle_switch_2.stl STL
- slider_part_1_back.stl STL
- slider_part_1_front.stl STL
- slider_part_2.stl STL
- slider_part_2_two_parts.stl STL
- top_body.stl STL
- Categoría
- Cosplay y props
- Formatos
- STL
- Descargas
- 1,700
- Publicado
Sobre este modelo
I tried (and stil trying) to create a working hiddenblade from Assassin's Creed for my cosplay.
I followed the topic 'hiddenblade' now for quite a while and I think the design from imdeepainreborn is great! -> youtube.com/watch?v=BFviA8Y_WCk&t=184s
So I took some of his ideas and created this one here :)
It is still in progress but at this point it is working passably! I will try to update it regularly and I will also add more details in future.
instruction video: https://youtu.be/_YZ1rFiWkig
-> unfortunately the assembly of the blade casing isn't shown, because the battery of my camera went low an I recognized that to late :/
Either way the assembly of the blade case is the hardest (in my opinion) and i don't have a good workflow for this. It is try and error ;)
I also added parts for a 'button' version. This allows you to activate the machanism with a button (you can still use a string!). Just use these parts:
- middle_part_1_with_button

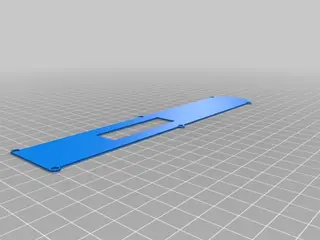

- cover_with_buttonhole
All in all you need definitely PATIENCE! I hope you are able to get yours working ;)
You will need some extra things to make the hiddenblade work:
- small rubber bands
- paper clip
- 6 screws (M3x18) with nuts
for the assembly:
- super glue
- sand paper
