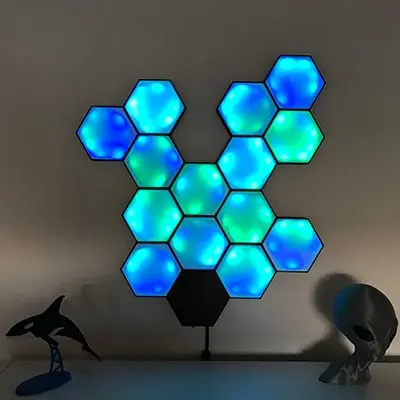

Hexagon LED wall lamp
por Jan Grønkilde en Thingiverse

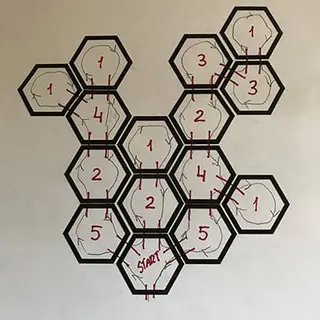

I used a 5M WS2812B 5050 RGB LED Strip and it is controlled via an ESP8266 CP2102 Development Board with WLED installed. It is run by a 5V 10A separate power supply. 20-04-2021. Diagram has been added. I have not done any programming on the board...Just flashed WLED on to it and then viola. Pls...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Jan Grønkilde.
Archivos (7)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 8,408
- Publicado
Sobre este modelo

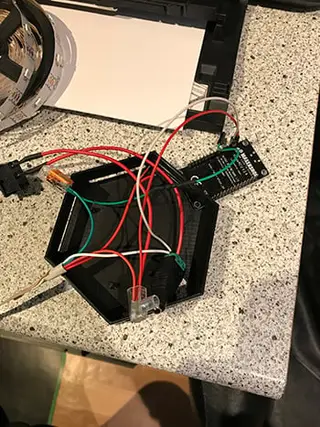

I used a 5M WS2812B 5050 RGB LED Strip and it is controlled via an ESP8266 CP2102 Development Board with WLED installed. It is run by a 5V 10A separate power supply. 20-04-2021. Diagram has been added. I have not done any programming on the board...Just flashed WLED on to it and then viola. Pls. see the link: https://www.youtube.com/watch?v=9d29SBWA4Qs A few vids. https://www.youtube.com/watch?v=oD7h4XXqHnw https://www.youtube.com/watch?v=NozXLjphmHs If you are considering making this lamp, then please leave a picture in "Post a make" so other people can enjoy your work.
Descripción original del autor, publicada en Thingiverse.
