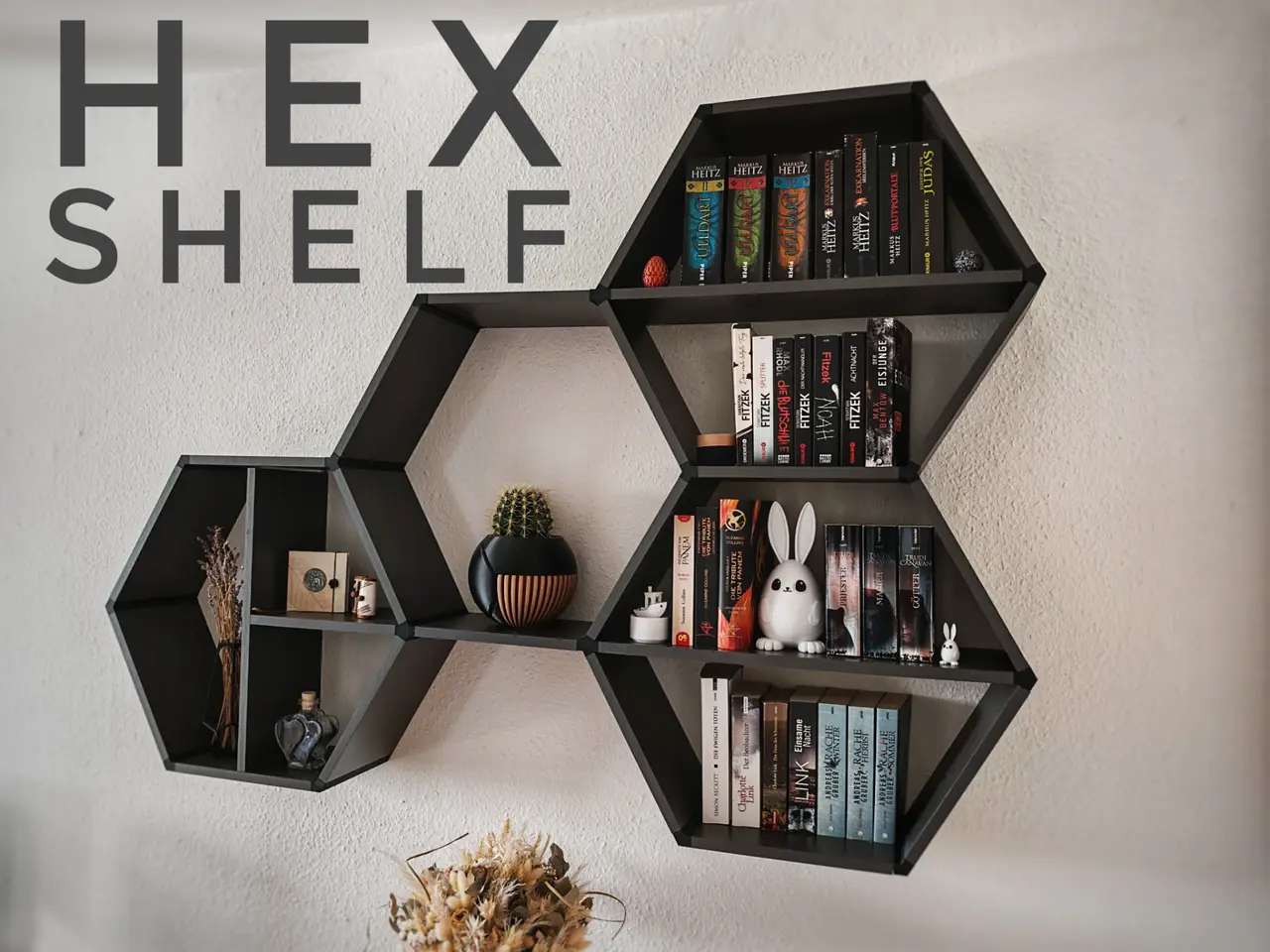

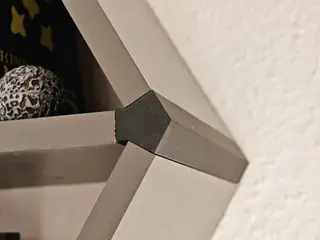

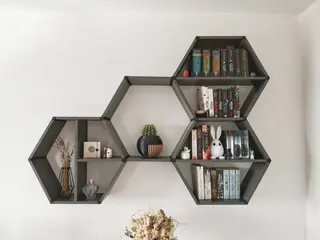

Hex Shelf – Modular Wall System with Seamless Printed Connectors This fully customizable hexagon wall shelf system combines the warmth of wood with clean 3D printed corner connectors for a minimalist, seamless look. Only the connectors and rails are printed – the shelves are made from standard 200 mm × 16 mm wooden boards, which slide into place using a clever snap-fit system. The layout is entirely up to you: by mixing 2-way, 3-way, 3-way horizontal, and 4-way connectors, you can build any hexagonal design you like. Each joint consists of two printed parts — a mount base (which can be wall-mounted) and a snap cap (which clicks into place once all boards are inserted). A printable drill guide is included to ensure perfect alignment of all screw holes.

Boost Me🪵 Materials & Parts (for the shown setup) Wood boards:

- 22 × 275 × 200 × 16 mm

- 2 × 566 × 200 × 16 mm

- 1 × 508 × 200 × 16 mm

Printed parts:

- 44 × rail

- 9 × 2-way mount base

- 9 × 2-way snap cap

- 3 × 3-way mount base

- 3 × 3-way snap cap

- 2 × 3-way horizontal mount base

- 2 × 3-way horizontal snap cap

- 3 × 4-way mount base

- 3 × 4-way snap cap

- 1 × drilling guide

Screws:

- 88 × 4×20 mm countersunk wood screws or BHCS

- ~10 × 4.5×60 mm countersunk wood screws + wall plugs (for mounting the bases)

Optional:

- A printable shelf board version is included if you're overflowing with filament — but wood is strongly recommended for rigidity, aesthetics, and practicality.

🛠 Assembly Instructions

- Print the drilling guide and use it to mark and drill the rail holes at the ends of each board.

- Attach the rails using the 4×20 mm wood screws.

- Lightly insert a mount base (e.g. a 2-way base) onto the rails of your starting board.

- Hold the board up to the wall, level it carefully (a smartphone app works great), and press a 4.5×60 mm screw through the mount base to mark the wall position.

- Take it down, drill the hole, insert a wall plug, and screw the mount base to the wall.

- Slide the board back into the mounted base using the rails — it should lock firmly into place with the built-in push pin system.

- Continue corner by corner, building outward. Use a level to keep consistent 30° angles.

- Once all board slots are filled at a connector, press the snap cap on until it clicks into place.
