HEQ UAV G-Port FPV Gimbal Bench Stand
por GhostPainBrain en Thangs
A versatile bench-testing stand for the HEQ UAV G-Port gimbal system, designed as an enhanced remix of the original G-Port holder shared by HEQ UAV. While the manufacturer’s model supports only the gimbal itself, this upgraded version expands functionality to accommodate a complete FPV bench-test se
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a GhostPainBrain.
Archivos (8)
- HEQ_GPort_Stand_Top.stl STL · 536 KB
- HEQ_GPort_Stand_Top.step STEP · 1,2 MB
- HEQ_GPort_Stand_Top_AntennaMount.stl STL · 260 KB
- HEQ_GPort_Stand_Top_AntennaMount.step STEP · 265 KB
- HEQ_GPort_Stand_Pillar.stl STL · 99 KB
- HEQ_GPort_Stand_Pillar.step STEP · 9 KB
- HEQ_GPort_Stand_Base.stl STL · 382 KB
- HEQ_GPort_Stand_Base.step STEP · 390 KB
- Categoría
- Tecnología
- Formatos
- STL, STEP
- Descargas
- 4
- Publicado
Sobre este modelo

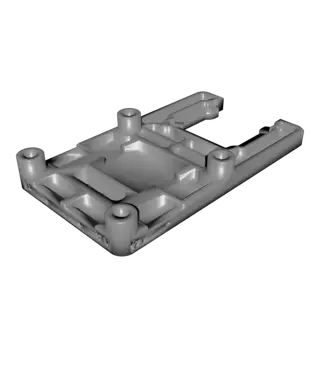

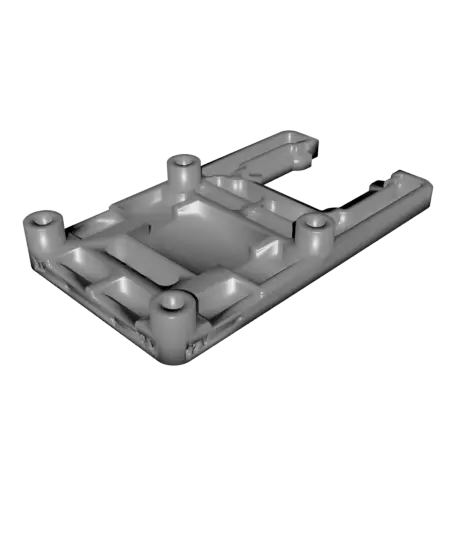

A versatile bench-testing stand for the HEQ UAV G-Port gimbal system, designed as an enhanced remix of the original G-Port holder shared by HEQ UAV. While the manufacturer’s model supports only the gimbal itself, this upgraded version expands functionality to accommodate a complete FPV bench-test setup.

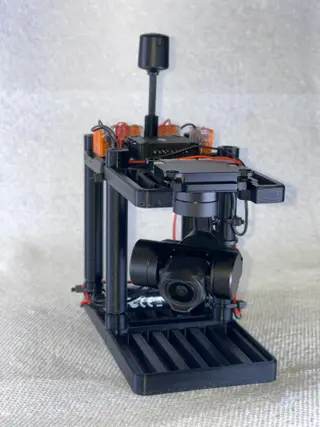

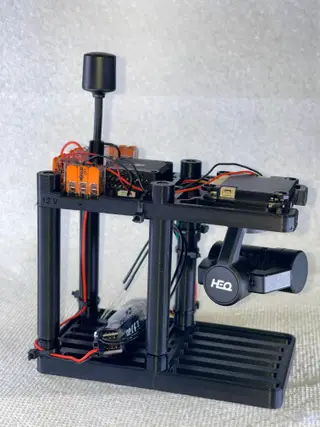

This stand provides secure mounting for: G-Port 3-axis gimbal Video transmitter (VTX) VTX cooling fan DJI O3 antenna Receiver

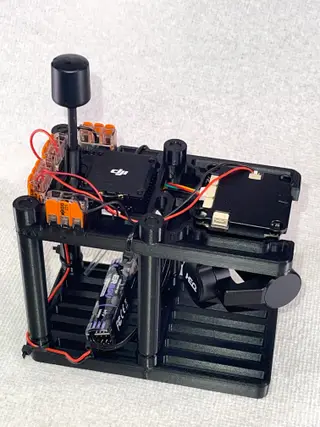

Integrated slots for WAGO 221 connectors make power organization simple and clean. The design supports dedicated 5V and 12V distribution which makes it perfect for experimenting, troubleshooting, or validating camera and transmission systems away from your rover/airframe.
Whether you're building, tuning, or testing FPV hardware, this stand keeps your entire G-Port system neatly arranged and easily accessible on the bench.

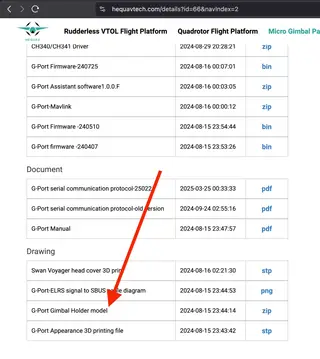

The original design shared by HEQ UAV can be found here: https://www.hequavtech.com/details?id=66&navIndex=2
Descripción original del autor, publicada en Thangs.
