Helping-hands plate feet

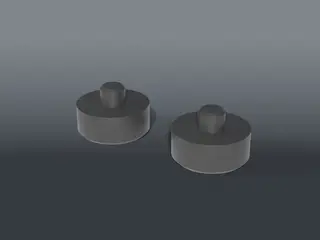

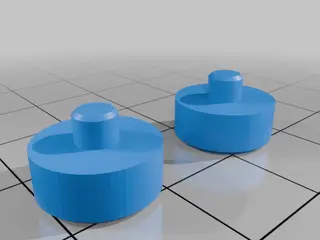

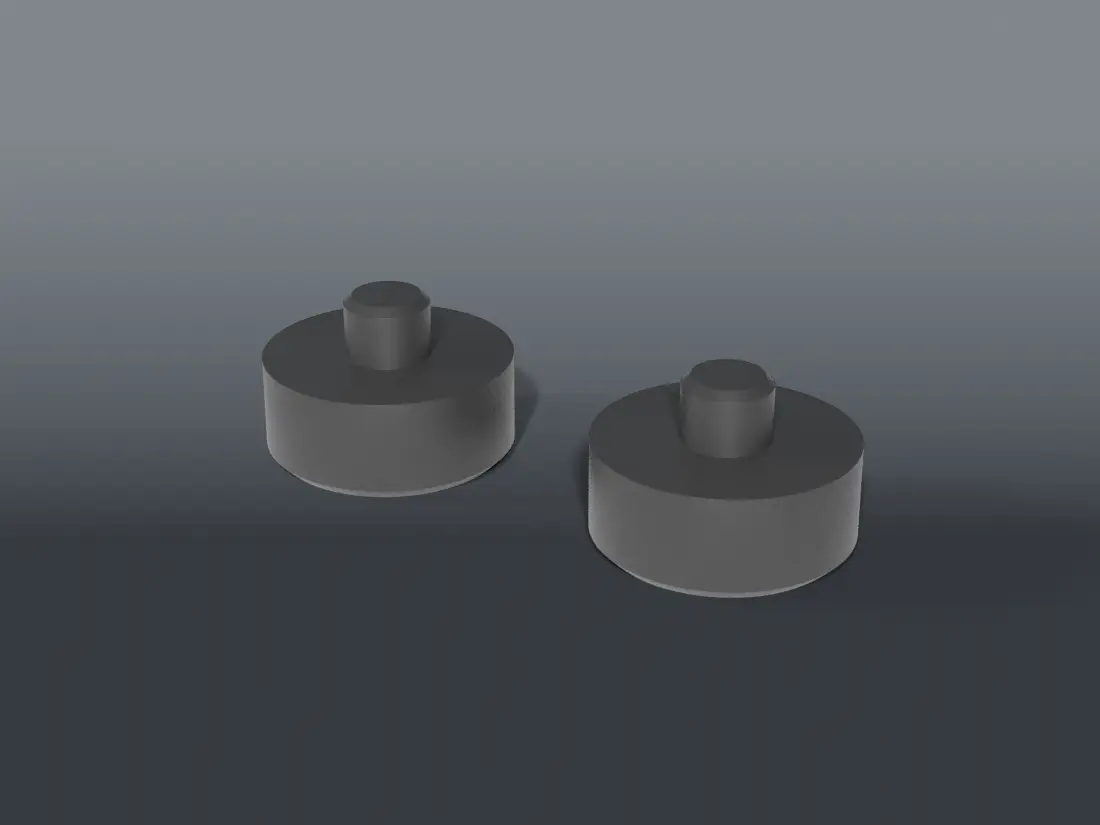

Helping-hands plate feet Pegged TPU replacement feet for a helping-hands base plate that arrived with a foot missing. The stock feet are glued over two holes in the plate. These press into the holes instead, so no glue is needed and they come back out. Parts PartFileSizePrint Feethelping_hands_feet.scadtwo feet, ⌀12 × 5 mm pad + ⌀4.1 × 3 mm peg×1 plate — TPU 95A, pads down, no supports Peg couponcoupons/peg_fit_coupon.scadpegs 3.8 / 3.9 / 4.0 / 4.1print first if your holes differ, ~1.3 g TPU Sized from the plate - Hole: 3.83 mm, calipered. - Peg: 4.1 mm. On the coupon, the 4.1 peg pressed into the 3.83 hole best: TPU squeezes in over the hole and grips. The peg is 3 mm long, and has a small chamfer at the tip so it finds the hole. - Foot: 5 mm tall with a ⌀12 pad, with a small chamfer on the bottom edge so it doesn't curl or catch. - Two feet, one per hole.

Recommended print settings SettingValue MaterialTPU 95A Layer height0.2 mm Walls3 Infill100% — solid feet don't squash unevenly SupportsNone Parametric OpenSCAD source, render scripts and every revision: https://github.com/IamMrCupp/3d-printer-models/tree/main/helping-hands-feet These files are release helping-hands-feet/v1.0.0 — rendered from source and mesh-validated in CI. Newer versions, if any: https://github.com/IamMrCupp/3d-printer-models/releases?q=helping-hands-feet
