Heavy Duty Wall Hook
por 3DtoD en Printables
a strong, durable wall-mounted hook designed to securely hold tools, gear, cables, and everyday items.
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a 3DtoD.
Archivos (1)
- Categoría
- Figuras y arte
- Formatos
- 3MF
- Descargas
- 1,927
- Publicado
Sobre este modelo

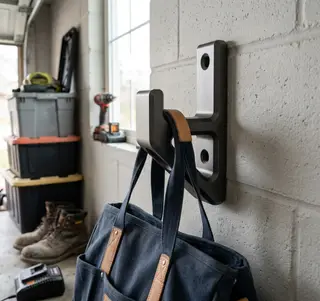

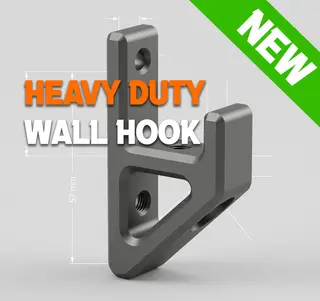

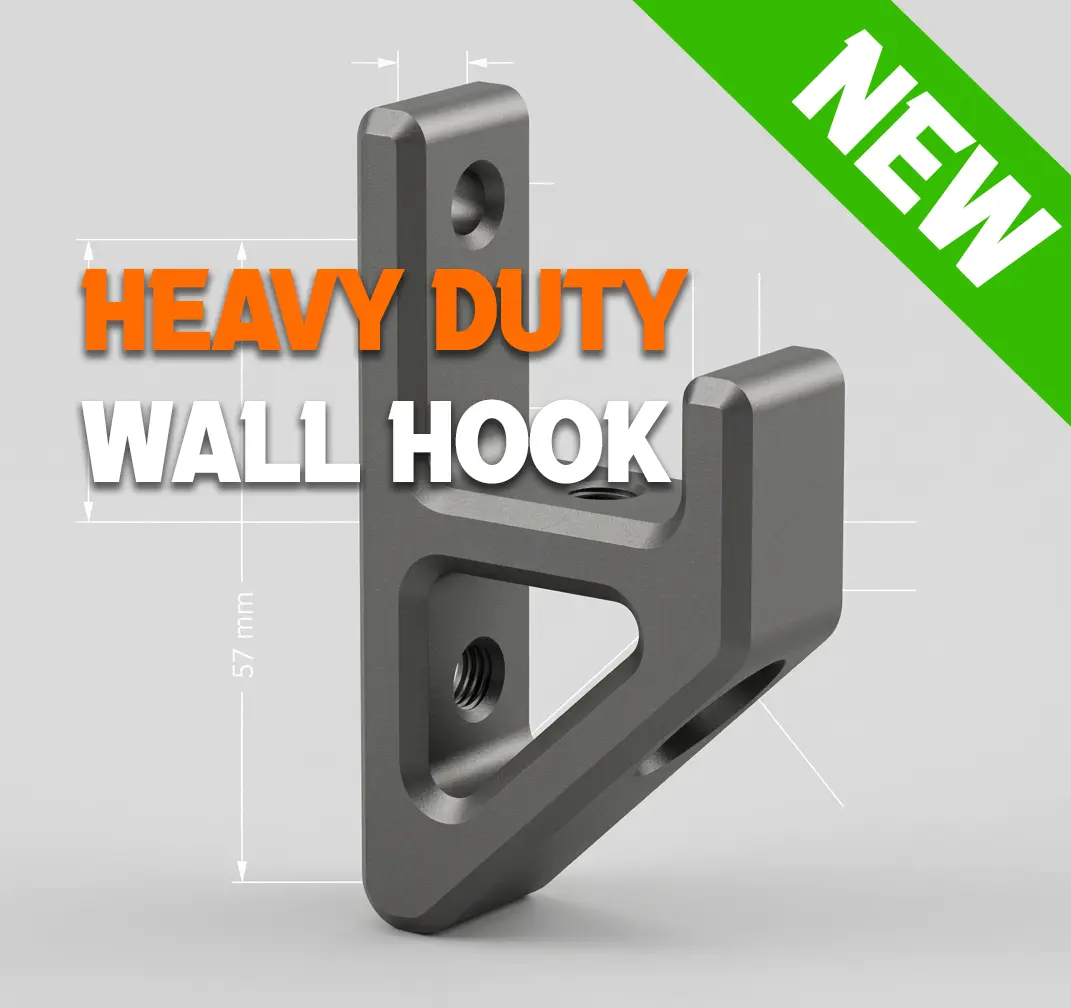

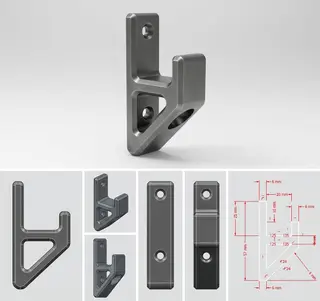

🛠 Bracket / Hook Profile (2D CAD Drawing & Dimensions) This model features a custom functional bracket/hook profile designed for strength, stability, and easy 3D printing. It incorporates a reinforced diagonal brace and precise mounting/channel dimensions.
📐 Technical Specifications & Dimensions - Total Height: 57 mm
- Base Wall Thickness: 6 mm (back wall)
- Bottom Base Offset: 6 mm
- Top Lip Width: 6 mm offset (20 mm channel distance to outer lip)
- Channel Depth / Drop: 10 mm top inner step
- Hook Feature Height: 6 mm front vertical stop
- Internal Opening Width: 25 mm inner section / 35 mm total channel reach
- Diagonal Brace Wall Thickness: 6 mm uniform angled support
🖨 Recommended Print Settings - Orientation: Print on its side to maximize layer line strength along the horizontal load path and angled support.
- Infill: 20%–30% (Gyroid or Grid recommended for functional support).
- Wall Loops / Perimeter: 3 to 4 walls for maximum structural rigidity.
- Supports: Not required if printed flat on its side.
Descripción original del autor, publicada en Printables.
