Heavy Duty Closet Pole Sockets

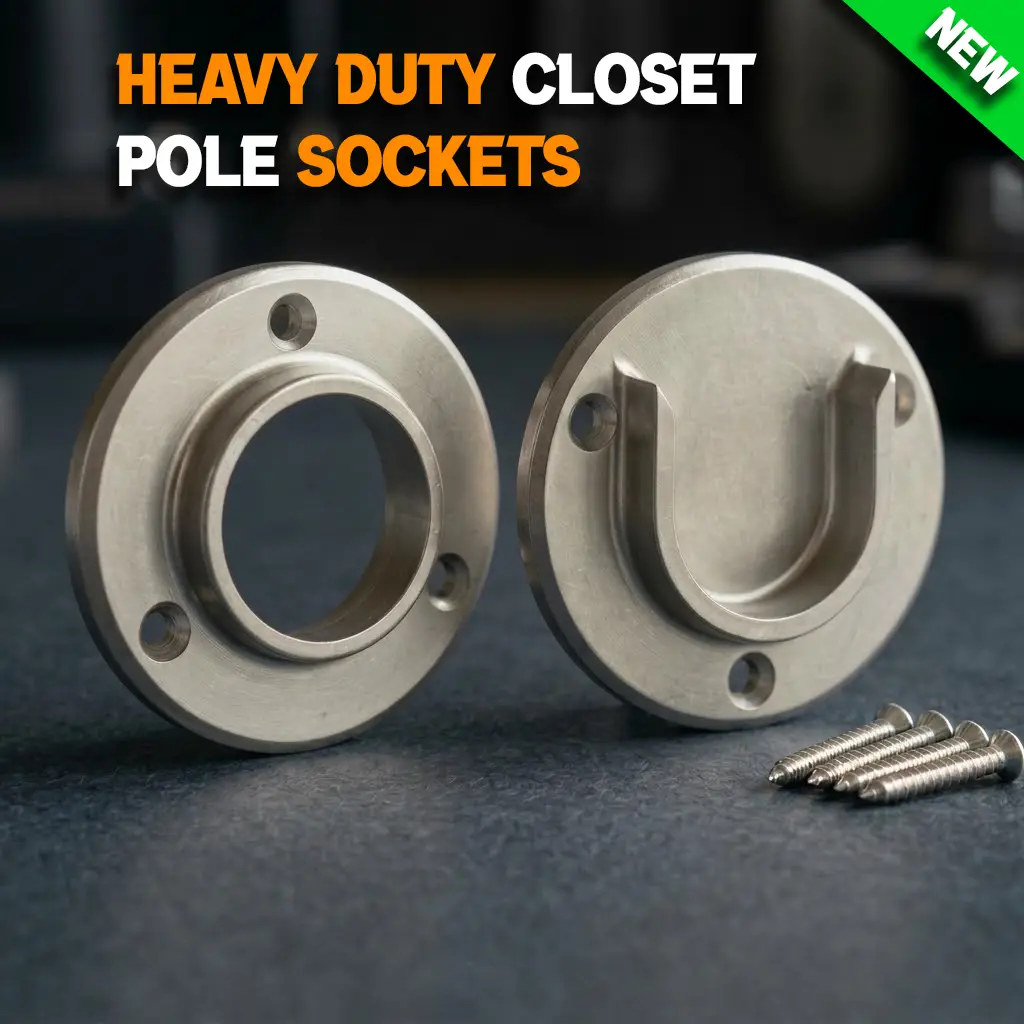

🧰 Heavy Duty Closet Pole Sockets A 3D-printable Heavy Duty Closet Pole Socket designed to support standard closet and wardrobe poles. This model provides a practical DIY solution for replacing or creating wall-mounted closet rod supports. The design features a compact circular mounting plate with three screw holes and a central pole holder designed around the common 1-1/4" to 1-5/16" (31.75–33.34 mm) closet pole diameter range. Whether you're repairing an existing closet, building custom storage, or creating a DIY wardrobe system, these sockets provide a simple and functional 3D-printable solution. ⚠ IMPORTANT: This is an independently created 3D model based on publicly available product dimensions and visual references. It is not an official Everbilt product or OEM replacement part. 3D-printed plastic has different mechanical properties from cast metal, so always test the printed socket carefully before relying on it for heavy loads.

📑 Table of Contents - 🧾 Technical Specifications

- 📏 Pole Compatibility

- 🛠 Design Features

- 🖨 Recommended Print Settings

- 🧵 Material Recommendations

- 📦 What's Included

- 🔩 Assembly & Installation

- 🧱 Wall Type & Mounting Hardware

- 💪 Strength & Load Considerations

- ⚠ Important Notes

- 🧪 Load Testing

- 🏠 Possible Uses

- 📋 Model Information

- ❤ If You Print This Model

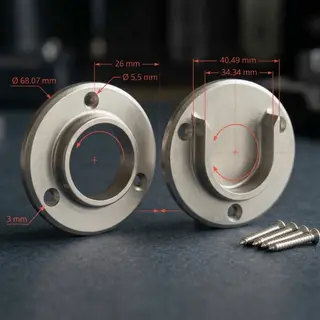

🧾 Technical Specifications Specification Details

🔵 Outer Diameter 68.07 mm / 6.807 cm

📐 Overall Depth 22.35 mm / 2.235 cm

🪵 Compatible Pole Diameter 31.75–33.34 mm

📏 Compatible Pole Size 1-1/4" to 1-5/16"

🔩 Mounting Holes 3

🧱 Mounting Style Wall Mounted

🛠 Design Type Closet Pole Socket

🧵 Recommended Material PETG

🖨 Supports Not Required

📏 Pole Compatibility The socket is designed around the common 1-1/4" to 1-5/16" closet pole range. Compatible Pole Diameter Ø31.75 mm – Ø33.34 mm Equivalent Imperial Size: 1-1/4" – 1-5/16" Before printing multiple sockets, I recommend measuring your actual closet pole to confirm compatibility. 🛠 Design Features 🔩 Three-Point Wall Mounting The circular mounting plate features three screw holes distributed around the socket to provide stable attachment to the mounting surface. 👕 Closet Pole Support The central socket is designed to accommodate a standard closet pole while keeping the rod securely positioned. 💪 Reinforced Construction The geometry uses a relatively thick mounting body to provide better rigidity than a lightweight decorative bracket. 📦 Compact Design The socket maintains a compact footprint while providing sufficient surface area for wall mounting. 🔄 Two-Socket System The design can be used as part of a traditional closet pole installation, with one socket supporting each end of the pole. 🖨 Recommended Print Settings The model was designed to be easy to print without supports. ⚙ Recommended Settings - 🧱 Supports: Disabled

- 🚫 Support Type: None

- 📏 Layer Height: 0.20 mm

- 🧵 Wall Loops: 2

- 🔳 Infill: 15–20%
