Headphone Holder - Desk Mounted

--- Hello fellow enthusiasts!

--- Please note that this free-to-download version is for personal use only. Commercial license only available via my Patreon! - ShapeMaven Patreon (https://www.patreon.com/ShapeMaven)

If you're feeling extra generous, a like and/or follow on my facebook or insta would be very much appreciated! - ShapeMaven Facebook (https://www.facebook.com/ShapeMaven) - ShapeMaven Instagram (https://www.instagram.com/shapemaven/)

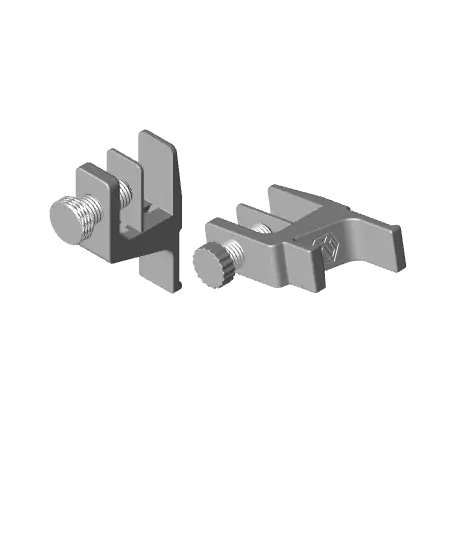

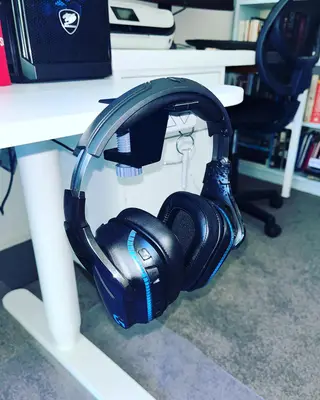

--- Design Overview --- This headphone holder was designed to be minimally intrusive to desk space, friendly to desk surface and stylish to the desk-sitters. It is a great way to organize your office, home office or gaming zone.

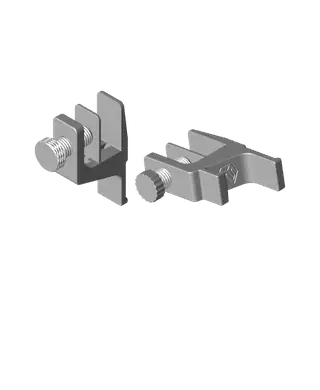

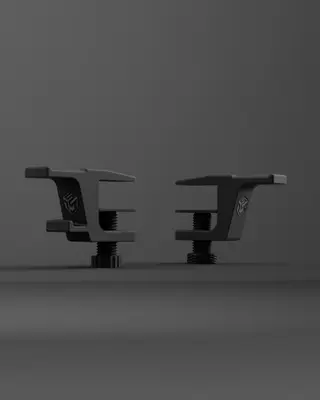

There are two different styles of bolts on offer for whichever you prefer!

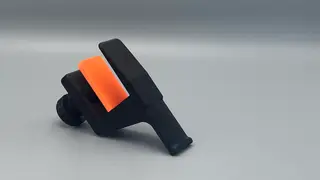

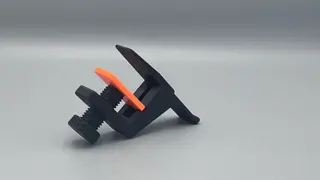

--- Features --- 🔹Moving platform between the bolt and the desk to prevent scratching the desk while tightening. 🔹Reinforced structure to enable tighter fastening without bending or warping the plastic. 🔹Gentle curved platform for headphones to rest nicely on. 🔹Gentle taper on top-of-desk side to minimize impedance of mount on desk space.

--- 3D Printing Advice --- 🔸Tried and tested with PLA and PETG with good results. 🔸Recommend printing the main component on it's side with supports for the guide channel. 🔸Both bolts come with two different clearances: 1. 0.2mm offset on vertical thread face and 0.1mm offset on angled thread faces (top and bottom). 2. 0.2mm offset on vertical thread face and 0.2mm offset on angled thread faces (top and bottom). 🔸The bolt with clearance (1) worked well for my Flashforge Guider IIs with 0.4mm nozzle and 0.18mm layer height. Reasonably tuned.

---
