HC-SR04 holder
por Wusaweki en Printables
Holder for HC-SR04 ultrasonic sensor. Mounting holes: distance 14 mm, M3 screws
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Wusaweki.
Archivos (1)
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

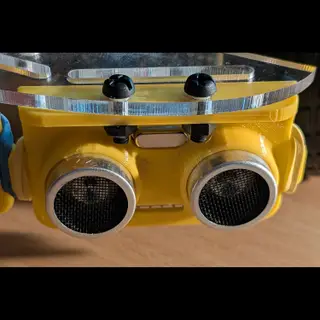

Most HC-SR04 ultrasonic sensor boards have tiny holes at the corners of the printable circuit boards that are hardly suitable for mounting (with screws). In addition, the various models (including clones) often have slightly different dimensions and hole patterns. Therefore, I decided to use rubber bands for fixation of the HC-SR04 PCB, which are flexible enough to accommodate minor mechanical variations, and designed a corresponding holder.
Mounting holes for : - distance 14 mm - 3.2 mm holes for M3 screws
PCB fixation with rubber band
