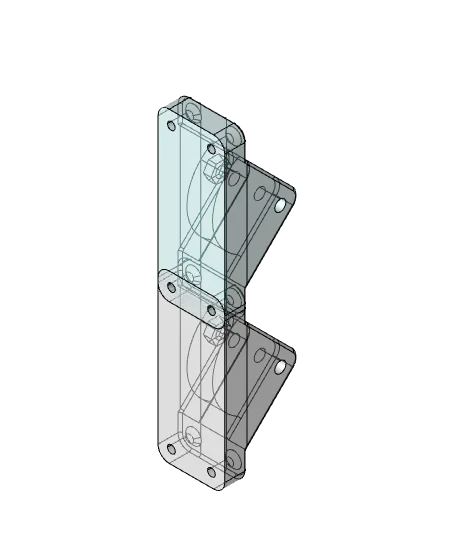

Hanging Bike Mount
Kept bumping into my other wall mounts, and they'd eventually pull out of the wall.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesCCNC
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Alec H.
Archivos (8)
- SuspensionMount-SinglePulleyRopeHold.step STEP · 255 KB
- SuspensionMount-RopeHold.step STEP · 134 KB
- SuspensionMount-HookPulley.step STEP · 48 KB
- SuspensionMount-Hook.step STEP · 34 KB
- SuspensionMount-BearingAdapter.step STEP · 6 KB
- SuspensionMount-PulleyWheel.step STEP · 15 KB
- SuspensionMount-DualPulley.step STEP · 305 KB
- SuspensionMount-SinglePulley.step STEP · 151 KB
- Categoría
- Herramientas
- Formatos
- STEP
- Descargas
- 32
- Publicado
Sobre este modelo

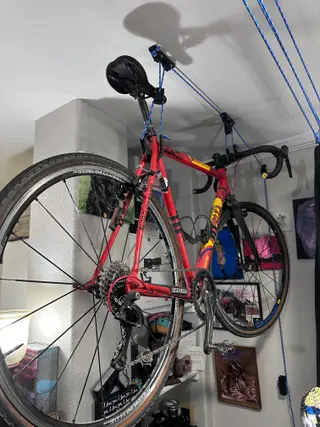

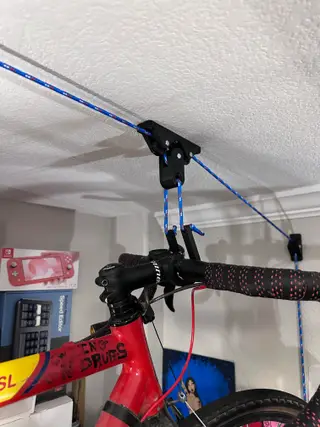

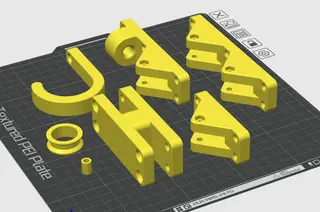

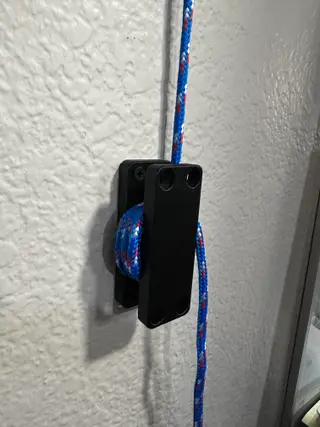

Kept bumping into my other wall mounts, and they'd eventually pull out of the wall. These are much better with saving space, and also split the weight of the bike across 16-20 screws vs 4, so I doubt these will be having any issues any time soon. You'll need 4x 6082RS bearings, 4x M5-30 screws/bolts, rope. If it has holes for screws, print it on it's side, this will maximize strength, I've included a picture of how the pieces should be laid out.
Print Settings 4 wall loops 50% cubic infill. Supports for the pulley pieces. 4x pulley wheel and bearing adapter./
Descripción original del autor, publicada en Thangs.
