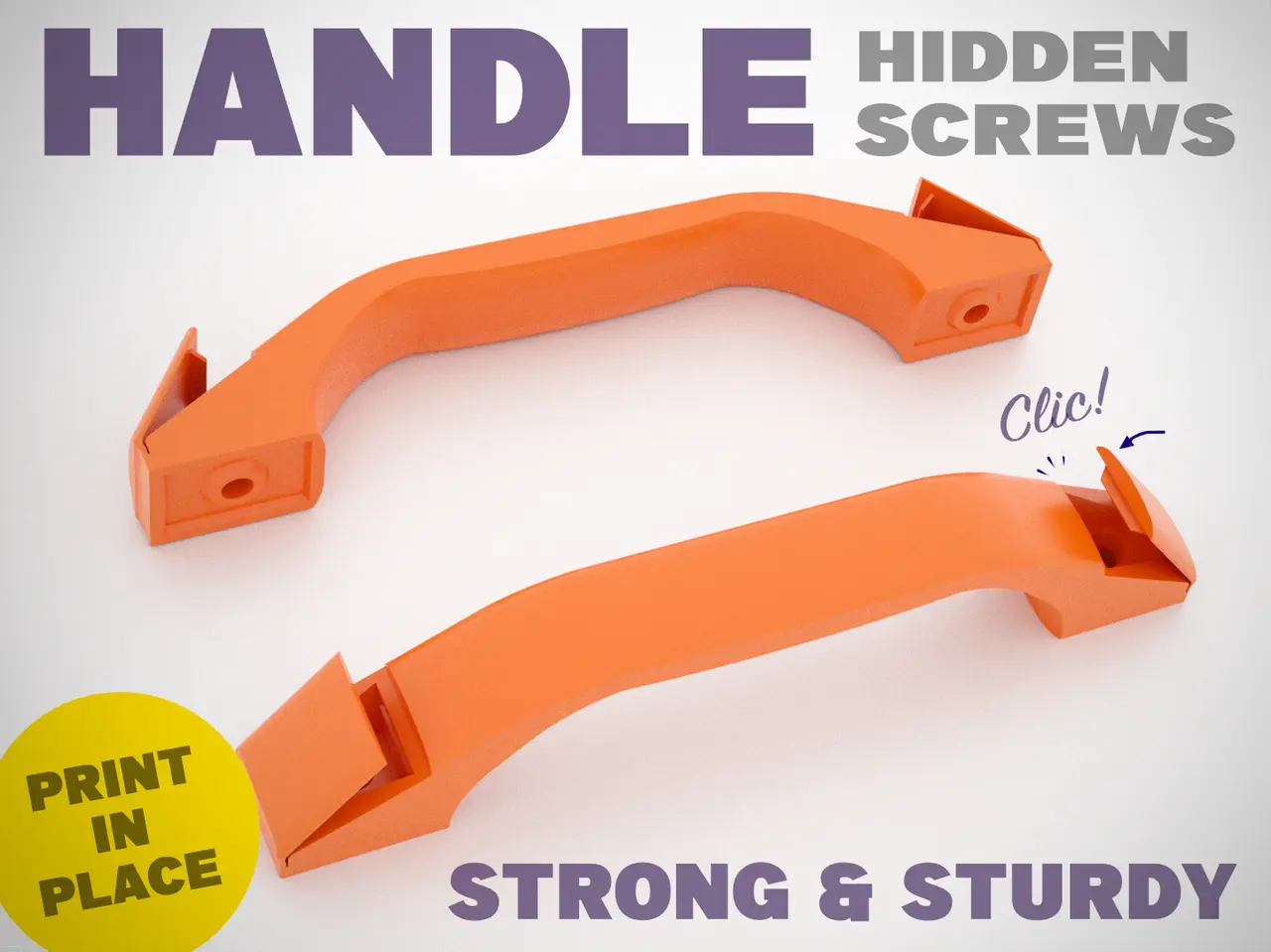

Handle with hidden screws — modelo 3D

Handle with hidden screws

por Sancho en Printables

Handle with hidden screws. Robust design with click-tab closure. Ideal for any application. Print in place, no supports.

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Sancho.

Archivos (2)
Categoría
Hogar
Formatos
STL
Descargas
2,687
Publicado

Sobre este modelo

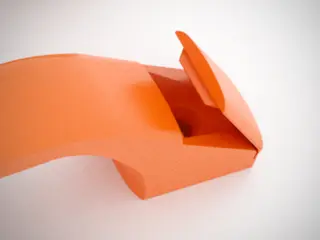

I made this handle curved-base to replace the original handles in my caravan. Printed in PETG, this piece is really strong and should withstand the elements. The original handles had a system to hide the screws using a flexible tab that closes with a click, and my design replicates this functionality. You just need to lift the tabs to insert and tighten the screws, and then close them and press until you hear the click. I created another flat-base model for other purposes as well. Printing instructions: - Material: I've only printed them in PETG for strength and durability. - Perimeters: Set a high number of perimeters to reinforce the piece. - Top and bottom solid layers: Increase the number of top and bottom solid layers, which in this case will be the sides of the piece, to add strength. - Infill: Use a sufficiently high infill percentage to ensure structural resistance. - Print in place: Ensure the printer is calibrated correctly to allow the flexible tab to move without adhering to other parts during printing. - Adjustments: The printing parameters can be adjusted depending on the intended use of the handle. For heavy-duty use, it is recommended to maximize perimeters, solid layers, and infill." - Print on its side, no supports needed. - I recommend setting a couple of millimeters of raft on the base to improve first layer adhesion and initial overhangs.

Descripción original del autor, publicada en Printables.
