Handle and extension mechanism for a hiking pole
por Piskunov Sergey en Thingiverse

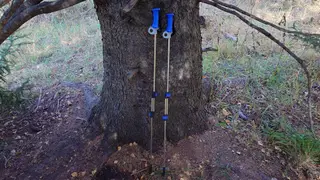

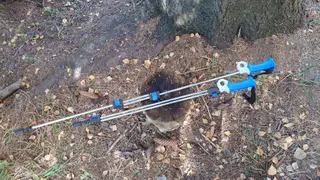

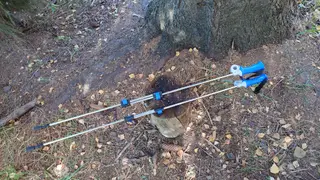

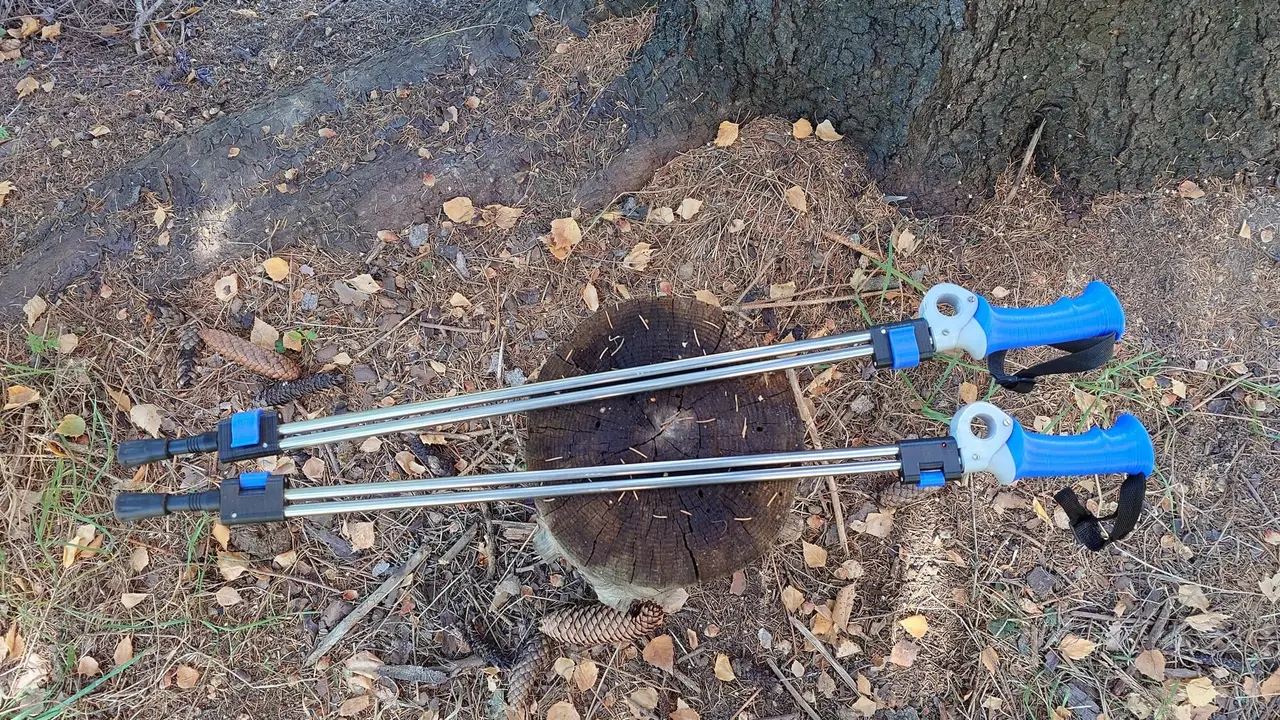

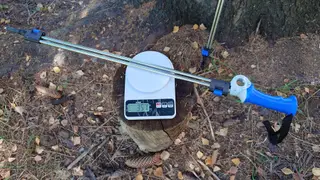

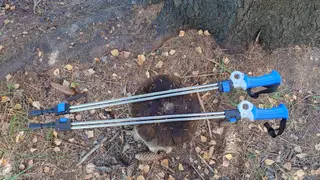

For the hiking poles, I designed an adjustable mechanism and several types of grips. The mechanism is intended for 10 mm diameter tubing, while the grips are designed for 10 mm, 16 mm, and 18 mm tubing. The trekking poles shown in the video are made from 10 mm stainless steel tubing. A 4 mm...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Piskunov Sergey.
Archivos (13)
- hiking_stick_handle10_1.1.STL STL · 13,1 MB
- hiking_stick_handle16_1.1.STL STL · 12,8 MB
- hiking_stick_handle18_1.1.STL STL · 12,8 MB
- hiking_stick_handle10_2.1.STL STL · 14,7 MB
- hiking_stick_handle16_2.1.STL STL · 13,9 MB
- hiking_stick_handle18_2.1.STL STL · 13,9 MB
- hiking_stick_handle10_3.1.STL STL · 17,6 MB
- hiking_stick_handle16_3.1.STL STL · 15,7 MB
- hiking_stick_handle18_3.1.STL STL · 15,7 MB
- hiking_stick_handle_3.2.STL STL · 183 KB
- hiking_stick_handle_.2.STL STL · 767 KB
- alpenstock1_2.STL STL · 361 KB
- alpenstock2.1.STL STL · 115 KB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
For the hiking poles, I designed an adjustable mechanism and several types of grips. The mechanism is intended for 10 mm diameter tubing, while the grips are designed for 10 mm, 16 mm, and 18 mm tubing. The trekking poles shown in the video are made from 10 mm stainless steel tubing. A 4 mm diameter aluminum rod is used for the hinges and locking components. The friction pad is cut from a piece of silicone hose with a wall thickness of 3 mm. The grips are secured using 3 mm bolts and matching nuts. To reinforce the hole in the grip, I added a bracket made from durable sheet metal. Two magnets 5mm*2mm. Video https://www.youtube.com/watch?v=wagMmZANo_0
