Handle - All Purpose, Four Sizes — modelo 3D

Handle - All Purpose, Four Sizes

por e&h Design en Thingiverse

Just a simple but sturdy and stylish all purpose handle (for furniture, cabinets, drawers, to carry boxes, electronic devices....) which comes in four flavors: - Small 100 mm (mounting holes: 85 mm) - Medium 120 mm (mounting holes: 100 mm) - Large 140 mm (mounting holes: 115 mm) - XLarge 170 mm...

Descargar los 4 archivos Ver en Thingiverse

4 archivos · 925 KB · se descargan uno tras otro

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a e&h Design.

Archivos (4)
Categoría
Para tu impresora
Formatos
STL
Descargas
109,467
Publicado

Sobre este modelo

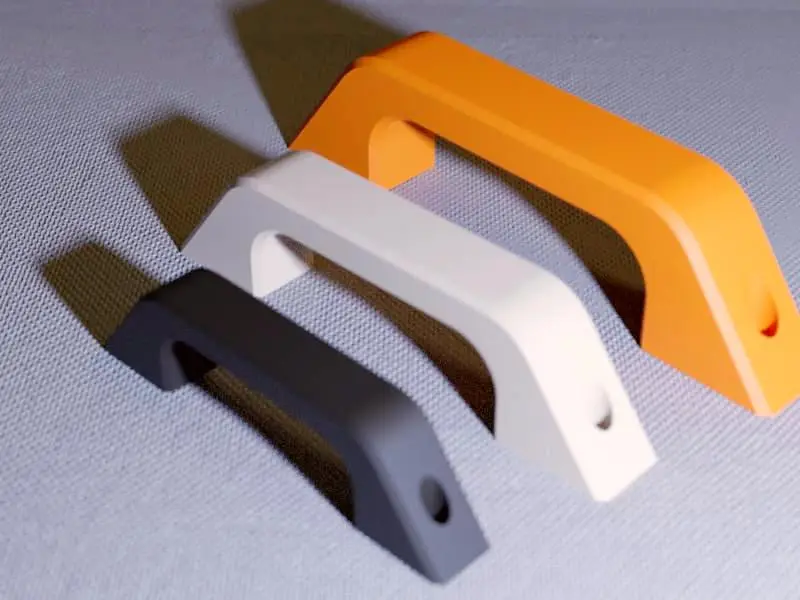

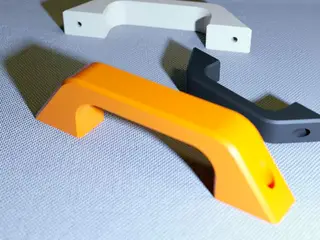

Just a simple but sturdy and stylish all purpose handle (for furniture, cabinets, drawers, to carry boxes, electronic devices....) which comes in four flavors: - Small 100 mm (mounting holes: 85 mm) - Medium 120 mm (mounting holes: 100 mm) - Large 140 mm (mounting holes: 115 mm) - XLarge 170 mm (mounting holes: 140 mm)

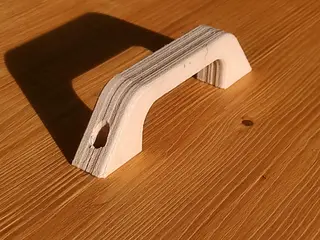

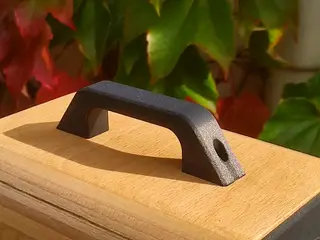

PRINTING. Should be a simple print. No support or attachment needed. Print at any resolution and with any infill (use 50+% if you want it to be really strong). - I use some cheap, easy to print carbon fiber PLA filament (looks great and adds that little extra strength - see photo above)but it also looks very good printed with Wood PLA filament (which in my experience is also sturdier than standard PLA -2nd photo above). Use two M3 - M4 screws to mount.

HOPE YOU LIKE IT AND IF YOU LIKE IT PLEASE LIKE IT. Thanks! PS.: ..and in case you like it you may also like some of my other designs. Enjoy! UPDATE 11 Oct 20: Added XLarge UPDATE 26 Oct 2020: On request, here is the distance between centers of screw / mounting holes. The distances are 140, 115, 100, and 85 mm for XL. L, M, and S sizes, respectively, and the handles can easily be scaled (within reasonable limits) to get exactly the size / distance you need. PPS.: This post may contain affiliate links and I may I get commissions for purchases made through links. You can support me by simply ordering through these links (and it won't cost you any extra).

Descripción original del autor, publicada en Thingiverse.
