Sobre este modelo
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:1750994.

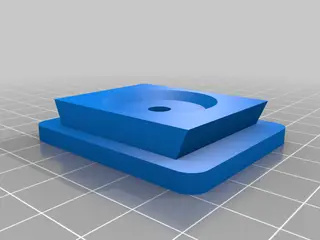

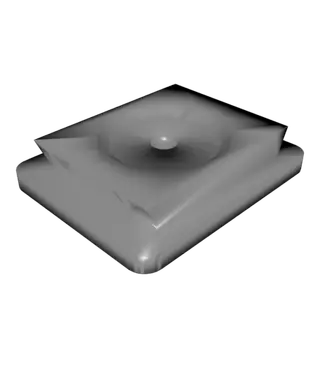

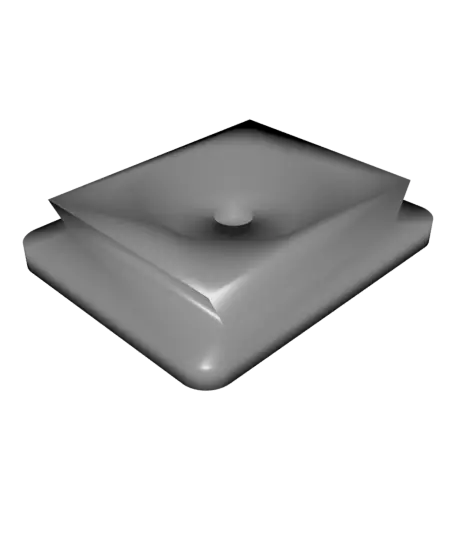

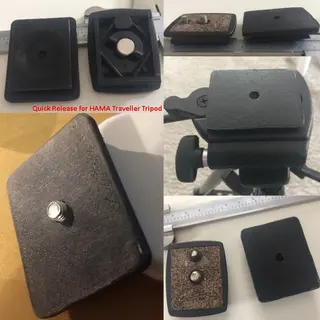

This is a simple quick release plate fro HAMA traveler tripods. Replaces HAMA Part # 00004192 (not available in US) https://www.hama.com/00004192/hama-quick-release-plate For "Traveller" tripods No. 4190/91/07/95 4107,-190,-191,-193,-194,-195
It works fine with my DSLR and even with a 400mm tele Needs a 1/4"-20 screw (I prefer brass 3/8" but Mod1 works with 1/2")
Print with 5 layers top and bottom and 5 perimeters or more for strength and rigidity I used a 30% star fill (slic3r) and printed as shown in the STL withouth supports or brim.
Customized version of http://www.thingiverse.com/thing:51653
Created with Customizer!

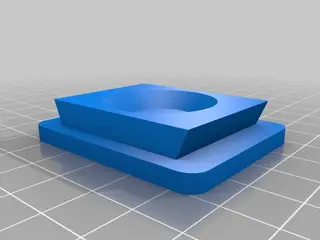

Mod1 has a "shallower" screw well to match larger screws that I bought (1/2")
Descripción original del autor, publicada en Thangs.
