Halloween pumpkin lamp

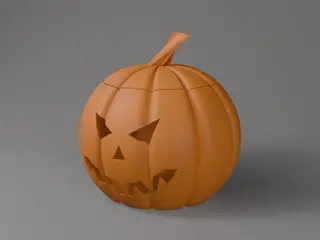

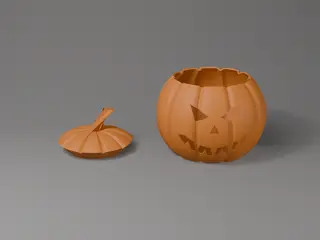

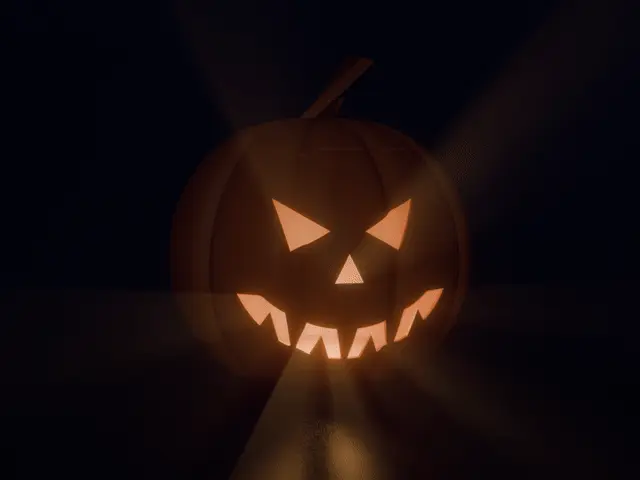

Spooky Jack-o'-Lantern with Lid – LED Pumpkin Lamp A classic carved Halloween pumpkin with an angry face, made for 3D printing. It has two parts: a hollow body and a lid with a twisted stem. Put an LED tealight inside, close the lid and the light shines through the eyes, nose and jagged grin. Both parts print without supports. Features - Two parts: the body and the lid. A standard LED tealight (Ø 38 mm) goes in through the top opening.

- Self-centering lid: the joint is a 45° cone, so the lid drops into place and sits straight. The clearance is about 0.4 mm.

- No supports needed: - The inside of the body has no overhang steeper than 45°.

- All face openings have arched or short bridged top edges, and no tooth hangs in mid-air.

- The lid prints standing on its flat bottom.

- Thin 1.6 mm walls, which is exactly 4 lines with a 0.4 mm nozzle. This saves filament and lets more light through.

- Flat, stable base about 68 mm across.

Dimensions Part Size

Body 103 × 104 × 73 mm

Lid with stem 71 × 71 × 41 mm

Assembled approx. 103 × 104 × 105 mm

Top opening approx. Ø 70 mm

Print settings - Material: PLA. Orange glows nicely, and translucent orange looks even better.

- Layer height: 0.2 mm. Use 0.12–0.16 mm for smoother curves.

- Orientation: print both parts as they come in the files, the body upright and the lid on its flat bottom.

- Supports: none.

Body - 2 walls (perimeters), which fill the 1.6 mm wall completely.

- 3–4 bottom layers.

Lid - 2 walls.

- 8–10 % infill, preferably Lightning. It supports only the domed top surface, which is all the lid needs.

- 4 top layers and 3 bottom layers.

Filament: about 65 g in total. The exact amount depends on your slicer settings. Assembly - Place an LED tealight (Ø 38 mm, battery powered) on the floor inside the body.

- Put the lid on. It centers itself.

Use LED lights only. Do not use a real candle in a plastic lantern.

Files - pumpkin_lamp_body.stl: the body

- pumpkin_lamp_lid.stl: the lid

The model was designed in Blender as a parametric Python script. Wall thickness, lid clearance and the size of the base can all be changed in the script.

License Creative Commons Attribution-NonCommercial 4.0 (CC BY-NC 4.0). You may print, share and remix this model for non-commercial use, as long as you credit the author. Selling the files or prints requires my permission; feel free to ask.
