HAFC V3 – Hackman Automatic Filament Cutter

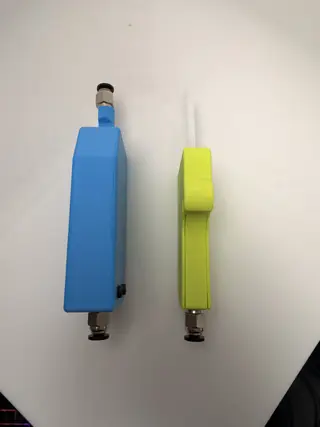

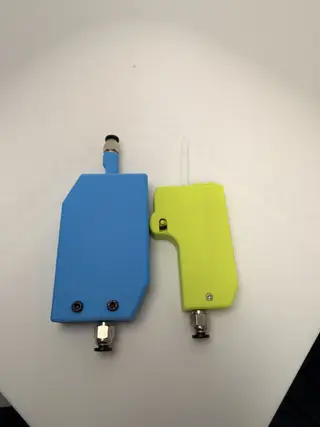

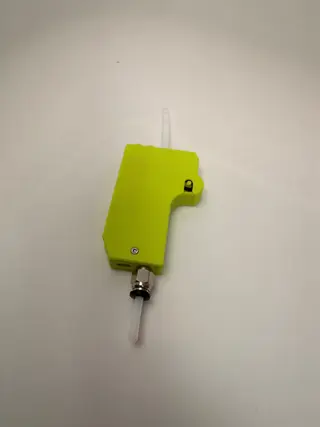

HAFC V3 HackMan Automatic Filament Cutter Smaller, more compact and more reliable! After the V2, I wanted to improve the design by making it more compact while keeping the mechanism simple and easy to assemble. The HAFC V3 is significantly smaller than the previous version, with increased trigger resistance to help prevent accidental activation. I've also simplified the assembly: the mechanism now requires only 2 screws, and most of the hardware from the V2 can be reused. What's New in V3? - More compact design – Significantly smaller than the V2.

- Improved trigger resistance – Helps prevent unintended activation.

- Simplified assembly – Only 2 screws required.

- Magnetic mounting – Uses 4 to 6 magnets.

- V2 hardware compatibility – Reuses the same spring, blade and PTFE fitting.

Hardware Required You can use a standard HAFC V2 hardware kit, which includes most of the components needed for this version. Qty Component

1 Bambu Lab filament cutter blade

1 Compression spring – 0.3 × 6 × 80 mm

1 M6 PTFE fitting

4–6 Neodymium magnets – 8 × 2 mm

2 M2 × 6 mm countersunk screws

If you already have a HAFC V2, you can reuse most of its hardware. Most V2 kits include 4 magnets. You can use those or add 2 more for the 6-magnet configuration. Where to Buy the Hardware HAFC V2 Hardware Kits – AliExpress I've selected several listings for the HAFC hardware kit. They contain the same type of components, so feel free to compare prices and shipping costs to find the best deal. Kit – Option 1 https://s.click.aliexpress.com/e/_c3ucUNjj Kit – Option 2 https://s.click.aliexpress.com/e/_c4LHD06l Kit – Option 3 https://s.click.aliexpress.com/e/_c3dssvGd Kit – Option 4 https://s.click.aliexpress.com/e/_c3yWFVRb Kit – Option 5 https://s.click.aliexpress.com/e/_c3V7Z8Dx Additional Magnets – Optional 8 × 2 mm Neodymium Magnets If you want to use 6 magnets instead of the 4 usually included in the V2 kit, you can find additional magnets here: https://s.click.aliexpress.com/e/_c3kujbIt M2 Screws – Required The HAFC V3 only requires 2 × M2 × 6 mm countersunk screws. https://s.click.aliexpress.com/e/_c4KCmK0D Important: Make sure to select M2 diameter and 6 mm length when ordering. Assembly & Installation The V3 has been designed to keep assembly straightforward, with fewer screws and a more compact mechanism. Before installation, check that: - The spring is correctly positioned.

- The Bambu cutter blade is properly installed.

- The mechanism moves smoothly and returns to its original position.

- The magnets are securely installed.

- The M6 PTFE fitting is correctly attached.

Test the cutting mechanism manually before using it with your printer. Feedback & Support If you print the HAFC V3, feel free to share pictures of your build or leave feedback in the comments. Your ratings, likes and downloads help support my work and future designs. Thanks for your support! Designed by Hackman3D Some links in this description are affiliate links. Purchasing through them helps support my projects at no additional cost to you.
