Hadley tripod adapter
por Gyoenastaader en Printables

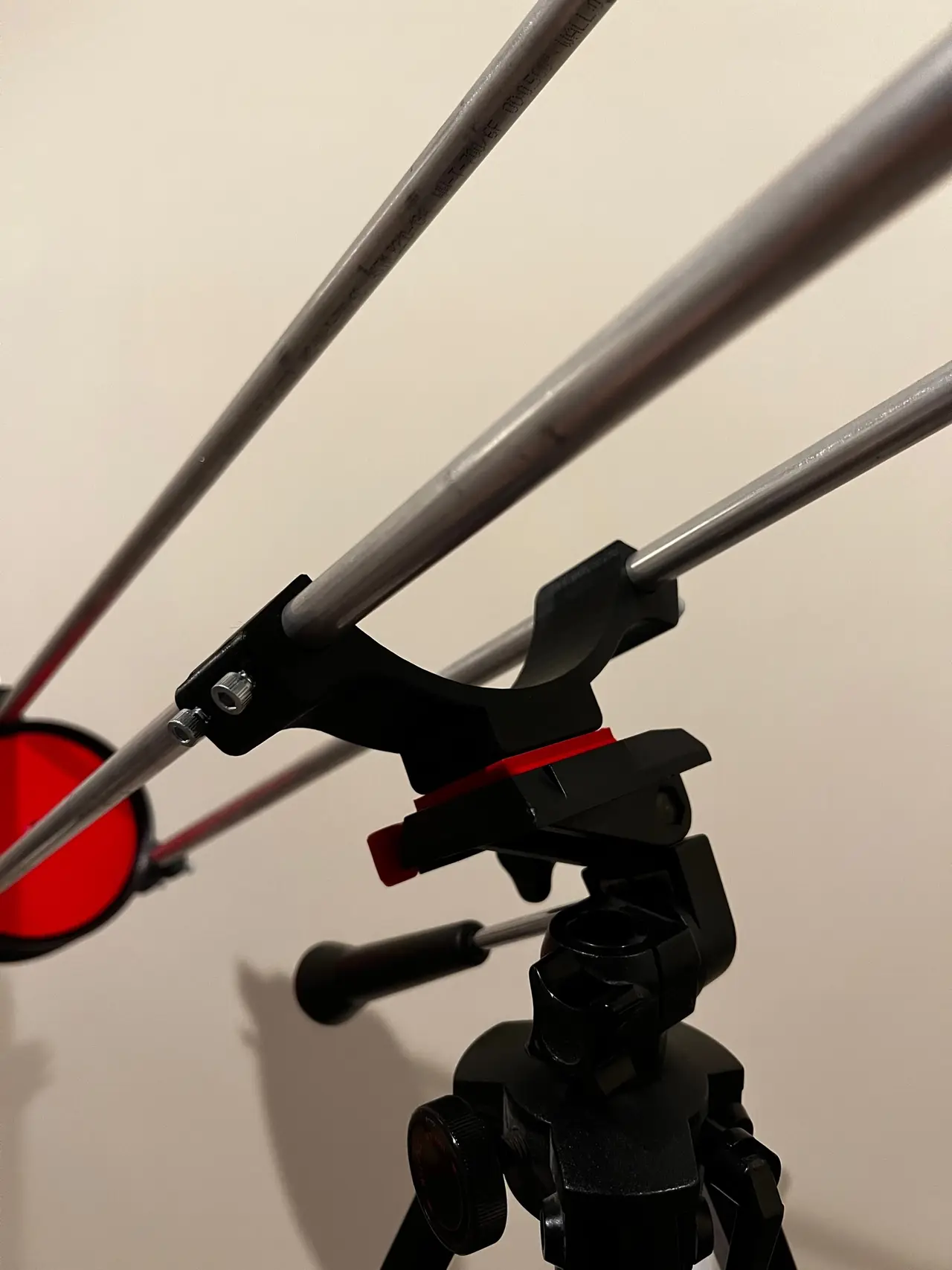

Adapter to mount the Hadley telescope to a standard tripod
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Gyoenastaader.
Archivos (9)
- tripod_bracket.stl STL · 173 KB
- tripod_adapter_40mmx40mm.stl STL · 33 KB
- tripod_adapter_38mmx38mm.stl STL · 33 KB
- tripod_adapter_44mmx44mm.stl STL · 33 KB
- tripod_adapter_42mmx42mm.stl STL · 33 KB
- tripod_adapter_48mmx41mm.stl STL · 33 KB
- tripodAdapter.stp STP · 26 KB
- tripod_bracket.stp STP · 195 KB
- tripod_bracket_adapter_0.3mm_PLA_MK3S_3h39m.gcode GCODE · 7,6 MB
- Categoría
- Educación
- Formatos
- STL, STP, GCODE
- Descargas
- 1,205
- Publicado
Sobre este modelo
Update September 12 2022: Added CAD Step files.
An adapter to fit onto a 42x48 tripod mount. Uses 8 10-24x0.5" screws and nuts. No supports required. Recommended infill of 20% for a rigid piece. May need some tape to shim the adapter connection to the tripod for a snug fit. A dobsonian or equatorial mount is strongly recommended, a standard tripod camera will work with the Hadley. Camera tripods tend to not be rigid or heavy enough to hold a telescope, however I used one with my Hadley for the first week for viewing the Moon. Update: Added many common quick release plate sizes. I have only tested the 42x48 size, please let me know if any size is too loose/tight.
Descripción original del autor, publicada en Printables.
