HackBox - Ethical Hacking Tool

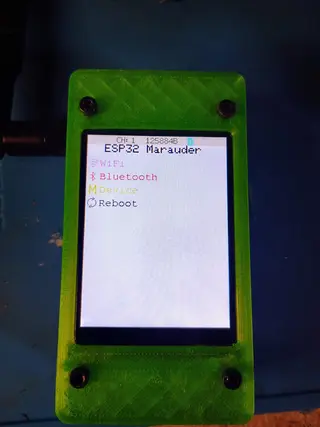

HackBox is an ESP32 CYD (Cheap Yellow Display) based wifi multitool that runs "Marauder" or any other firmware you load on it.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesPersonal Use Eridani Industries
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Eridani I.
Archivos (5)
- hackbox_rear_cover.stl STL · 91 KB
- hackbox_screen_spacer.stl STL · 42 KB
- hackbox_body_main.stl STL · 612 KB
- hackbox_front_cover.stl STL · 92 KB
- whole_model(not for printing).stl STL · 850 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 126
- Publicado
Sobre este modelo
HackBox is an ESP32 CYD (Cheap Yellow Display) based wifi multitool that runs "Marauder" or any other firmware you load on it.
The case has room for a GPS module that I will be adding in the near future. ___________ Assembly: -All hardware is M3
-Flash Marauder using the web flasher: https://fr4nkfletcher.github.io/Adafruit_WebSerial_ESPTool/
-Modify the ESP32 antenna to use an external one following this video by "Inovatrix". This is really simple as long as you don't scrape too hard. https://www.youtube.com/watch?v=o4mtrueU6eM
-Print 4x of the spacers to use behind the 4 screen M3 screws.
-Wire the 5V from the 18650 pack to the rear of the screen. S3 is positive. S1 is negative. (I used hot glue after soldering the wires to secure them)

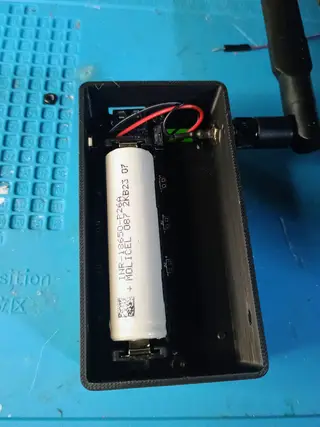

-Install the battery pack and antenna to the case.
-Install front cover and screen to the main body.
-Install Rear cover ___________
Parts list: -Esp32 CYD https://www.amazon.com/dp/B0D8W9DSYZ?ref=ppx_yo2ov_dt_b_fed_asin_title
-Any RP-SMA Wifi antenna
-18650 Battery Holder/Shield https://www.amazon.com/dp/B0CJR1Y967?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Descripción original del autor, publicada en Thangs.
