Sobre este modelo
3D view looks broken, but STL is OK.

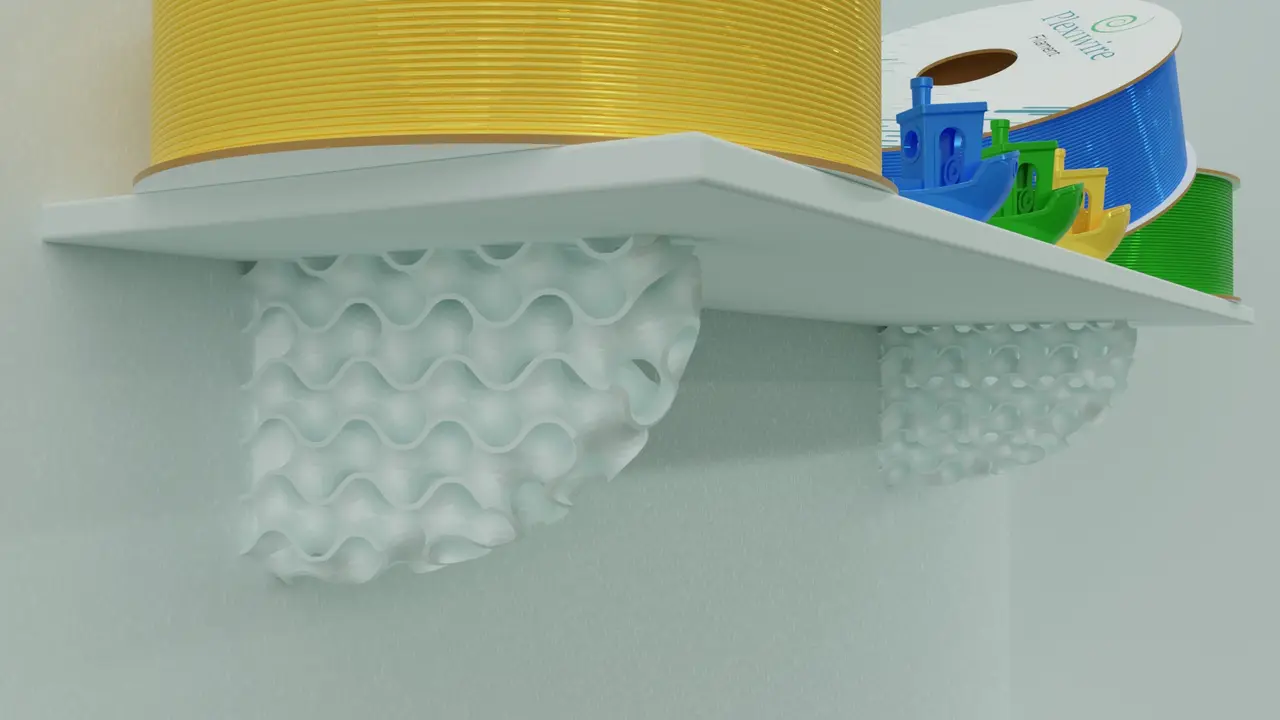

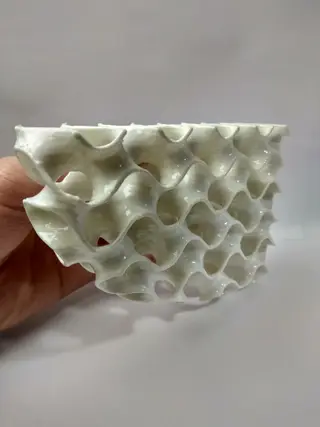

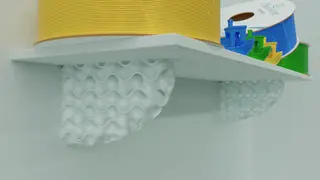

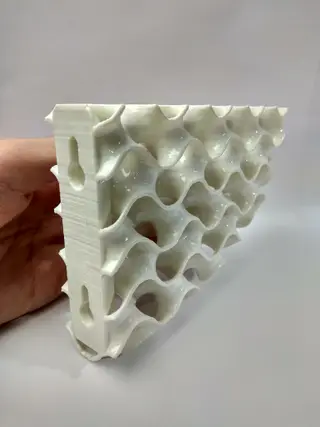

Very strong shelf holder, I loaded it 20kg. It is easy to put on 6-8mm dowels. The depth of the shelf is 16-20cm.
Сustomization

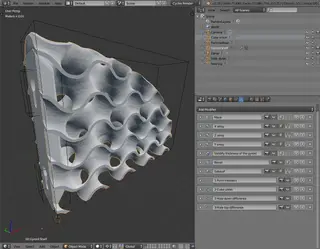

If you are familiar with Blender, you can customize the model to your liking. Look last screenshot: Three array modifiers allow you to make a grid of any size. Modifier solidify allows you to change the thickness of the walls of the gyroid (default 1.6mm). Subserf smoothes the grid. Boolean: 1 Form intersect - defines the outer edge of the entire gyroid. 2 Cube union - the back plate is like an ingot of gold. 3 Hole dawn differense and 3 Hole top differense - forms of holes for fastening. When done, select Gyroid Shelf and Export. That is, it is not necessary to apply modifiers.
