Gutter Cleaning Nozzle – Gardena Compatible — modelo 3D

Gutter Cleaning Nozzle – Gardena Compatible

por suit en Printables

Simple and easy print to get your gutters and drain pipes cleaned from leafes and needles.

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a suit.

Archivos (3)
Categoría
Jardín
Formatos
3MF, F3D
Descargas
3,522
Publicado

Sobre este modelo

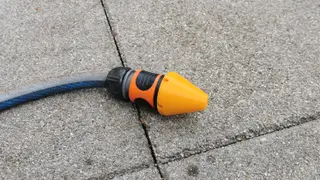

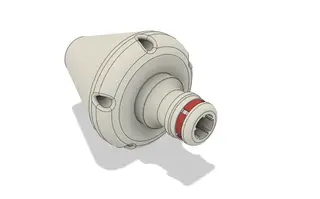

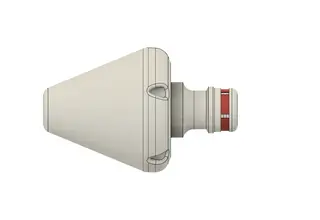

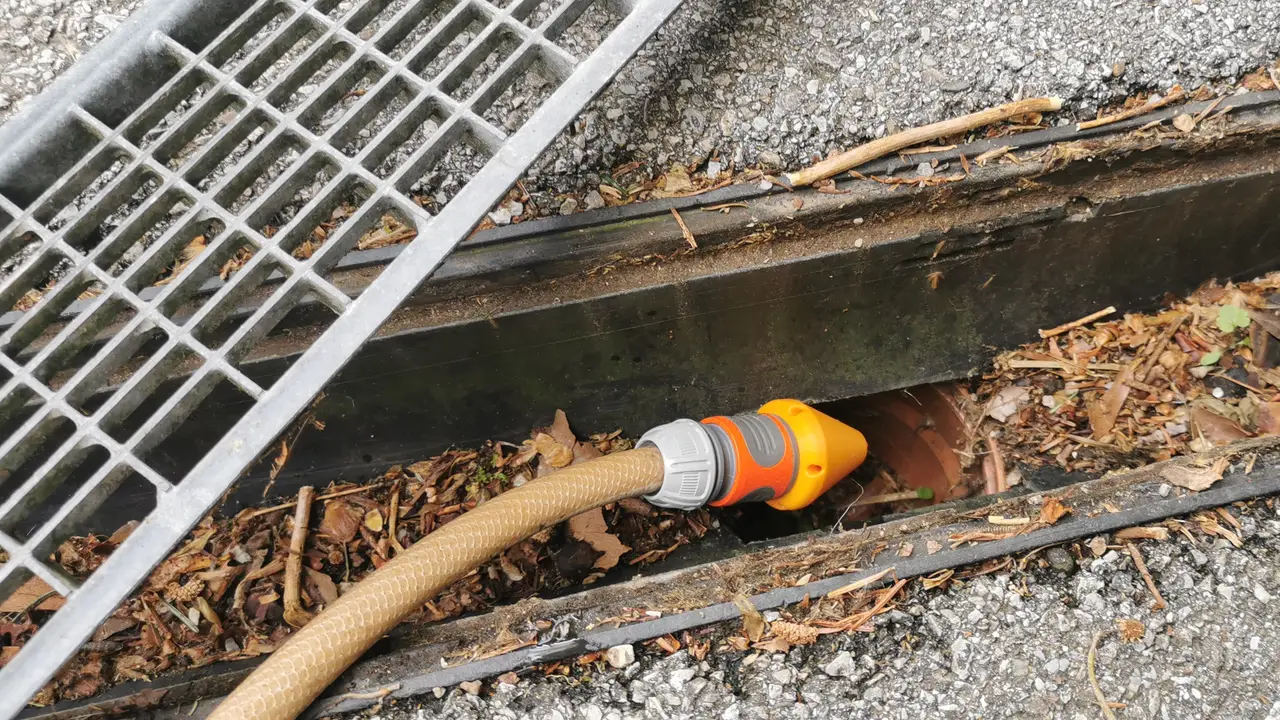

This compact and efficient cleaning nozzle (drain jetting nozzle) is designed for use with standard Gardena connectors. Perfect for cleaning gutters, channels and narrow drains.

Fair word of warning: don't plug on a hose and turn on the water, insert it in the gutter/drain first or you will get wet

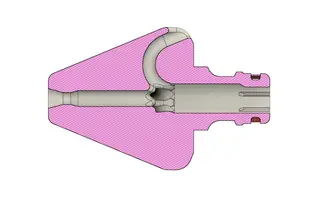

though the shape might look tempting: just don't :) Features: - 1 forward-facing jet for targeted cleaning - 5 rear-facing jets for propulsion and flushing debris - Low-profile design to fit into tight spaces - Inner ribs for increased strength - Integrated CAD-modeled support ensures perfect geometry for the O-ring sealing groove - Parametric .f3d source file included

Printing: - Print orientation: Upright - Walls: 3 with concentric top/bottom - Infill: 5 to 10 % gyroid - Supports: Normal supports with Honeycomb pattern up to 75° treshold with increased interface spacing

Assembly & post-processing: - Break the Part free from the support scaffold - After printing, use a flathead screwdriver to break out the supports from the O-ring channel. - Insert a standard gardena O-ring into the sealing groove. - Done – ready for action!

Descripción original del autor, publicada en Printables.
