Guitar Wall Mount

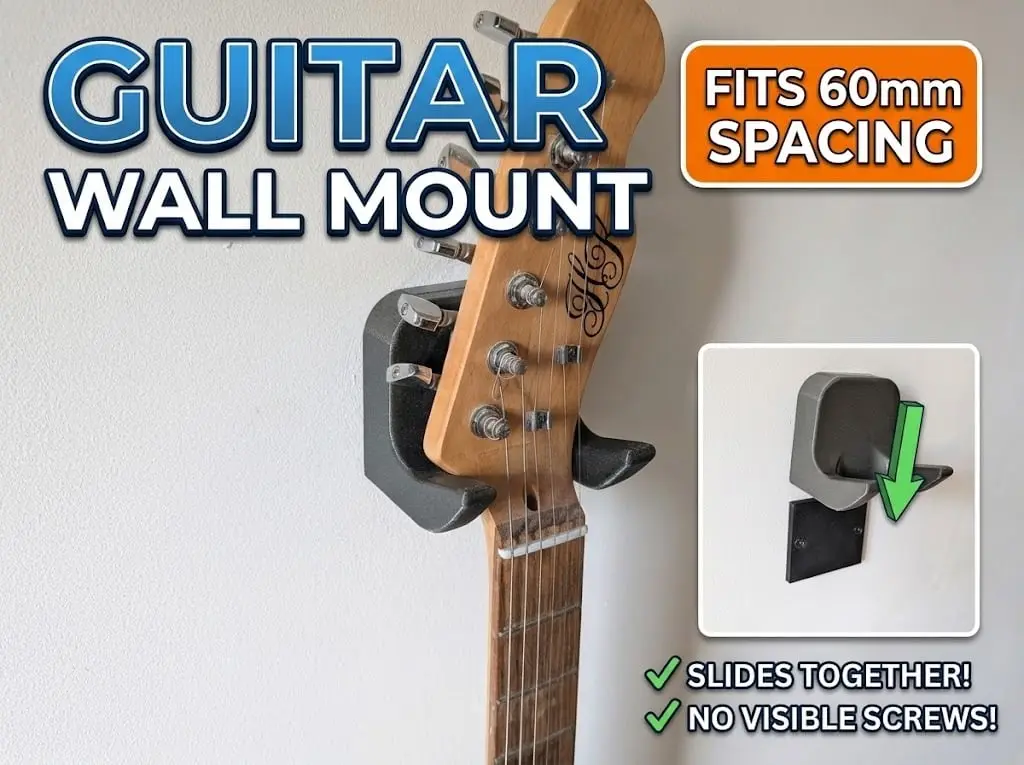

Modular Guitar Wall Mount A strong and sleek wall mount for your guitar. The design consists of two parts: a wall mounting plate and the guitar hanger itself. They slide together perfectly using a dovetail joint, which completely hides the mounting screws for a very clean look on your wall. Two Mounting Plate Variations Included: - 2-Hole Plate (Horizontal - 60mm): Features a 60 mm horizontal hole spacing. This is a very common standard size for small wall light fixtures and European junction boxes. It allows you to easily mount the hanger on existing holes without drilling new ones! - 3-Hole Plate (Triangle): Features three screw holes in a triangular pattern. Highly recommended if you are drilling fresh holes. The triangle formation is much better at catching the rotational moment/torque of a heavy instrument.

Print Settings & Recommendations Since this part will hold an expensive instrument, do not skimp on strength! - Orientation: Print the hanger flat on its back so the two prongs point straight up into the air. Print the wall plate flat on its back. - Walls / Perimeters: 4 to 6 walls (Perimeters are more important for strength than infill). - Infill: 30% - 50% Gyroid or Cubic. - Layer Height: 0.12 mm for cleaner finish on the curves. - Material: PETG and ABS is recommended, but PLA is also an option, mine is printed out of PLA. - Supports: Yes - Tree

Assembly Instructions - Secure the mounting plate to the wall using heavy-duty wall plugs and screws. Make sure it is leveled! - Simply slide the guitar hanger from the top down onto the wall plate's dovetail joint. It should click/seat snugly into place. - Hang your guitar!
