GRIZZLY - Handheld Game Console
Introducing GRIZZLY!
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesLICENSE
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a lean8086.
Archivos (13)
- battery-bracket-v1.stl STL · 18 KB

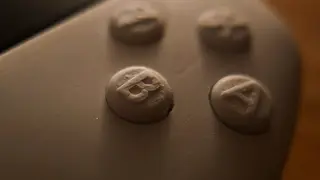

- button-A-east-v1.stl STL · 1,3 MB
- button-B-south-v1.stl STL · 1,0 MB
- button-left-shoulder-v1.stl STL · 194 KB
- button-right-shoulder-v1.stl STL · 441 KB
- button-select-start-v1.stl STL · 504 KB
- button-X-north-v1.stl STL · 929 KB
- button-Y-west-v1.stl STL · 1,1 MB

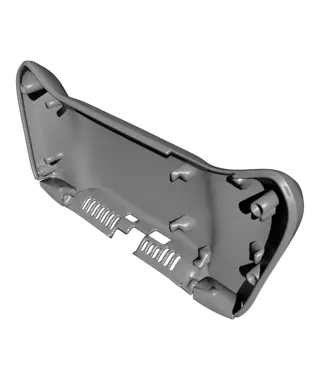

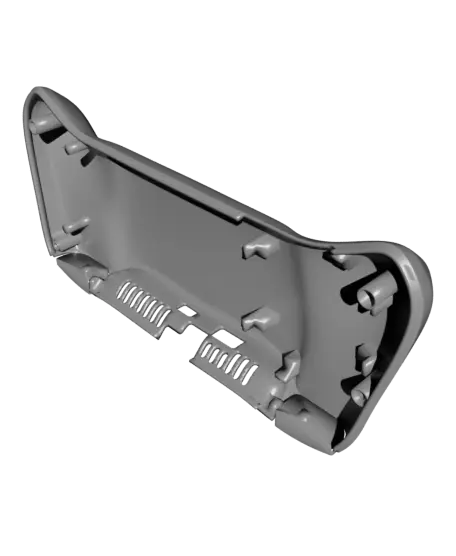

- case-back-v1.stl STL · 7,7 MB
- case-front-v1.stl STL · 3,8 MB
- d-pad-v1.stl STL · 178 KB
- pcb-prototype-v1.stl STL · 346 KB
- LICENSE.txt TXT
- Categoría
- Tecnología
- Formatos
- STL, TXT
- Descargas
- 24
- Publicado
Sobre este modelo

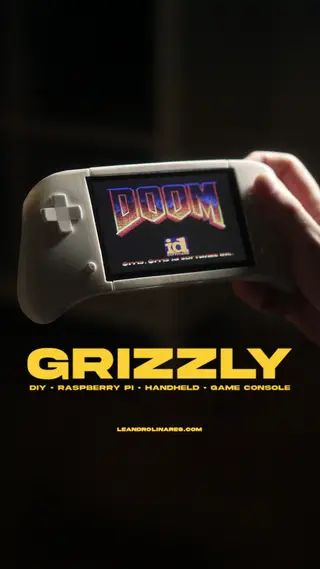

Introducing GRIZZLY!

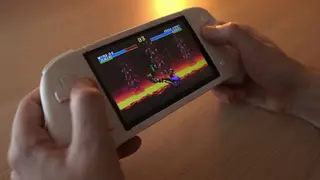

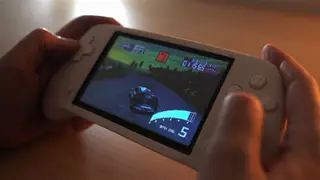

I designed this handheld game console to look the way I wish consoles did. I also wrote a step-by-step guide to make it straightforward for anyone to build. This project is completely free to build under the Creative Commons BY-NC-SA 4.0 license.
DIY guide: https://leandrolinares.com/blog/diy-handheld-game-console YouTube video: https://youtu.be/gkook0l_gsM
I wanted the person building this console to be able to play games as early as the first step. I structured this project in a way that you'll have a functional game console from day one and add improvements in layers whenever you can afford to work on it.
For example, I started playing games with just the Raspberry Pi connected to my PC monitor, an old keyboard, and a phone charger to power it. Later, I added a portable screen, then buttons, then a battery. And I was always able to play games regardless of which step of the process I was in.
Materials (with affiliate links): - Raspberry Pi (4GB minimum): https://amzn.to/3rEKhcD - 5" Touchscreen IPS Display 800x480: https://amzn.to/3ryVvPP - UPS+Battery PiSugar 5000mAh: https://amzn.to/49Uliaz - Soft Tactile Buttons 8mm: https://amzn.to/3AlhsWl - Soft Silicone 6mm Push-Buttons: https://amzn.to/3FN7VbN - Filament Prusament PETG 1.75mm: https://amzn.to/3qJJ3O0 - Check the guide for a more detailed and updated list of materials: https://leandrolinares.com/blog/diy-handheld-game-console
As an Amazon Associate, I earn from qualifying purchases.
Descripción original del autor, publicada en Thangs.
