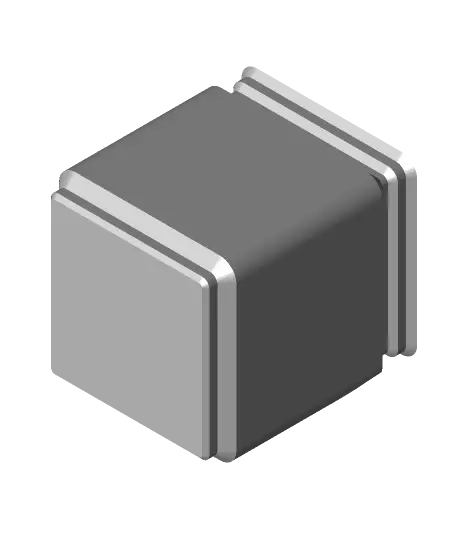

#gridfinity Vase Mode Single Box

Update 04/06/22 (June not April ;-) ) Now that Fusion share link is working again you can now play with the source. https://a360.co/3x9cxGR

There are a couple of parameters you can play with: _slotHeight_ - The total height of the box, set at the default 42mm. _slotsHigh_ - A multiple for the slotHeight. This has a minimum of 1/3 (one third) of the slotHeight. Below that the label shelf goes wonky and you start losing area of the footprint.

NOTE The final 2 operations are extrusions. Supress/Unsupress these as you like to enable or disable the split and label shelf. They have been named to suit.

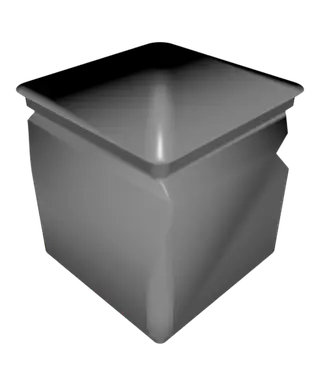

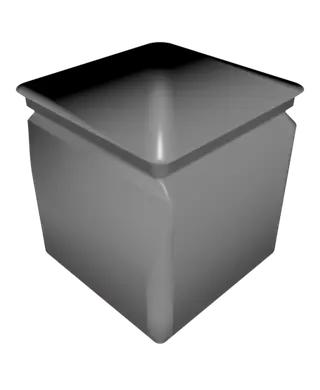

Updated to V2 Gridifnity compatible vase mode single cell boxes.

Yes, they stack Yes, you can put stuff in 'em Yes, you can have a spot for a label Yes, you can have it split into 2 compartments. Yes, they print wicked fast. Yes, they are awesome in clear filament.

No, they're not compatible with magnets No, they can't be more than 1 cell No, you can't mess with the usual parameters on the stock gridfinity models, Standard size only.

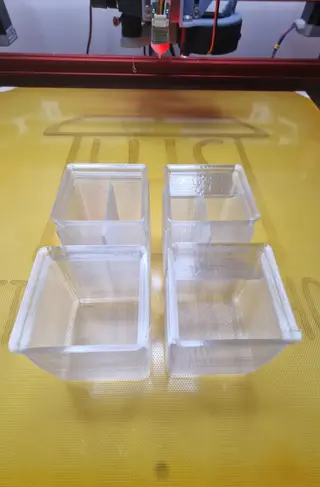

Print with 2 or 3 bottom layers. 0.4 - 0.6 nozzle but limit the extrusion width to a max of 0.6. Don't go crazy on the layer height, the overhangs will bite (0.2-0.25 should be fine) Clear material looks great. PETG is pictured.

Thangs seems to cut off the filenames so they are: - Vase mode single cell - Vase mode single cell with label - Vase mode split single cell - Vase mode split single cell with label
