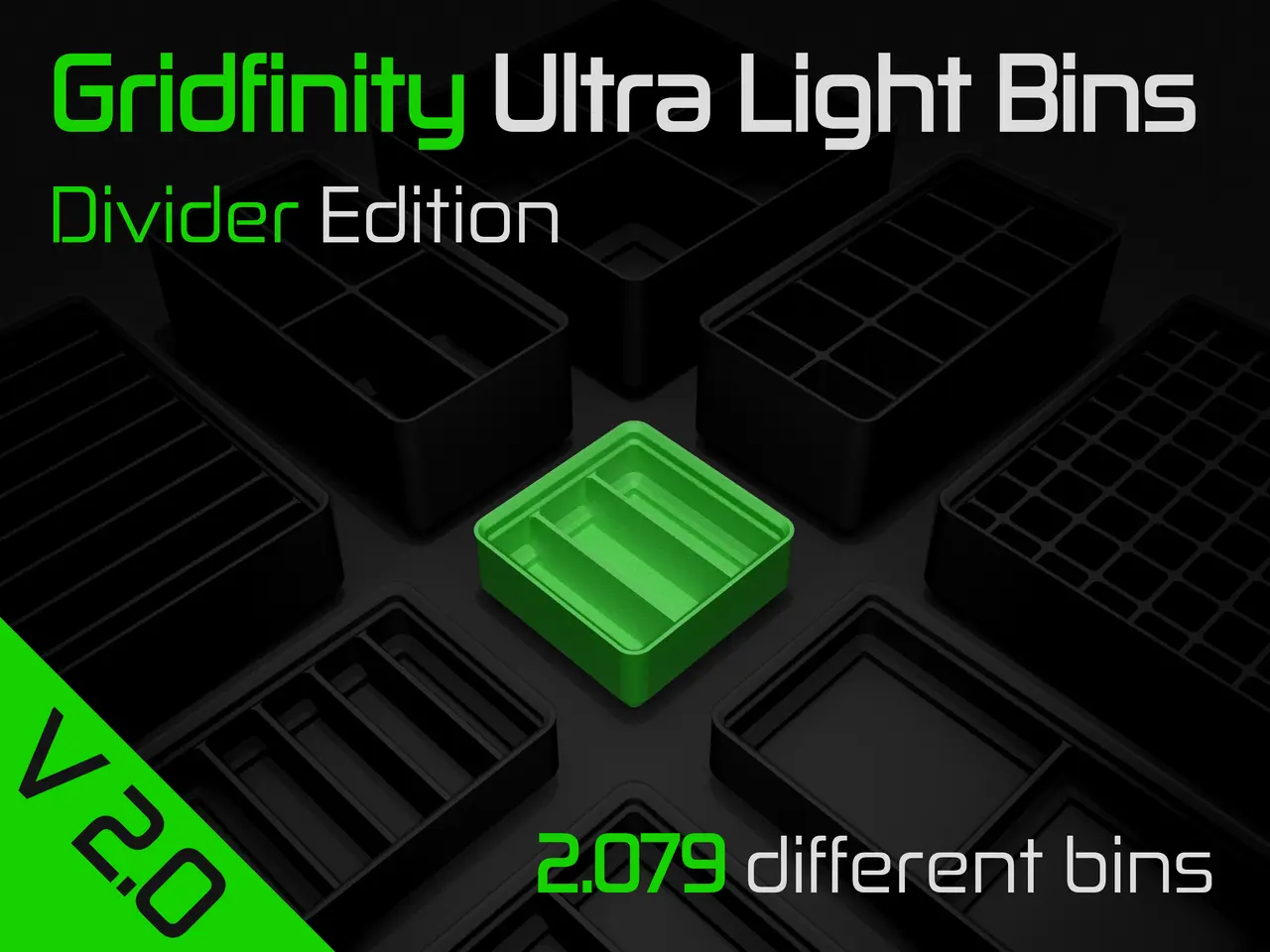

Gridfinity Ultra Light Bins - Divider Edition
por HuMa en Printables
The Gridfinity Ultra Light Bins - Divider Edition
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a HuMa.
Archivos (200)
- Gridfinity_UltraLightBin_DividerEdition_1x1x2_1x2.stl STL · 199 KB
- Gridfinity_UltraLightBin_DividerEdition_1x1x2_1x3.stl STL · 241 KB
- Gridfinity_UltraLightBin_DividerEdition_1x1x2_2x2.stl STL · 249 KB
- Gridfinity_UltraLightBin_DividerEdition_1x1x2_2x3.stl STL · 299 KB
- Gridfinity_UltraLightBin_DividerEdition_1x1x2_3x3.stl STL · 356 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_1x2.stl STL · 224 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_1x3.stl STL · 267 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_1x4.stl STL · 301 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_1x5.stl STL · 343 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_1x6.stl STL · 377 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x1.stl STL · 231 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x2.stl STL · 272 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x3.stl STL · 322 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x4.stl STL · 364 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x5.stl STL · 412 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_2x6.stl STL · 454 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x1.stl STL · 270 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x2.stl STL · 319 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x3.stl STL · 376 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x4.stl STL · 425 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x5.stl STL · 481 KB
- Gridfinity_UltraLightBin_DividerEdition_1x2x2_3x6.stl STL · 531 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_1x2.stl STL · 272 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_1x3.stl STL · 299 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_1x4.stl STL · 344 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_1x5.stl STL · 380 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_1x6.stl STL · 408 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x1.stl STL · 275 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x2.stl STL · 319 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x3.stl STL · 355 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x4.stl STL · 406 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x5.stl STL · 449 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_2x6.stl STL · 486 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x1.stl STL · 314 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x2.stl STL · 365 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x3.stl STL · 409 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x4.stl STL · 467 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x5.stl STL · 517 KB
- Gridfinity_UltraLightBin_DividerEdition_1x3x2_3x6.stl STL · 562 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x2.stl STL · 314 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x3.stl STL · 355 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x4.stl STL · 378 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x5.stl STL · 426 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x6.stl STL · 458 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x7.stl STL · 499 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_1x8.stl STL · 523 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x1.stl STL · 324 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x2.stl STL · 363 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x3.stl STL · 410 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x4.stl STL · 442 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x5.stl STL · 496 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x6.stl STL · 537 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x7.stl STL · 585 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_2x8.stl STL · 617 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x1.stl STL · 364 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x2.stl STL · 411 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x3.stl STL · 466 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x4.stl STL · 505 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x5.stl STL · 566 KB
- Gridfinity_UltraLightBin_DividerEdition_1x4x2_3x6.stl STL · 615 KB
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 8,757
- Publicado
Sobre este modelo
Gridfinity Ultra Light Bin Generator Online
Check out the Gridfinity Ultra-Light Bin System. With so much to print in the Gridfinity universe, this system helps you save time, filament and money, allowing you to print even more Gridfinity stuff... It all started with the Gridfinity Lite Bins from Jake. But I thought maybe they could be even lighter without losing stability. So, I redesigned them from the ground up and achieved an ultra-light version of it that is not a flimsy as a vase mode bin. Then i needed a bin with a divider. So here it is: The Gridfinit Ultra-Light Bin System with dividers. If you encounter any issues when printing the bins or need a size that is not available, please feel free to let me know. I will either fix the error or upload the missing parts. Happy printing :)
Other Editions Plain Edition Noting else, just plain bins
Plain Label Edition Plain bins with labels
Divider Label Edition Divider bins with label
Plain Half Grid Edition Ultra light half grid version
Plain Label Half Grid Edition Ultra light half grid version with labels
Gridfinity Ultra Light Bin Generator A OpenSCAD file to create your own Gridfinity Ultra Light Bin

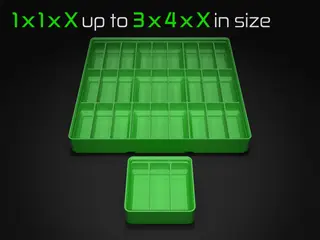

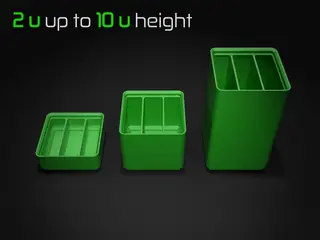

How to find your bin The first two numbers indicate the grids in the X and Y directions. One grid is 42 x 42 mm. So, for example, a 2x3x_ box would be 84 mm in the X direction and 126 mm in the Y direction. The third number indicates the height of a box. One height unit is 7 mm. On top of that height comes a lip with approximately 4.4 mm of height to stack the next box onto it. So, for example, a _x_x3 would be around about 25.4 mm high. If you want to know more, there is a very good website, where all the specifications are explained. The last two numbers indicate the number of sub-boxes inside the box in the X and Y directions. So, for example, a 1x2 would have 1 box in the X direction and 2 boxes in the Y direction, resulting in one divider. A 2x2 would have two dividers.
Changelog Date Version Type Comment
2024-02-08 V2.0 Minor changes New models and a few changes
2024-01-06 V1.1 New models Added 3x3 models
2023-11-19 V1.1 New models Added new sizes
2023-11-19 V1.1 Folder Structure New folder structure for files
2023-11-19 V1.1 Bug Fix Fixed bug with inside roundings
2023-11-18 V1.0 Release
Descripción original del autor, publicada en Printables.
