Gridfinity Storage Box V2 [5x4]

por schuylab en MakerWorld

Hello! This is the second version of a gridfinity storage box I designed about a year ago. It's called The Schubox.

Descargar en MakerWorld

MakerWorld entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

Standard Digital File License

Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a schuylab.

Archivos (50)

SCHUBOX V2 FRONT HANDLE REV01.stl STL · 1,8 MB
SCHUBOX V2 HANDLE TOP REV01.stl STL · 138 KB
SCHUBOX V2 LATCH REV01.stl STL · 553 KB
SCHUBOX V2 HANDLE HINGE WITH LABEL REV01.stl STL · 218 KB
SCHUBOX V2 HANDLE HINGE REV01.stl STL · 211 KB
SCHUBOX V2 LABEL REV01.stl STL · 11 KB
SCHUBOX V2 DRAWER SLIDE LEFT REV01.stl STL · 682 KB
SCHUBOX V2 DRAWER SLIDE RIGHT REV01.stl STL · 683 KB
SCHUBOX V2 DRAWER SLIDE PLATE REV01.stl STL · 1,7 MB
SCHUBOX V2 DRAWER SLIDE PIN REV01.stl STL · 83 KB
SCHUBOX V2 DRAWER TOP GRID PLATE LEFT REV01.stl STL · 2,5 MB
SCHUBOX V2 DRAWER TOP GRID PLATE RIGHT REV01.stl STL · 2,5 MB
SCHUBOX V2 DRAWER FRAME TOP MOUNT REV01.stl STL · 2,4 MB
SCHUBOX V2 UNDER MOUNTREV01.stl STL · 2,2 MB
SCHUBOX V2 VERTICAL FRAME REV01.stl STL · 1,6 MB
SCHUBOX V2 WALL MOUNT REV01.stl STL · 489 KB
SCHUBOX 5X4 HIGHCLEARANCE DRAWER SLIDE RIGHT REV 01 .stl STL · 556 KB
SCHUBOX 5X4 HIGHCLEARANCE DRAWER SLIDE LEFT REV 01 .stl STL · 512 KB
SCHUBOX DRAWER FRAME PINREV01.step STEP · 65 KB
SCHUBOX LID NO HANDLEREV01.stl STL · 3,7 MB
SCHUBOX 5X4 GRID V2 LID TOP HANDLE FLIPPED REV02.STL STL · 3,8 MB
SCHUBOX 5X4 V2 MOUNTING PLATE REV02.STL STL · 567 KB
SCHUBOX 5X4X6U GRID V2 BASE REV03.STL STL · 7,1 MB
SCHUBOX 5X4X9U GRID V2 BASE REV01.STL STL · 7,1 MB
SCHUBOX 5X4X12U GRID V2 BASE REV01.STL STL · 7,1 MB
SCHUBOX 5X4X15U GRID V2 BASE REV01.STL STL · 7,1 MB
SCHUBOX DRAWER TOP PLATE NO GRID REV01.stl STL · 1,1 MB
SCHUBOX 5X4X6U FRAME STYLE A REV 01.stl STL · 9,3 MB
SCHUBOX 5X4 GRID V2 LID REV03.STL STL · 2,9 MB
SCHUBOX 5X4 V2 BEEFY HANDLE REV03.STL STL · 446 KB
SCHUBOX 5X4X12U DRAWER FRAME REV 02.STL STL · 3,0 MB
SCHUBOX 5X4X9U DRAWER FRAME V2 REV 02.STL STL · 3,0 MB
SCHUBOX 5X4X15U DRAWER FRAME REV 02.STL STL · 3,0 MB
SCHUBOX 5X4X6U DRAWER FRAME V2 REV 02.STL STL · 3,0 MB
DRAWER FRAME PIN_REV01.STEP.stl STL · 95 KB
SCHUBOX 5X4X9U DRAWER FRAME SPLIT A V2 REV 01.stl STL · 3,7 MB
SCHUBOX 5X4X9U DRAWER FRAME SPLIT B V2 REV 01.stl STL · 3,7 MB
SCHUBOX 5X4X12U DRAWER FRAME SPLIT A V2 REV 011.stl STL · 3,9 MB
SCHUBOX 5X4X12U DRAWER FRAME SPLIT B V2 REV 01.stl STL · 3,9 MB
SCHUBOX 5X4X15U DRAWER FRAME SPLIT A V2 REV 01.stl STL · 3,9 MB
SCHUBOX 5X4X15U DRAWER FRAME SPLIT B V2 REV 01.stl STL · 3,9 MB
SCHUBOX 5X4X15U DRAWER FRAME SPLIT PIN V2 REV 01.stl STL · 574 KB
DRAWER SLIDES 1mm HIGH CLEARANCE REV01_1.stl STL · 639 KB
DRAWER SLIDES 1mm HIGH CLEARANCE REV01_2.stl STL · 642 KB
DRAWER SLIDES 2mm HIGH CLEARANCE REV01_1.stl STL · 635 KB
DRAWER SLIDES 2mm HIGH CLEARANCE REV01_2.stl STL · 638 KB
Schubox 5X5 V2 LID HALF GRID REV 02.STL STL · 4,5 MB
DRAWER TOP GRID PLATE_REV02 SINGLE PART.STL STL · 1,2 MB
SCHUBOX 5X4X6U DRAWER FRAME SPLIT RIGHT V2 REV 01.stl STL · 1,7 MB
SCHUBOX 5X4X6U DRAWER FRAME SPLIT LEFT V2 REV 01.STL STL · 1,7 MB

Categoría: Herramientas
Formatos: STL, STEP
Descargas: 18,906
Publicado: 6 de febrero de 2026

Sobre este modelo

Hello! This is the second version of a gridfinity storage box I designed about a year ago. It's called The Schubox.

I've made many updates since publishing this project so please read the update log down below. I've created a Patreon for updates and early release files for upcoming sizes and improvements. That link can be found below. All files will remain free here on MakerWorld when ready.

Big news - V2 Large is here! 7X6 grid of awesomeness for H series printers.

What makes this storage box different?

- Gridfinity top, bottom, and inside

- Easy one handed opening latch

- Box stands freely on back edge (vertically) for storage in deep drawers

- Lid stops opening at a specific angle - does not fall all the way over

- Uses durable pins for latch and hinges

- Integrated drawer slide features in the sides of boxes

- Has option for labels

- Has option for handles

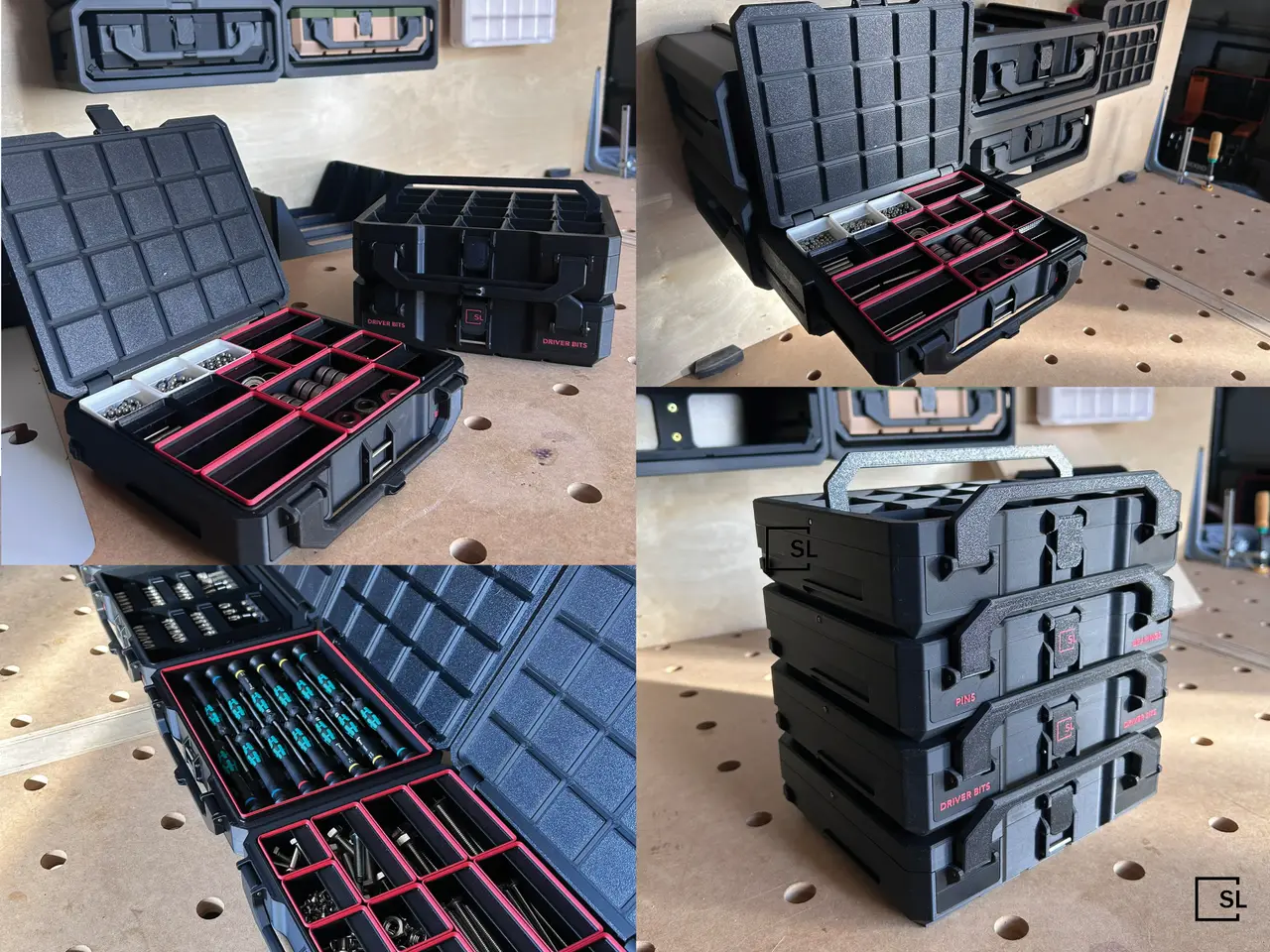

- Boxes can stack & latch together for carrying multiple

- Pivoting top handle for top carry

- Pivoting front handle for front carry

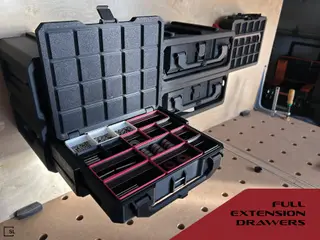

- Improved drawer slide system

- Mounting plate that can be bolted or strapped

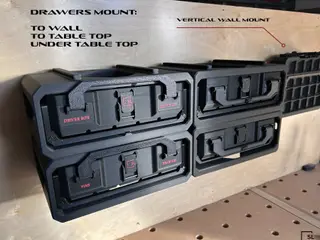

- Surface and undermounting plates for the drawer system

- Wall mount

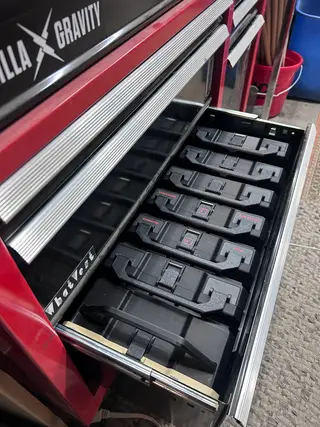

- Vertical storage for inside drawers

Gridfinity Specifications:

Gridfinity was started by Zack Freedman and you can learn more about the system here.

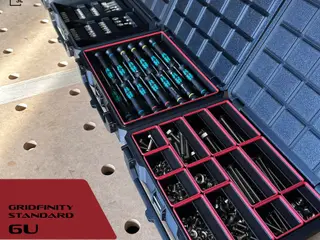

This box is 5 Units Wide, 4 Units Deep, and 6, 9, 12, and 15 Units tall. If this doesn't make sense to you… click that link above to learn about Gridfinity. Please note that the back row on the outside of the lid is not gridfinity standard - it has geometry that is needed for locking the boxes together.

If you print 5U Bins - your stuff will go everywhere inside the case. If you print 6U bins with additional labels on top of the label shelf, they may not fit properly. My favorite bin generator is Perplexinglabs.

Materials required:

PETG HF Filament & 3mmx30mm dowel pins. "Can I use PLA?" - Not for this model - Please use the model modified to use M3 Bolts for PLA (you'll still need PETG for the front handle.) Can I used regular PETG? Yes, but some of the 35 degree angles may have issues. I recommend using the support profile unless you're confident you have dry material and your printer is up for the task.

Assembly:

Please note if you are mounting this to a wall please follow proper wall mounting practices. These stacks can be under heavy weight and force loads since they are drawers. They are made of plastic, please use reasonable caution in how you load and wall mount them. Mount to studs, toggle bolts (drywall), or a french cleat. Do not expect basic screws to hold this on drywall… it will fall off. Do not hang off these or stand on them, they will break.

Please note the beefy handle shown below is being updated to REV 03. Be cautious with previous revisions.

Pins can be installed using channel lock pliers. Make sure its aligned well as you squeeze it in:
