Gridfinity Smooth – Modular Organizer System

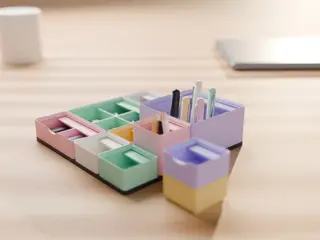

Gridfinity Smooth is an original, from-scratch take on the Gridfinity standard, designed to look as good as it works. Every bin has soft rounded corners, a curved interior scoop that makes grabbing small parts easy, a support-free label tab and a stacking lip. It is fully compatible with any Gridfinity baseplate or bin (42 mm grid, 7 mm height units). 📦 What's included - 01 – Basic: 4x4 baseplate + 1x1x3, 2x1x3 (with divider) and 2x2x6 bins.

- 02 – Finger Pull: the same bins with a discreet curved notch at the front, so you can lift a bin out with one finger.

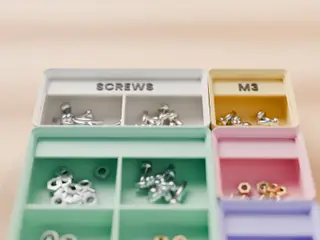

- 03 – Embossed Label: bins with raised text on the label tab (M3 / SCREWS / TOOLS). - _multicolor files keep the text as a separate part – perfect for AMS or dual-nozzle printers

- Single-color files for everyone else

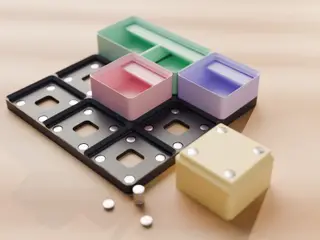

- 04 – Magnets: bins with 6x2 mm magnet holes + a magnet baseplate with a 3 mm floor and a center cutout to save filament.

- 05 – Full Kit: 11 bins (1x1 to 4x1 and 3x2, heights 3 and 6, with 1–4 compartments) and baseplates 3x3, 4x4, 5x5 and 6x6, each in standard and magnet versions. Ready-made project files put one part on each plate.

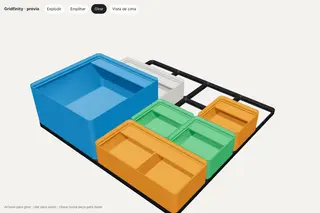

🎛 Customize it Click Customize to build your own bin: any size up to 6x6, height 2–12 units, your own label text (long text shrinks automatically to fit), compartments, scoop, finger pull, magnets and stacking lip. You can also generate baseplates or export only the text for multicolor printing. 🖨 Which baseplate fits your printer Baseplate Size Printers

3x3 126 mm Any printer

4x4 168 mm Most printers

5x5 210 mm X2D, X1, P1, A1, MK4

6x6 252 mm 256 mm beds (X2D, X1, P1, A1)

📐 Fit & tolerances Built to the Gridfinity spec with 0.25–0.35 mm clearance per side. Bins drop in smoothly and stack securely on top of each other. 💡 Printing tips - No supports needed. Print bins upright and baseplates flat.

- 0.2 mm layers, 2–3 walls, 10–15% infill. Profile tested on a Bambu Lab X2D.

- Magnets: 6x2 mm neodymium, fixed with a drop of super glue. Keep the same polarity facing up on all baseplate magnets, and the opposite on the bins.

- Multicolor labels: when opening a _multicolor file in Bambu Studio, load it as a single object with multiple parts and assign a different filament to the text.

Free to download – if you like it, a Boost or a Make helps a lot! I'd love to see your setups
