Gridfinity Raspberry Pi Model 4B Case V2
An updated version of the Raspberry Pi Case for use with the GridFinity System.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Alex C.
Archivos (4)

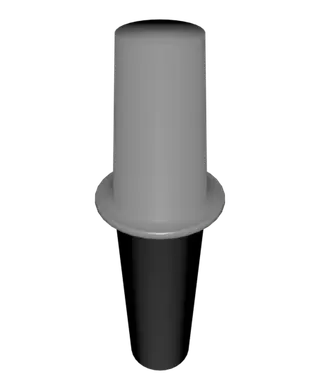

- RPI Case Lid Pin x2.stl STL · 50 KB

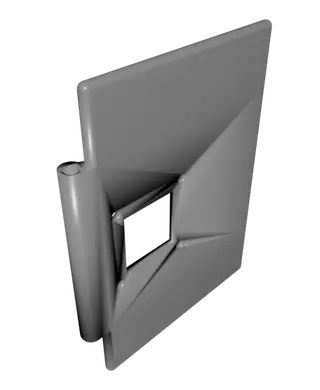

- RPI Case Lid with Fan Slot.stl STL · 67 KB

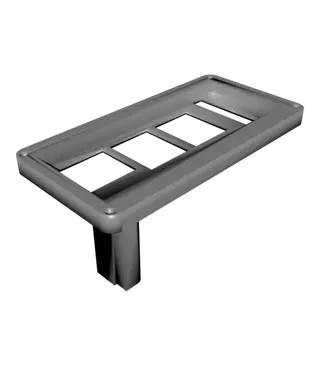

- RPI Case Top with SD Card Slot.stl STL · 66 KB
- RPI Case with Slot on 1x2 Gridfinity.stl STL · 217 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 3
- Publicado
Sobre este modelo
An updated version of the Raspberry Pi Case for use with the GridFinity System.

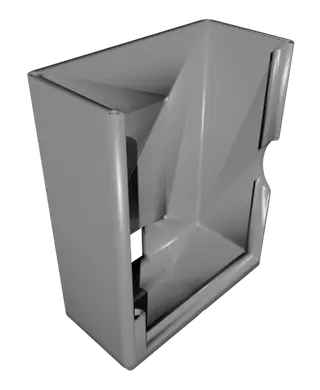

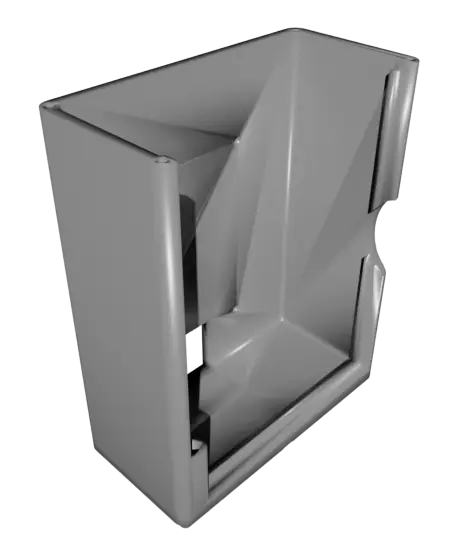

The Case sits within a 1x2 GridFinity footprint by orienting the Pi vertically.
The top part of the case, where the USBs and Ethernet port exit, is attached via four (4) M2 x 8mm Bolts.
Four (4) M2.5 x 8mm(?) Standoffs should be used to secure the Pi to the case.
Major upgrades include: -A small finger slot in the main case to allow easier opening of the lid. -The lid now has a slot for a fan -The output panel/Case Top now has a slot for an SD card relocator. I made the slot about the size of the housing of the SD card ribbon cable adapter from adafruit.
Anyways, thanks for looking at my model and I hope it suits your uses! -X
