Gridfinity Raspberry Pi Model 4B Case
A Raspberry Pi Case for use with the GridFinity System.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Alex C.
Archivos (4)
- RPI Case Lid Pin.stl STL · 50 KB
- RPI Case Lid.stl STL · 39 KB
- RPI Case on 1x2 Gridfinity.stl STL · 199 KB
- RPI Case Top.stl STL · 64 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 12
- Publicado
Sobre este modelo
A Raspberry Pi Case for use with the GridFinity System.

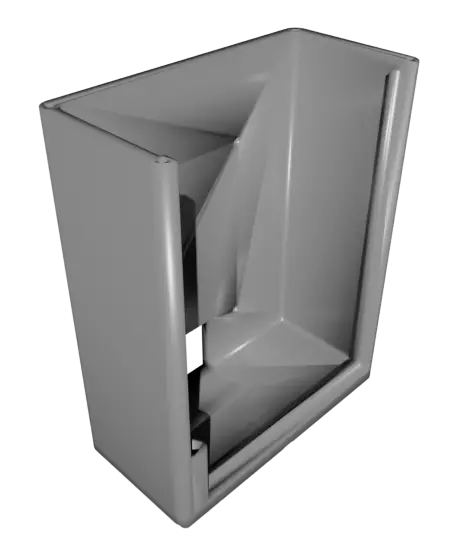

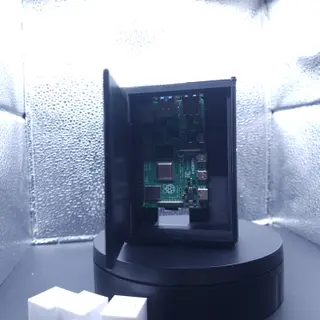

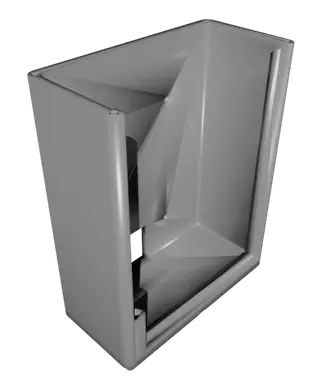

The Case sits within a 1x2 GridFinity footprint by orienting the Pi vertically.

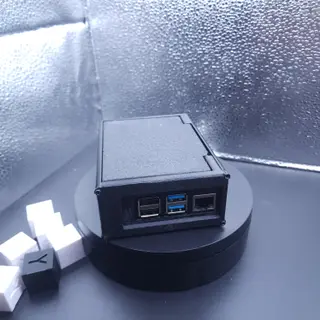

The top part of the case, where the USBs and Ethernet port exit, is attached via four (4) M2 x 8mm Bolts.

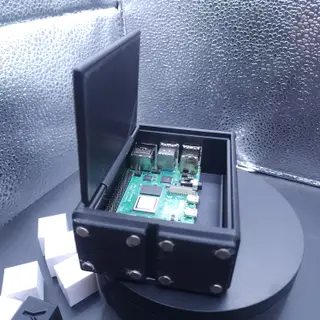

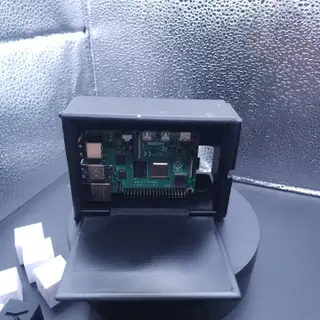

Four (4) M2.5 x 8mm(?) Standoffs should be used to secure the Pi to the case. In the photos: I have M2 bolts going through the Pi, a handful of washers ( ~6-8mm), through the case wall, then secured with nuts on the exterior. Due to not adding a recessed area for the nuts, it prevents a neighboring Unit from sitting flush/plumb/even. By using the appropriate standoffs, which will thread into the case without the need for nuts, it will hopefully look profesh.
Anyways, thanks for looking at my model and I hope it suits your uses! -X
