Gridfinity Printer-Mounted Baseplates

Mount storage right to your printer with the Gridfinity modular workshop storage system - whatever machine you use!

Gridfinity is the ultimate organizer for your whole workshop! Learn more at Find more Gridfinity accessories at https://bit.ly/3E2NxnZ

Parametric source files: - Anycubic Sidecar: https://a360.co/3xonYw4 - Anycubic Top: https://a360.co/3jy22GN - Lulzbot: https://a360.co/3xobNzx - Prusa: https://a360.co/3Jzfp47 - Snapmaker: https://a360.co/37Om65m - E3D Toolchanger: https://a360.co/3rlmn6K

These brackets mount to your 3D printer and allow you to put Gridfinity storage blocks right where you need them! These work especially well for the Gridfinity 3D-printer accessory kit (https://bit.ly/3jtTfWu).

If you need more adjacent slots, just print multiple baseplates and butt them up against each other. I STRONGLY recommend magnets or screws so you don't knock stuff into your printer!

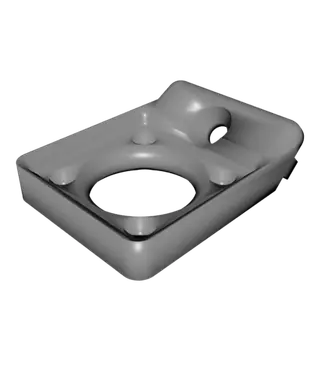

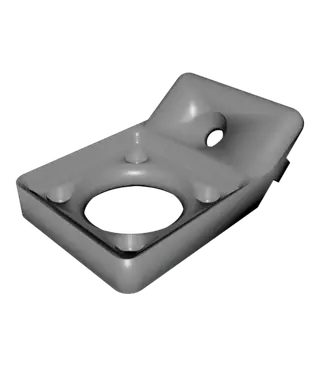

Anycubic Vyper/Kobra: Also fits any printer made of extrusion with 6mm slots. Mount to your printer's frame with M5 hammer nuts for 6mm slots (https://amzn.to/3jzbOZb) and M5x12mm countersunk screws (https://amzn.to/3xoGLHV). Remember to measure countersunk screws from the TOP OF THE HEAD!

The sidecar baseplate mounts to the base frame, parallel with the floor, a lot like the included filament holder. The top-mount baseplate mounts on the Z axis crossbeam or base frame. Make sure the gantry, extruder, and plate don't collide with your Gridfinity!

Lulzbot: Fits the upward-facing edges of the top crossbars. This one is a real pain in the butt to install.

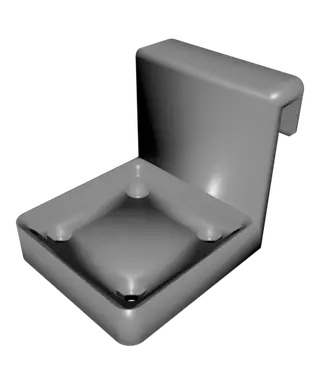

Prusa: Slides on over the steel frame, no fasteners required. THE BASEPLATE AND EXTRUDER MUST BE ON OPPOSITE SIDES OF THE FRAME!

Snapmaker: Mount to the optional enclosure with M5 hammer nuts for 6mm slots (https://amzn.to/3jzbOZb) and M5x12mm countersunk screws (https://amzn.to/3xoGLHV). Remember to measure countersunk screws from the TOP OF THE HEAD! I didn't make one for the printer itself, sorry!

Toolchanger: Mount to the top of the printer with three button head M3x5 screws. Don't use longer screws! They won't fit!

Gridfinity Tips! - No brims or support required! - Use any filament with an 0.6mm or smaller nozzle. - Wider bins can curl, so maximize your bed adhesion if you're going big! - All storage blocks are compatible with all baseplates! - Most storage blocks are stackable! - You can add 6x2mm magnets to the corners! They won't magnetize the contents. - You can also use M3 screws in the corners.

Gridfinity was inspired by Alexandre Chappel's ModuBOX system, which is found at https://www.alch.shop/shop/assortment
