Gridfinity parametric FreeCAD file along with Blank Storage 3x2x3 .stl file
Zack Freedman's Gridfinity 'Blank Frame' and 'Blank Storage' re-implemented in FreeCAD.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Günther D.
Archivos (4)
- Gridfinity-Blank Storage 3x2x3.stl STL · 478 KB

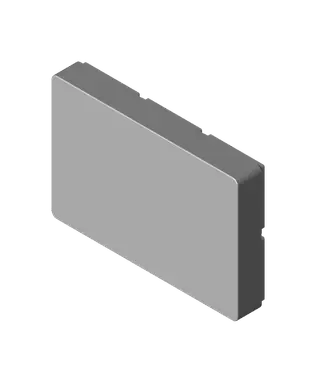

- Gridfinity Blank Block 3x2x3.stl STL · 395 KB

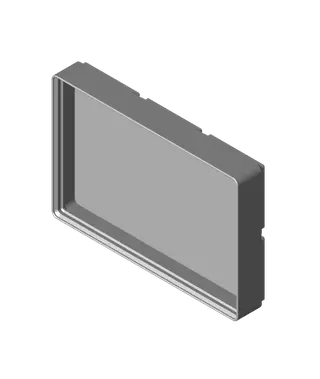

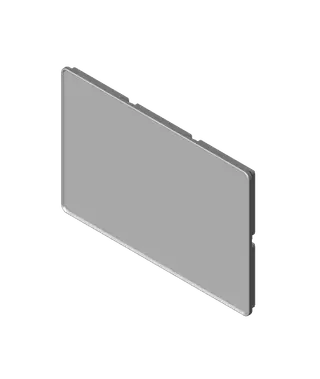

- Gridfinity Lid w. rim 3x2.stl STL · 420 KB
- Gridfinity Blank Frame and Storage.FCStd FCSTD
- Categoría
- Para tu impresora
- Formatos
- STL, FCSTD
- Descargas
- 762
- Publicado
Sobre este modelo
Zack Freedman's Gridfinity 'Blank Frame' and 'Blank Storage' re-implemented in FreeCAD.
The FreeCAD file contains an object 'dd' (DynamicData), where the parameters may be set in the section 'User Settings' of the property editor (Columns, Rows, Height, Set_screw_holes). This is a complete rebuild compared to what I uploaded on 2022-06-16, several bugs of the old version fixed.

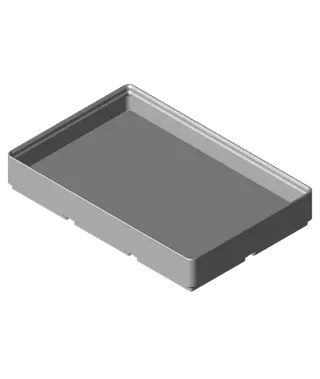

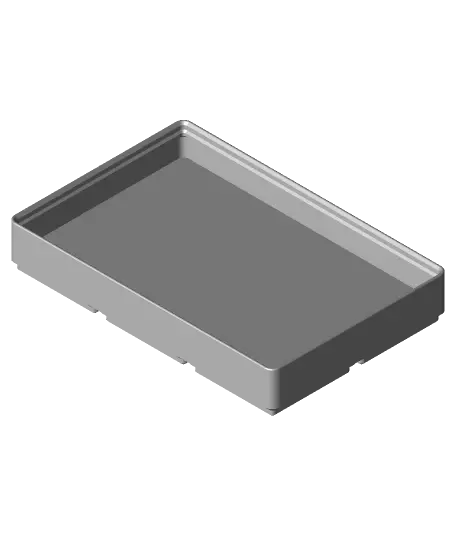

One exported .stl file is enclosed as an example: Gridfinity blank storage bin, 3x2 units wide/long, 3 units high, no screw holes in the magnet pockets in the base.
2023-02-26 Added variable height infill.
Descripción original del autor, publicada en Thangs.
