#Gridfinity Parametric Bit Holders
por Bristien H en Thangs
This item is for use with the #GridFinity system by Zach Freedman:
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Bristien H.
Archivos (13)
- 1x1 Bit Holder.stl STL · 376 KB
- 1x2 Bit Holder.stl STL · 491 KB
- 1x3 Bit Holder.stl STL · 596 KB
- 1x4 Bit Holder.stl STL · 715 KB
- 2x2 Bit Holder.stl STL · 716 KB
- 2x3 Bit Holder.stl STL · 929 KB
- 2x4 Bit Holder.stl STL · 1,1 MB
- 3x3 Bit Holder.stl STL · 1,2 MB
- 3x4 Bit Holder.stl STL · 1,5 MB
- 4x4 Bit Holder.stl STL · 1,9 MB
- Bit Holder.f3d F3D
- 4mm Bit Holder Custom.stl STL
- 6-5mm Bit Holder Custom.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL, F3D
- Descargas
- 1,882
- Publicado
Sobre este modelo
This item is for use with the #GridFinity system by Zach Freedman:
https://www.youtube.com/watch?v=ra_9zU-mnl8

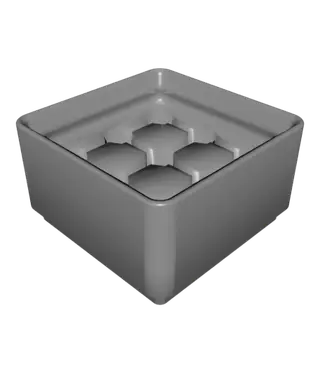

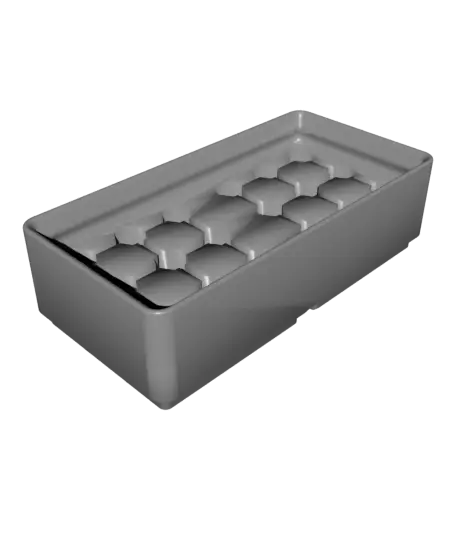

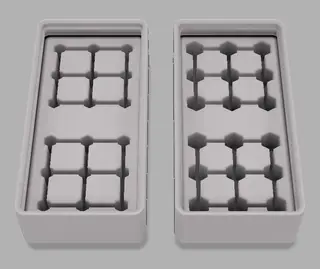

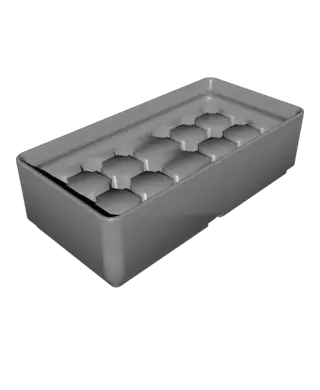

These bit holders are parametric, a group of 9 bits will be generated for each module deep and wide selected. Values bitSize controls the bit shank (6.25mm or 4mm usually) and slopSize controls the extra 'space' around the holes. I find a value of 0.2 works well here.
If you lower the extrusion of the holes from 10 to 5 they work well for holding MK8 compatible hot end nozzels as well.

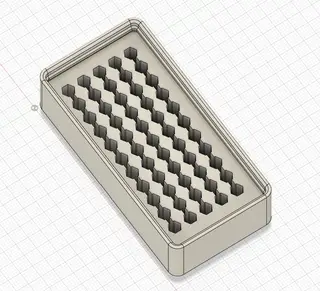

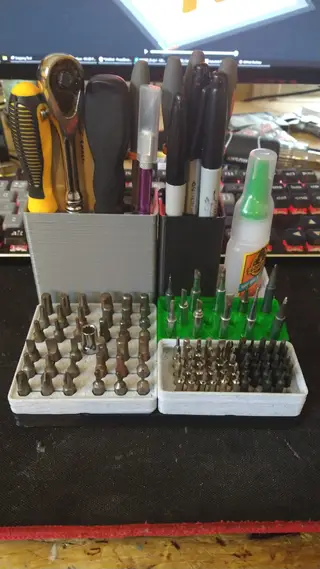

You can use the .f3d archive to edit the parameters as you choose. You can also go into the sketch and adjust the spacing directly, or edit the extrusion and choose if you would like the strain relief lines or not. I've uploaded some pictures of my customized ones as an example.
Source file included.
