Gridfinity Low Profile Compact Tool Storage Drawer Organizer Set

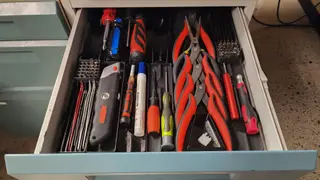

I needed to fit a lot of small tools into 42mm low profile drawers and couldn't find much that would fit, so I started this series. These are all the final versions I'm using now, but I'll add more tool compartments as I make them.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a gadam.
Archivos (22)
- Gridfinity 1x4 2x Mini Driver Box v2.step STEP · 344 KB
- Gridfinity 1x4 2x Mini Driver Box v2.3mf 3MF · 2,1 MB
- Gridfinity 1x5 Driver Tray v2.step STEP · 429 KB
- Gridfinity 2x4 Nipper Tray v3.step STEP · 668 KB
- Gridfinity 1x4 Tilt Box.3mf 3MF · 1,6 MB
- Gridfinity 1x4 Tilt Box.step STEP · 274 KB
- Gridfinity 1x3 Tweezer Box v3.3mf 3MF · 3,2 MB
- Gridfinity 1x3 Tweezer Box v3.step STEP · 334 KB
- Gridfinity 2x1 Nipper Single.step STEP · 199 KB
- Gridfinity 2x2 Nipper End.step STEP · 386 KB
- Gridfinity 2x1 Nipper End.step STEP · 233 KB
- Gridfinity 1x5 Driver Tray.stl STL · 3,2 MB
- Gridfinity 2x2 Nipper End.stl STL · 1,9 MB
- Gridfinity 2x1 Nipper End.stl STL · 1,4 MB
- Gridfinity 2x1 Nipper Single.stl STL · 600 KB
- Gridfinity 2x4 Nipper Tray v3.stl STL · 2,2 MB
- Gridfinity 1x4 3x Marker Box.stl STL · 2,2 MB
- Gridfinity 1x4 3x Marker Box.step STEP · 352 KB
- Gridfinity 1x4 4x Pen Box.stl STL · 2,1 MB
- Gridfinity 1x4 4x Pen Box.step STEP · 355 KB
- Gridfinity 1x1 Mini Bit Box v4 - Print Bed.stl STL · 3,0 MB
- Gridfinity 1x1 Mini Bit Box v4 - Assembly.step STEP · 802 KB
- Categoría
- Herramientas
- Formatos
- STEP, 3MF, STL
- Descargas
- 719
- Publicado
Sobre este modelo
I needed to fit a lot of small tools into 42mm low profile drawers and couldn't find much that would fit, so I started this series. These are all the final versions I'm using now, but I'll add more tool compartments as I make them.

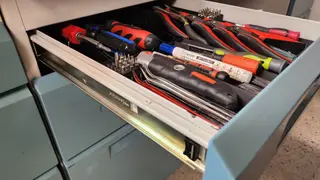

Common features include: -42mm max height of stored tools to fit in very low drawers -Tilt-access for easier grabbing: palm above the tool, poke the far end with a fingertip to pop it up into your palm -Tileable designs: storage for larger tools like full screwdrivers and nippers are tileable so you can add more storage without wasted space in between tools.

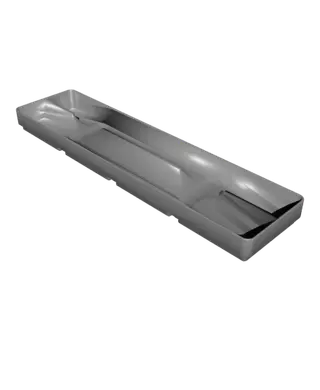

Current models: - 2x Mini Driver: 1x4 box with two rounded compartments with fingertip cutouts and tilt access pockets for easier tool removal - 6x Tweezer Box: 1x3 box with slots for up to 6 tweezers or small, flat tools. Includes tilt access for easier tool removal. - Tilt Box: 1x4 box for larger tools like shop knives. Includes tilt access for easier tool removal. - Driver Tray: 1x5 tileable tray that stores 1 full size screwdriver per part plus half driver cutouts to either side, allowing for 2 more stored drivers for every extra tray part you print. - Nipper Storage: 2x4 tileable storage for nippers, pliers, and other small such tools. Holds 3+ per print and tiles in one axis to add 4 more tools per part printed. - Nipper Single Section: 2x1 tileable nipper/plier storage as above. Tile in single section lengths as needed. - Nipper Ends: both 2x1 and 2x2 end sections with storage bins in the unusable sections.

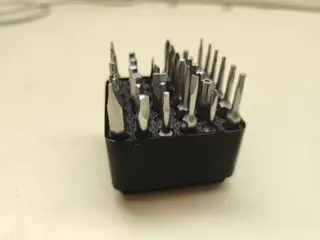

NEW - 3x Marker Box: Stores 3 small drivers, markers, or thicc pens, tilt access - 4x Pen Box: Stores 4 small pens, tilt access - 36x Mini Driver Bit Box: Low profile and extremely dense mini bit storage for 36 bits. Includes tilting row mechanism that helps get your fat fingers on the tiny bits by tilting neighboring rows down while raising up the row you're trying to reach. Print disassembled and assemble upside-down. Disassembly hole included in base to poke things back apart.
