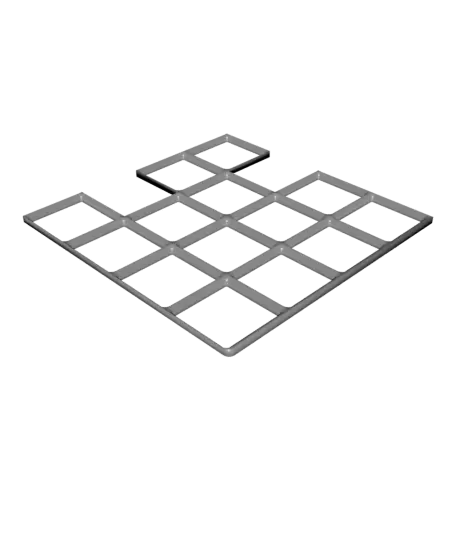

Gridfinity Ikea Alex Drawer - Light Locking Base - 10x7 Grid

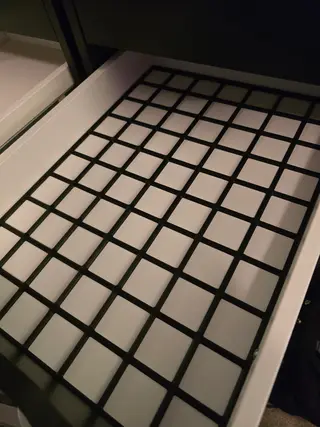

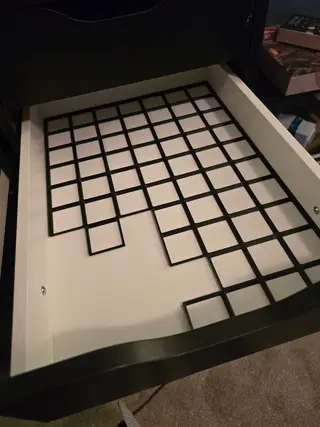

I got tired of my Gridfinity system shifting around when I open/close my drawers, and most of the grids people uploaded are for the shorter Alex unit. This set is designed to fit the IKEA _Alex tall drawers_. The tall Alex (9 drawers) is more shallow than the short (5 drawer) version.

Included in the files is a calibration/test print. Look at my uploaded calibration picture and try to get as close as possible to the provided dimensions. Comment/message me if you have questions or need an adjustment made.

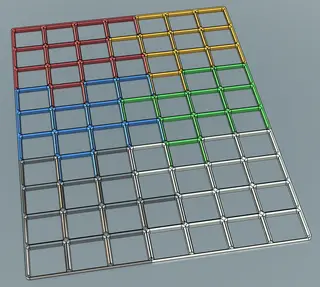

Details: - Grid size: 7 wide by 10 deep - Base unit dimensions: 42 mm width by 42mm length (standard) - Base clearance: 0.25 mm - Base plate type: Light - Base plate section clearance: 0.4 mm

Added the following padding to make it snug in the Alex drawers: - Left: 1.70 mm - Right: 1.70 mm - Back: 2.50 mm - Front: 0.00 mm

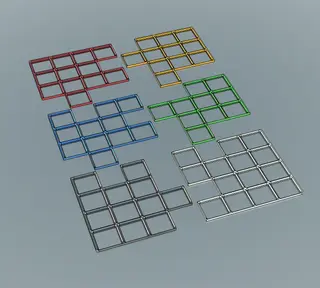

Notes: - There are 6 parts to print, plus one calibration/test print. - All parts are 170x170mm or less, to accommodate smaller printers. - Designed for the IKEA Alex tall unit (9 drawers) not the short deeper unit (5 drawers). - Look up "704.834.34" without quotes on the IKEA site to see the exact unit I designed this for.
