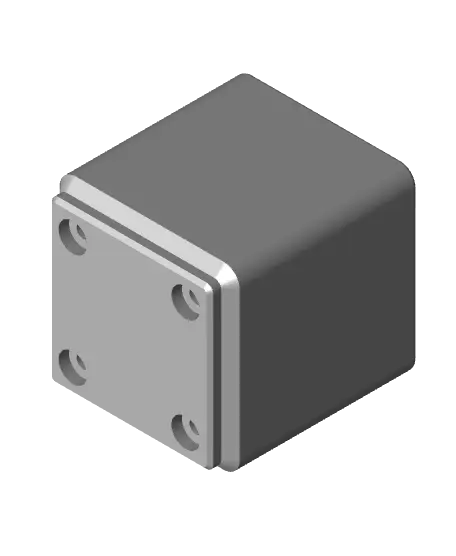

Gridfinity | Hole Customizer

Trypophobians beware! This is a parametric file which will allow you to make your own custom Gridfinity blocks. This file is setup to allow you to create blocks with holes in them for holding any number of cylindrical objects such as bottles, pens, markers, pencils, drill bits, etc. The holes are laid out in 'major' rows with 'minor' rows in between. There are a number of favorited parameters within the file which allow you to customize as you need: - slotsWide & slotsDeep - sets the number of 42mm slots your block will occupy - slotsHigh - sets the height of your block - majorRowsWide & majorRowsDeep - how many 'major' rows of holes you want in the specific direction - holeDiameter - how wide each hole should be - holeDepth - how deep each hole should be - chamferWidth - the width of the chamfer at the top of each hole - edgeDistance - how far from the 'rim' the edge of the chamfer should be

Note: If you do not want/need the center hole(s) you can suppress that feature from the timeline by right clicking on the last hole feature and select "suppress feature". Then you will be left with a more standard grid of holes instead of a set of alternating holes. ---------------------------------------------------- Derived from: Gridfinity Divider Bins (https://thangs.com/designer/ZackFreedman/3d-model/Gridfinity%2520Divider%2520Bins-60721) by Zack Freedman (https://thangs.com/designer/ZackFreedman) is licensed under CC BY-NC-SA 4.0 (https://creativecommons.org/licenses/by-nc-sa/4.0/legalcode.txt)
