Gridfinity Divider Bins — modelo 3D

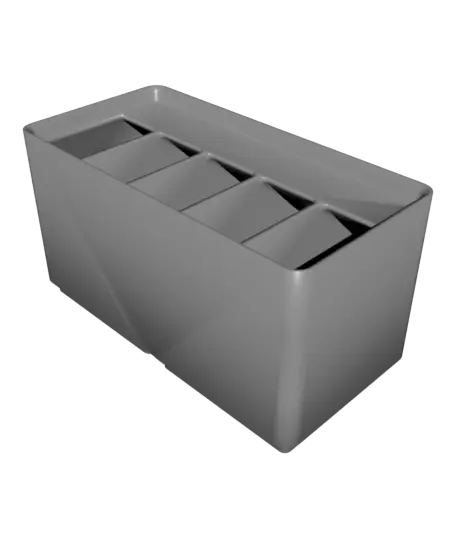

Gridfinity Divider Bins

por Zack F en Thangs

Versatile open-top storage blocks for the Gridfinity modular workshop storage system - multiple sizes for infinite options!

Descargar en Thangs

Thangs entrega los archivos a usuarios con cuenta gratuita

Licencia

Uso comercial permitido

Licencia MIT

Puedes usarlo, modificarlo y venderlo manteniendo el aviso de copyright del autor.

Al descargar aceptas respetar la licencia y dar crédito a Zack F.

Archivos (51)
  • Divider Box 1x1x2 1-Compartment.stl STL · 179 KB
  • Divider Box 1x1x2 2-Compartment.stl STL · 228 KB
  • Divider Box 1x1x3 1-Compartment.stl STL · 220 KB
  • Divider Box 1x1x3 2-Compartment.stl STL · 299 KB
  • Divider Box 1x1x6 1-Compartment.stl STL · 219 KB
  • Divider Box 1x1x6 2-Compartment.stl STL · 296 KB
  • Divider Box 2x1x2 1-Compartment.stl STL · 218 KB
  • Divider Box 2x1x2 3-Compartment.stl STL · 283 KB
  • Divider Box 2x1x2 5-Compartment.stl STL · 345 KB
  • Divider Box 2x1x3 1-Compartment.stl STL · 271 KB
  • Divider Box 2x1x3 3-Compartment.stl STL · 379 KB
  • Divider Box 2x1x3 5-Compartment.stl STL · 489 KB
  • Divider Box 2x1x6 1-Compartment.stl STL · 271 KB
  • Divider Box 2x1x6 3-Compartment.stl STL · 394 KB
  • Divider Box 2x1x6 5-Compartment.stl STL · 517 KB
  • Divider Box 3x1x2 1-Compartment.stl STL · 180 KB
  • Divider Box 3x1x2 2-Compartment.stl STL · 297 KB
  • Divider Box 3x1x2 4-Compartment.stl STL · 355 KB
  • Divider Box 3x1x2 5-Compartment.stl STL · 379 KB
  • Divider Box 3x1x3 1-Compartment.stl STL · 228 KB
  • Divider Box 3x1x3 2-Compartment.stl STL · 384 KB
  • Divider Box 3x1x3 4-Compartment.stl STL · 479 KB
  • Divider Box 3x1x3 5-Compartment.stl STL · 529 KB
  • Divider Box 3x1x6 1-Compartment.stl STL · 322 KB
  • Divider Box 3x1x6 2-Compartment.stl STL · 393 KB
  • Divider Box 3x1x6 4-Compartment.stl STL · 505 KB
  • Divider Box 3x1x6 5-Compartment.stl STL · 563 KB
  • Divider Box 4x1x2 1-Compartment.stl STL · 324 KB
  • Divider Box 4x1x2 3-Compartment.stl STL · 375 KB
  • Divider Box 4x1x2 5-Compartment.stl STL · 429 KB
  • Divider Box 4x1x3 1-Compartment.stl STL · 227 KB
  • Divider Box 4x1x3 3-Compartment.stl STL · 492 KB
  • Divider Box 4x1x3 5-Compartment.stl STL · 580 KB
  • Divider Box 4x1x6 1-Compartment.stl STL · 231 KB
  • Divider Box 4x1x6 3-Compartment.stl STL · 513 KB
  • Divider Box 4x1x6 5-Compartment.stl STL · 616 KB
  • Divider Box 5x1x2 1-Compartment.stl STL · 412 KB
  • Divider Box 5x1x2 2-Compartment.stl STL · 406 KB
  • Divider Box 5x1x2 3-Compartment.stl STL · 432 KB
  • Divider Box 5x1x2 4-Compartment.stl STL · 456 KB
  • Divider Box 5x1x2 6-Compartment.stl STL · 350 KB
  • Divider Box 5x1x3 1-Compartment.stl STL · 428 KB
  • Divider Box 5x1x3 2-Compartment.stl STL · 504 KB
  • Divider Box 5x1x3 3-Compartment.stl STL · 596 KB
  • Divider Box 5x1x3 4-Compartment.stl STL · 604 KB
  • Divider Box 5x1x3 6-Compartment.stl STL · 688 KB
  • Divider Box 5x1x6 1 Compartment.stl STL · 431 KB
  • Divider Box 5x1x6 2-Compartment.stl STL · 515 KB
  • Divider Box 5x1x6 3-Compartment.stl STL · 460 KB
  • Divider Box 5x1x6 4-Compartment.stl STL · 627 KB
  • Divider Box 5x1x6 6-Compartment.stl STL · 730 KB
Categoría
Para tu impresora
Formatos
STL
Descargas
61,425
Publicado

Sobre este modelo

Versatile open-top storage blocks for the Gridfinity modular workshop storage system - multiple sizes for infinite options!

Gridfinity is the ultimate organizer for your whole workshop! Learn more at Find more Gridfinity accessories at https://bit.ly/3E2NxnZ

Parametric source file: https://a360.co/3vbu9B5

These are perfect for storing small parts and long, thin objects like needle files, and you can stack them as high as you want! The inner surface has a generous scoop to make retrieving parts easy, and the tab fits 12mm label-maker tape.

I've provided a selection of different sizes and divider counts, to give you OPTIONS! Note that none of the compartment sizes overlap - there isn't a two-compartment 4x1 bin because you can just use two one-compartment 2x1 bins.

Dimensions in file names are Width x Depth x Height. Width and Depth units are 42mm grid slots, Height is in 7mm units. A Prusa i3 Mk3S can fit a five-unit-wide bin on its plate.

Note that two-unit-high bins don't have labels - they would cut too far into the usable storage area.

Brims and support are not required, and these can be printed in any filament with an 0.6mm or smaller nozzle. Wider bins can curl, so maximize your bed adhesion if you're going big!

Gridfinity Tips! - All storage blocks are compatible with all baseplates! - Most storage blocks are stackable! - You can add 6x2mm magnets to the corners! They won't magnetize the contents. - You can also use M3 screws in the corners.

Gridfinity was inspired by Alexandre Chappel's ModuBOX system, which is found at https://www.alch.shop/shop/assortment
