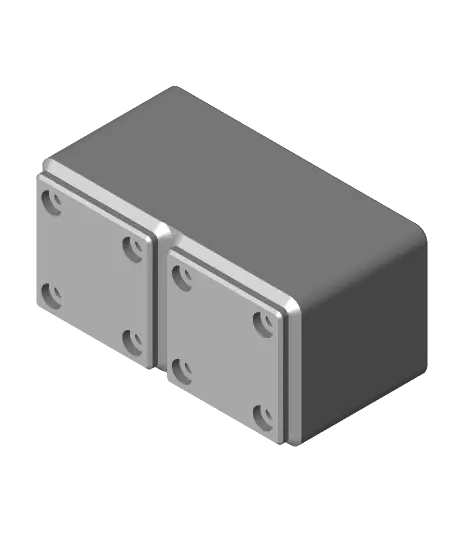

Gridfinity Caliper Holder, iGaging

This is a modified version of the Mitutoyo Series 500 caliper holder by ZackFreedman. The iGaging are very similarly shaped but have a button on the top for units that needs another cutout. These calipers also use CR2032 or CR2025 batteries, so I've replaced the battery slots with ones that fit those.

Update April 26 2022: Added f3d archive and STEP files in the spirit of open source.

--------------Everything below this is modified copypasta from the original model--------------

Find more Gridfinity accessories at https://bit.ly/3E2NxnZ

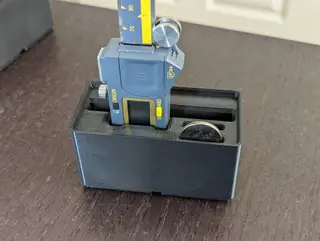

This holder stores iGaging ABSOLUTE ORIGIN 0-6" Digital Electronic Calipers and a pair of CR2032 or CR2025 batteries in a bare minimum of desk space. By sticking the caliper straight up, the contoured socket protects the jaws from damage. This has only been tested on the iGaging ABSOLUTE ORIGIN 0-6" Digital Electronic Caliper, but may work with other similar models.

This block has a high center of gravity, so I strongly recommend mounting it to a weighted baseplate using magnets or screws!

Gridfinity Tips!

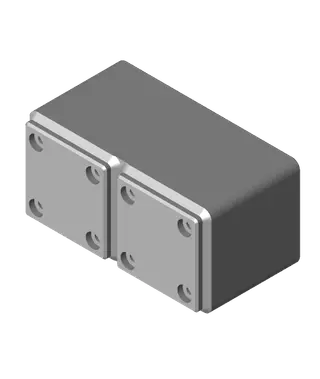

All storage blocks are compatible with all baseplates! Most storage blocks are stackable! You can add 6x2mm magnets to the corners! They won't magnetize the contents. You can also use M3 screws in the corners.
