Gridfinity Caliper Holder
Stash your measuring bois on your Gridfinity modular workshop storage system, Excalibur style.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo manteniendo el aviso de copyright del autor.
Al descargar aceptas respetar la licencia y dar crédito a Zack F.
Archivos (1)
- Caliper Holder, Mitutoyo Series 500.stl STL · 304 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 12,799
- Publicado
Sobre este modelo
Stash your measuring bois on your Gridfinity modular workshop storage system, Excalibur style.
Gridfinity is the ultimate organizer for your whole workshop! Learn more at Find more Gridfinity accessories at https://bit.ly/3E2NxnZ
Parametric source file: https://a360.co/3KZAXs6

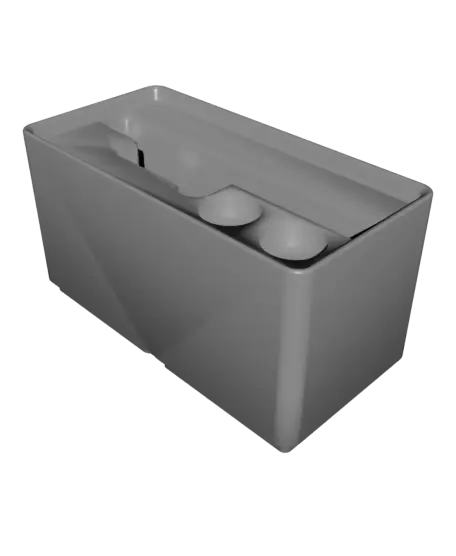

This holder stores a Mitutoyo Absolute Digimatic Series 500 caliper and a pair of SR44 batteries in a bare minimum of desk space. By sticking the caliper straight up, the contoured socket protects the jaws from damage and fits 6", 12", and all sizes.
This block has a high center of gravity, so I strongly recommend mounting it to a weighted baseplate (https://thangs.com/designer/ZackFreedman/3d-model/Gridfinity%20Baseplates-60925?manualModelView=true) using magnets or screws!
Gridfinity Tips! - All storage blocks are compatible with all baseplates! - Most storage blocks are stackable! - You can add 6x2mm magnets to the corners! They won't magnetize the contents. - You can also use M3 screws in the corners.
Gridfinity was inspired by Alexandre Chappel's ModuBOX system, which is found at https://www.alch.shop/shop/assortment
Descripción original del autor, publicada en Thangs.
