Gridfinity Cable Organizing Boxes
por Dead.Pixel en Thangs

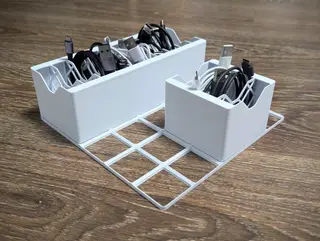

This set of boxes is designed specifically for storing cables. They have a lightweight design to use a minimum amount of plastic. The extended container's edge prevents cables from slipping out.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Dead.Pixel.
Archivos (12)
- CableOrganizingBox_2x1.stl STL · 249 KB
- CableOrganizingBox_2x1_Magnets.stl STL · 586 KB
- CableOrganizingBox_2x2.stl STL · 416 KB
- CableOrganizingBox_2x2_Magnets.stl STL · 1,1 MB
- CableOrganizingBox_2x3.stl STL · 584 KB
- CableOrganizingBox_2x3_Magnets.stl STL · 1,6 MB
- CableOrganizingBox_2x4.stl STL · 751 KB
- CableOrganizingBox_2x4_Magnets.stl STL · 2,0 MB
- CableOrganizingBox_2x5.stl STL · 918 KB
- CableOrganizingBox_2x5_Magnets.stl STL · 2,5 MB
- CableOrganizingBox_2x6.stl STL · 1,1 MB
- CableOrganizingBox_2x6_Magnets.stl STL · 3,0 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 4,845
- Publicado
Sobre este modelo

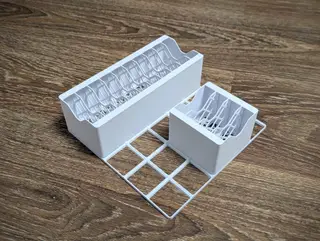

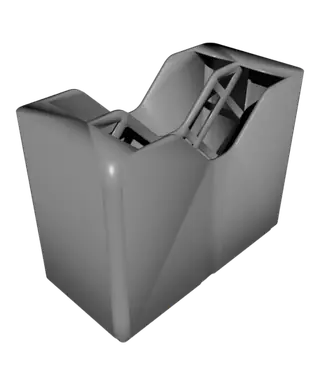

This set of boxes is designed specifically for storing cables. They have a lightweight design to use a minimum amount of plastic. The extended container's edge prevents cables from slipping out. These boxes are alterations of my original design (https://thangs.com/designer/Dead.Pixel/3d-model/Cable%20Organizing%20Box%20-1131054) but are adapted to work with Gridfinity modular system. I tried to keep them as light as possible and they are just a little bit bigger and heavier than the previous. But if you are not interested in using grid system I would recommend to stay with original model.
---

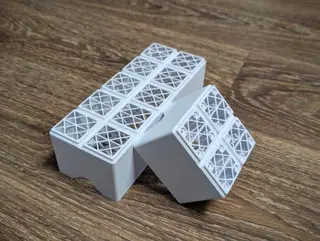

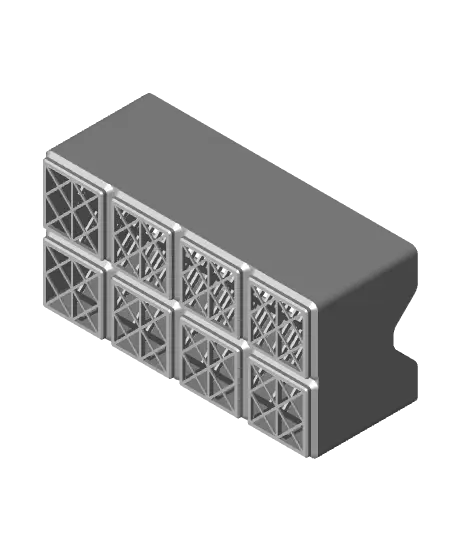

The boxes are made in 6 sizes and have variations with or without slots for magnets on the bottom side. All of them are two slots wide but vary in length.
Used slots on a grid | Dimensions, mm | Compartments | Weight, g 2x1 | 42x84x66 | 2 | 28 (29) 2x2 | 84x84x66 | 4 | 45 (48) 2x3 | 126x84x66 | 6 | 63 (66) 2x4 | 168x84x66 | 8 | 80 (84) 2x5 | 210x84x66 | 10 | 97 (102) 2x6 | 252x84x66 | 12 | 114 (120)
---
Printing recommendation
I recommend using PETG or PLA+ for better durability but regular PLA will also work fine. Should be printed without supports. You need magnets of 6mm diameter and 2mm thickness for variant with magnet slots. But it is not necessary to use magnets in every slot. It's up to you to decide where to place them.
---
Compatibility
This organizer is ideally suited for managing short (up to several meters) flexible cables. It is not suitable for thicker or stiffer cables like HDMI, DisplayPort, and similar types.
---
**This model is free for personal, non-commercial purposes only. If you like my works and find them useful you can support me by buying me a coffee here buymeacoffee.com/dead.pixel (https://buymeacoffee.com/dead.pixel) or here ko-fi.com/dead_pixel (https://ko-fi.com/dead_pixel). Thank you!**
Descripción original del autor, publicada en Thangs.
