Gridfinity Battery Box: CR2032/CR2016, 357/303/SR44 and A23/MN21/AAA slots
por dhiltonp en Printables
Holds a combination of 22 CR2032 or 44 CR2016, 12 357 batteries, and 2 A23 batteries.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a dhiltonp.
Archivos (3)
- Categoría
- Organización
- Formatos
- 3MF, F3D, GCODE
- Descargas
- 2,849
- Publicado
Sobre este modelo

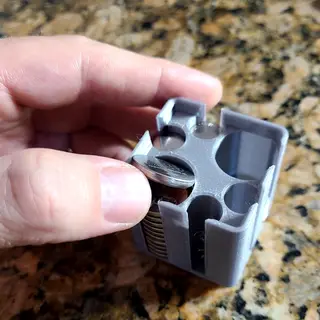

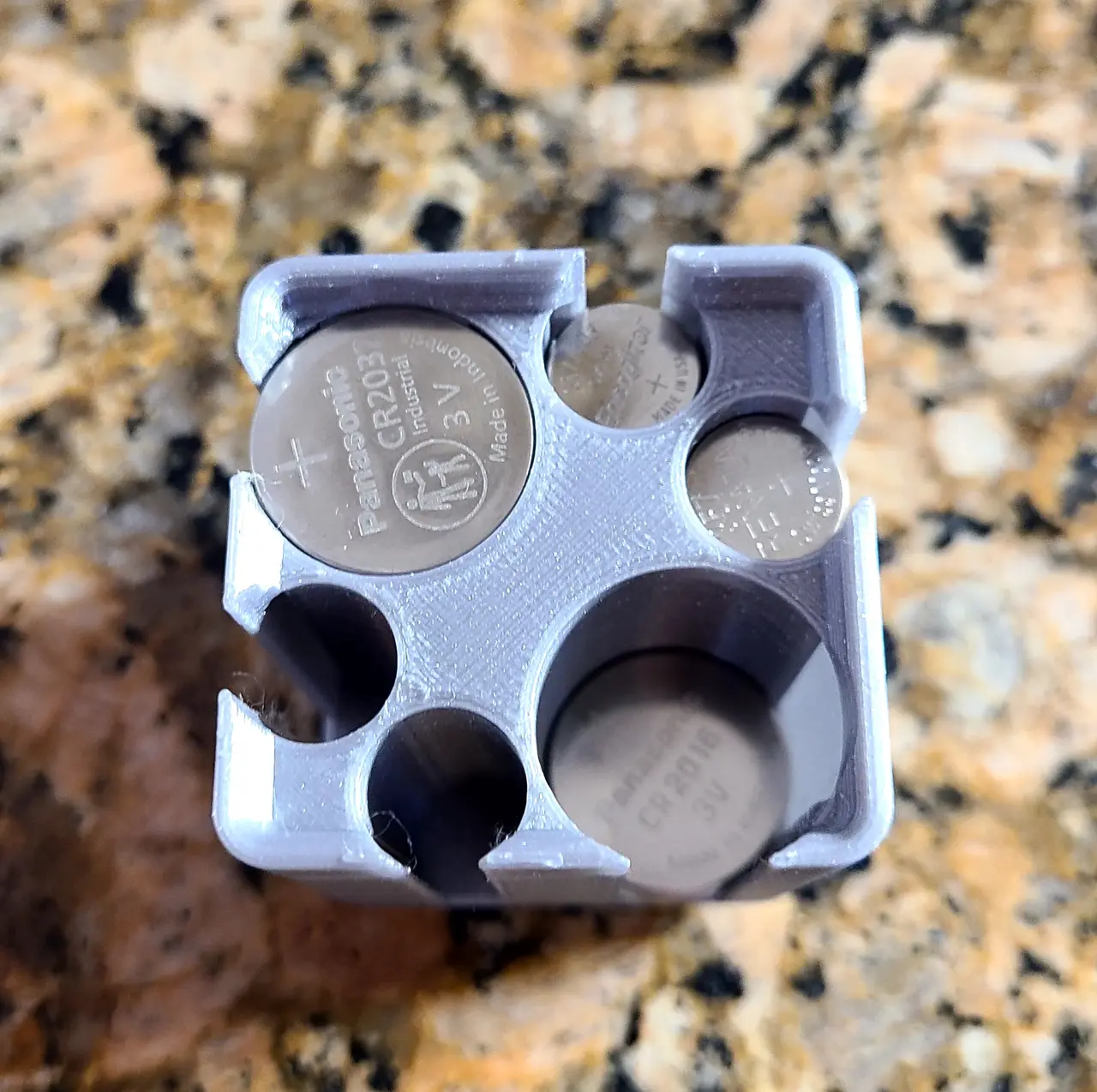

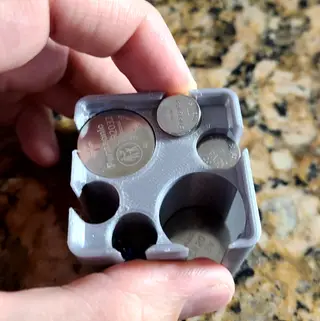

This is for Zach Freedman's Gridfinity. It can hold 22 CR2032 or 44 CR2016 batteries, 12 357/303/SR44 batteries, and 2 A23 batteries (commonly used in garage door openers). The A23 slots can hold AAA batteries, but the holder will no longer be stackable. This would easily be changed via Fusion 360. Do NOT print using carbon fiber, ESD filaments, or other conductive filament. There is no danger per se, but the batteries will slowly discharge. I downloaded the blank template (included with his baseplates), filled the cube, and cut out 6 circles, two for each battery size. The holes are 20.5mm, 12.1mm, and 11mm; these are .5mm larger than each battery diameter. The Fusion 360 file is included for further modification.
Descripción original del autor, publicada en Printables.
