Gridfinity Baseplates

Straighten out your workshop with Gridfinity modular storage - deploy these plates anywhere you need some order!

Gridfinity is the ultimate organizer for your whole workshop! Learn more at Find more Gridfinity accessories at https://bit.ly/3E2NxnZ

Parametric source files: - Frame: https://a360.co/3ccHbsg - Weighted Plate: https://a360.co/3uCJ2gR

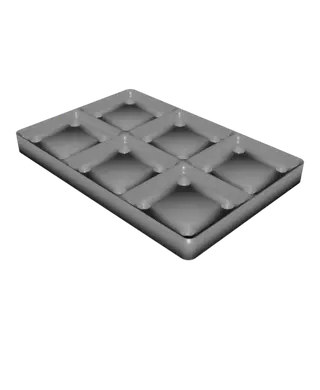

The foundation of every Gridfinity setup is a baseplate, and these let you drop storage where you need it most.

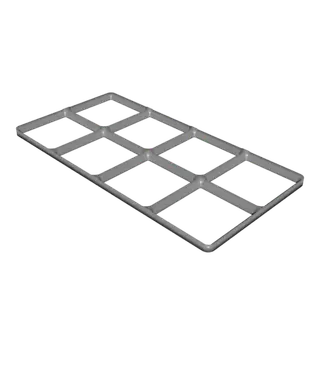

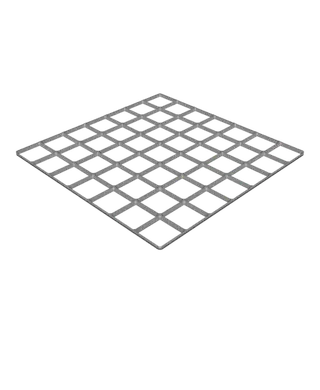

Frame: The absolutely minimal no-frills baseplate. No room for screws or magnets, but saves filament and headroom. If your storage unit is on a steel surface, you can still put magnets in the storage blocks to keep them from sliding.

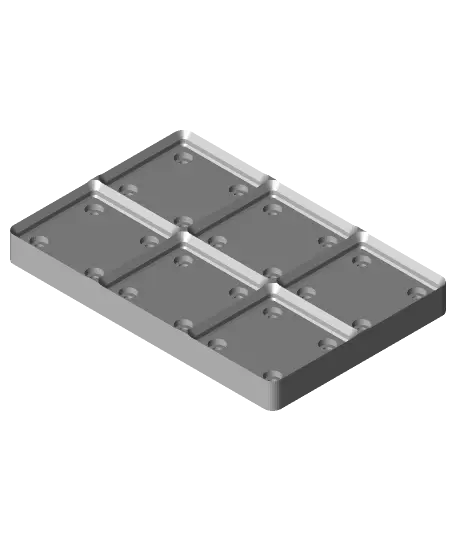

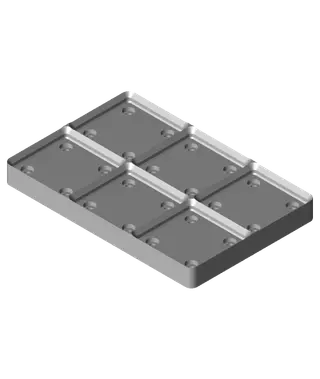

Weighted: Heavy, sturdy baseplate perfect for desktops, shelves, and other places where knocking stuff over is a big problem.

Secure blocks permanently with M3 screws, (https://amzn.to/37IaXTg) or temporarily with 6x2mm magnets (https://amzn.to/37Ihopq). Add rubber feet (https://amzn.to/3LZv4v5) to keep the whole shebang from sliding, and metal tire weights (https://amzn.to/3uAzH9f)to drop the center of gravity and prevent wipeouts. You don't need to install every magnet, foot, and weight! Just use enough for your needs.

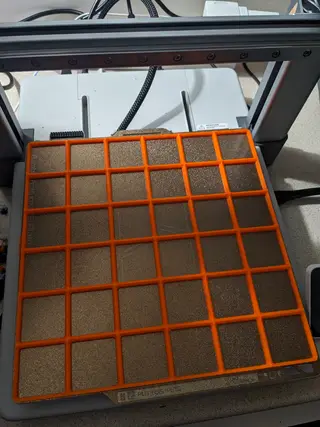

A Prusa i3 Mk3 can print up to a 5x5 grid. No matter what you use, make sure your bed adhesion and release is dialed in - these love to curl, and their high surface area can make them challenging to remove.

Gridfinity Tips! - No brims or support required! - Use any filament with an 0.6mm or smaller nozzle. - Wider plates can curl, so maximize your bed adhesion if you're going big! - All storage blocks are compatible with all baseplates! - Most storage blocks are stackable! - You can add 6x2mm magnets to the corners! They won't magnetize the contents. - You can also use M3 screws in the corners.

Gridfinity was inspired by Alexandre Chappel's ModuBOX system, which is found at https://www.alch.shop/shop/assortment
