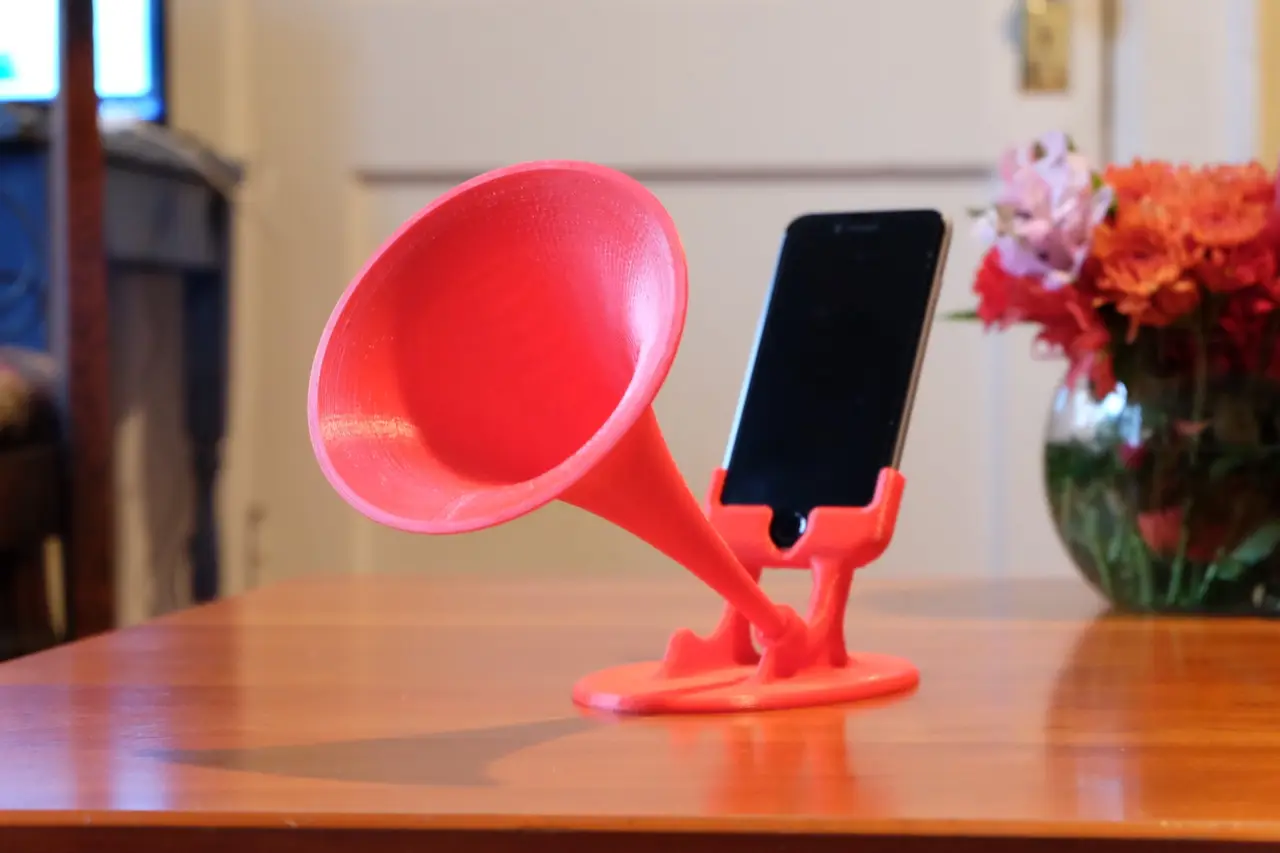

GRAMiPhone - iPhone 6 Gramophone Horn
por Bryce Lowe en Thingiverse
This passive amplifier horn will amplify your phone's speaker without power. The horn profile is based on a Western Electric exponential horn. The horn is 7.5" long and press fits into the base. I added 0.010 clearance for the phone but when it printed it was still a tight fit. Update Jan 5, 2016...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Bryce Lowe.
Archivos (4)
- Categoría
- Tecnología
- Formatos
- STL, STEP
- Descargas
- 37,975
- Publicado
Sobre este modelo

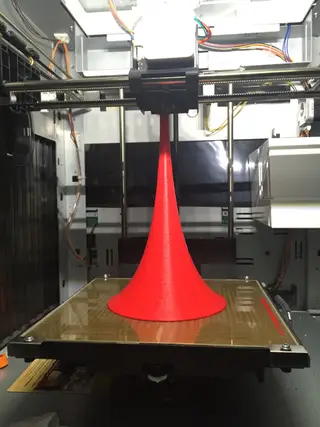

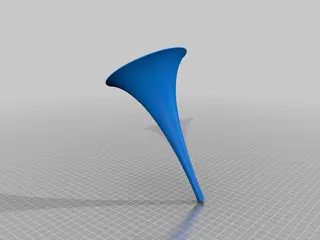

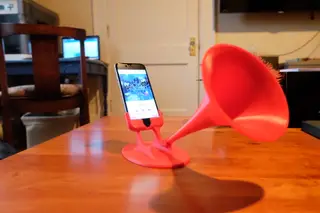

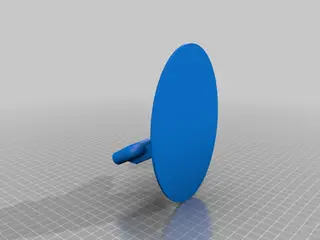

This passive amplifier horn will amplify your phone's speaker without power. The horn profile is based on a Western Electric exponential horn. The horn is 7.5" long and press fits into the base. I added 0.010 clearance for the phone but when it printed it was still a tight fit. Update Jan 5, 2016: I've modified the base to be friendly to printing without supports. There is still a round tube inside that may give problems without support. This depends on your printer's ability to print overhang layers. I've also increased the clearance for the phone so it's not so tight. The new base file name is signified by REV 2.
