GorillaPod (UPDATE 2)
por Gianluca Rolle en MyMiniFactory

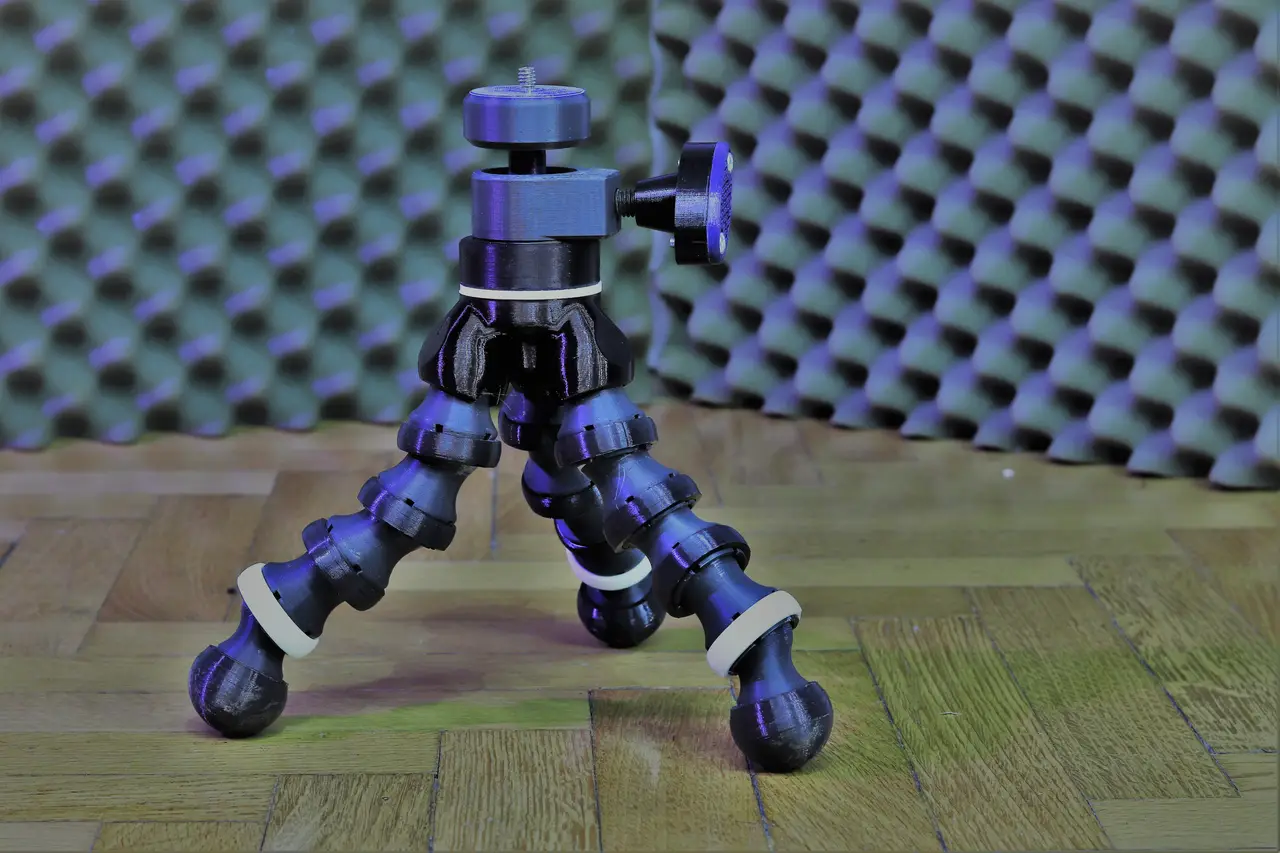

This is a 3D printed GorillaPod. Fully 3D printable without supports.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Gianluca Rolle.
Archivos (14)
- Ball Foot.stl STL
- Ball Insert New 1.Stl STL
- Ball Joint.stl STL
- Ball New 1.Stl STL
- Camera Mount New 1.Stl STL
- Exagon Pin.stl STL
- foot.stl STL
- Joint Ring.stl STL
- Knob A.stl STL
- Knob B.stl STL
- Little Pin New Important 1.Stl STL
- Spacer Ring.stl STL
- Triple Joint V2 Bot.stl STL
- Triple Joint V2 Top.stl STL
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 1,472
- Publicado
Sobre este modelo
This is a 3D printed GorillaPod. Fully 3D printable without supports.

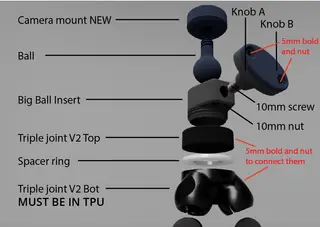

FOLLOW THE INSTRUCTION IMAGE
YOU'RE FREE TO REMIX AND REDESIGN EVERY PART! I would love to see your changes and improvements

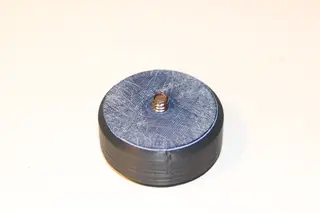

The camera mount is made for MY OWN CAMERA PLATE. I suggest to design a new mount for your camera. The scew of the ball is and ISO M10x2 - 10 mm. The materials are very important to make it very solid and robus:
- The ball joints should be in ASA or ABS, for durability and elasticity.
- The rings MUST be in any FLEXIBLE filament.
- The rest could be in PLA, but is suggest to use ABS or ASA for all the pieces

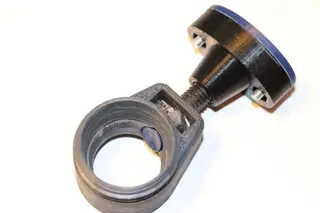

To tighten the ball i suggest to use a metal screw instead of a 3d printed one. I had a 10 mm screw wth exsagon end, so I designed for my own.
YOU'RE FREE TO REMIX AND REDESIGN EVERY PART! I would love to see your changes and improvements
Descripción original del autor, publicada en MyMiniFactory.
