GoPro customizable mounts, and a library to expand (UPDATED!)
por Jeremie FRANCOIS en Thingiverse
This is a flexible library for GoPro mounts. It is also customizer-friendly so you can design your very own mounts and print them directly. In the predefined shapes, you'll get the basic 2- and 3-arm mounts (to build upon), but it also features useful extensions such as handlebar / seat post /...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Jeremie FRANCOIS.
Archivos (16)
- gpm_bar50.stl STL · 401 KB
- gpm_example.stl STL · 1,1 MB
- gpm_bar75.stl STL · 399 KB
- gpm_double_rod_0.stl STL · 244 KB
- gpm_double_rod_90.stl STL · 288 KB
- gpm_double_triple.stl STL · 363 KB
- gpm_triple_clamp22_ext50.stl STL · 461 KB
- gpm_triple_rod_0.stl STL · 362 KB
- gpm_triple_rod_45.stl STL · 370 KB
- gpm_triple_rod_90.stl STL · 413 KB
- gpm_double_naked.stl STL · 124 KB
- gpm_triple_naked.stl STL · 204 KB
- gpm_triple_clamp31.stl STL · 437 KB
- gpm_double_rod_45.stl STL · 252 KB
- gpm_double_triple_ext30_rotated.stl STL · 402 KB
- gopro_mounts_mooncactus.scad SCAD · 21 KB
- Categoría
- Tecnología
- Formatos
- STL, SCAD
- Descargas
- 83,433
- Publicado
Sobre este modelo

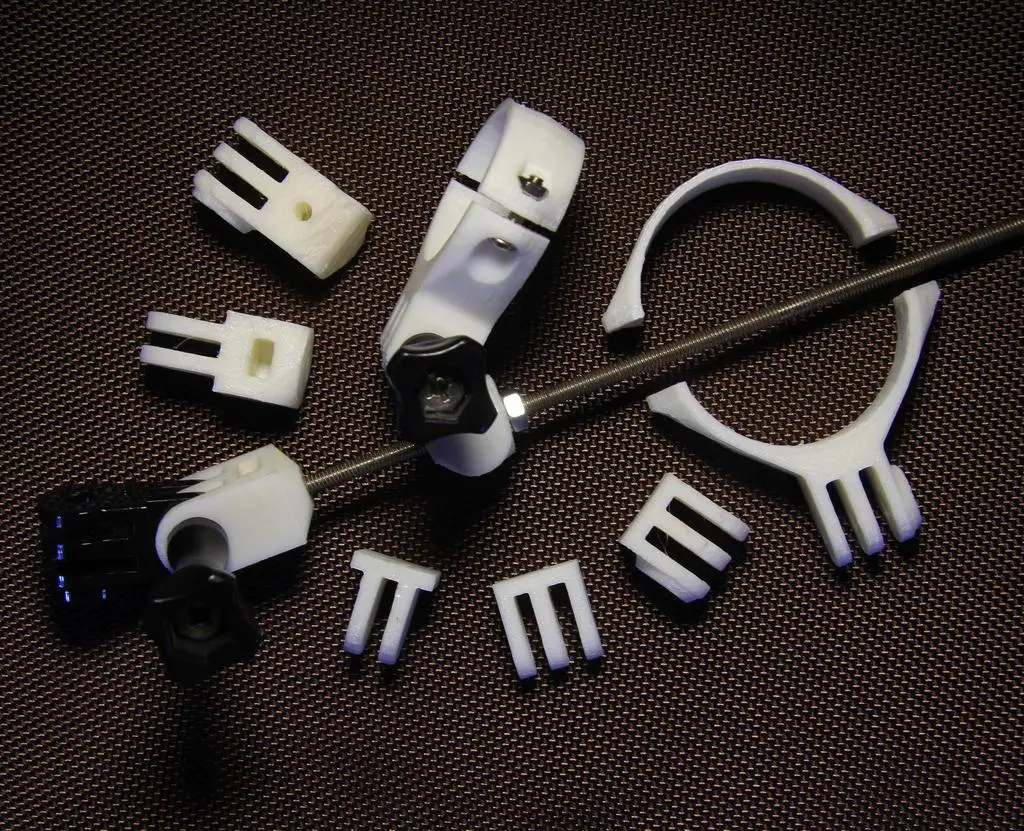

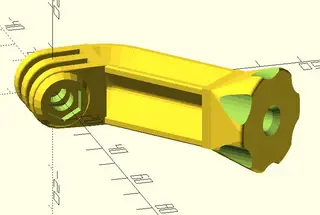

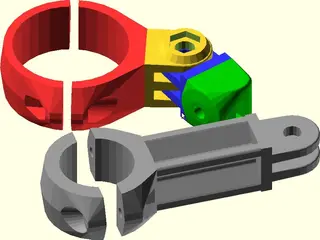

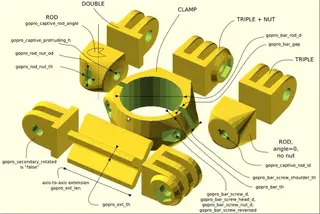

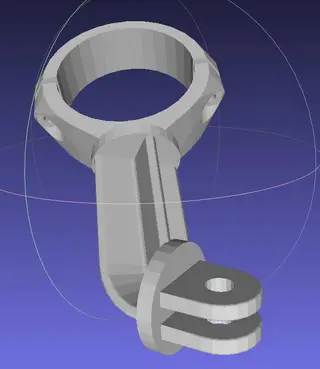

This is a flexible library for GoPro mounts. It is also customizer-friendly so you can design your very own mounts and print them directly. In the predefined shapes, you'll get the basic 2- and 3-arm mounts (to build upon), but it also features useful extensions such as handlebar / seat post / threaded rod mounts and options. Check the pictures, and the customizer! Update 2021 eventually added - optional bend to the extension arm - head twists - softer tolerance on fthe double/triple fingers (not in the pre-generated STL, use the customizer) - tripod mounts - base plate mount
Descripción original del autor, publicada en Thingiverse.
