GoPro 9/10/11 - Rugged Case (2 Variants)
por Whity en Printables

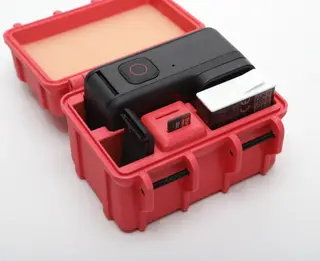

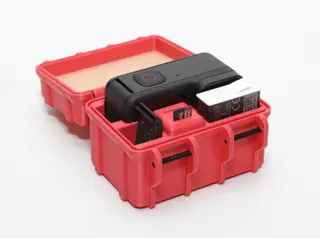

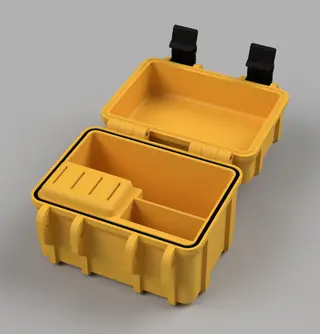

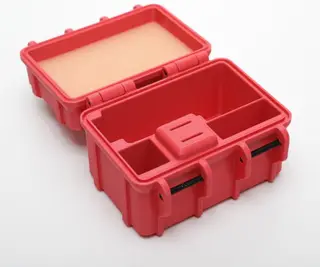

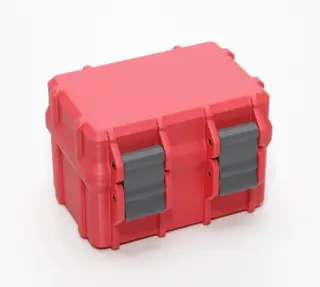

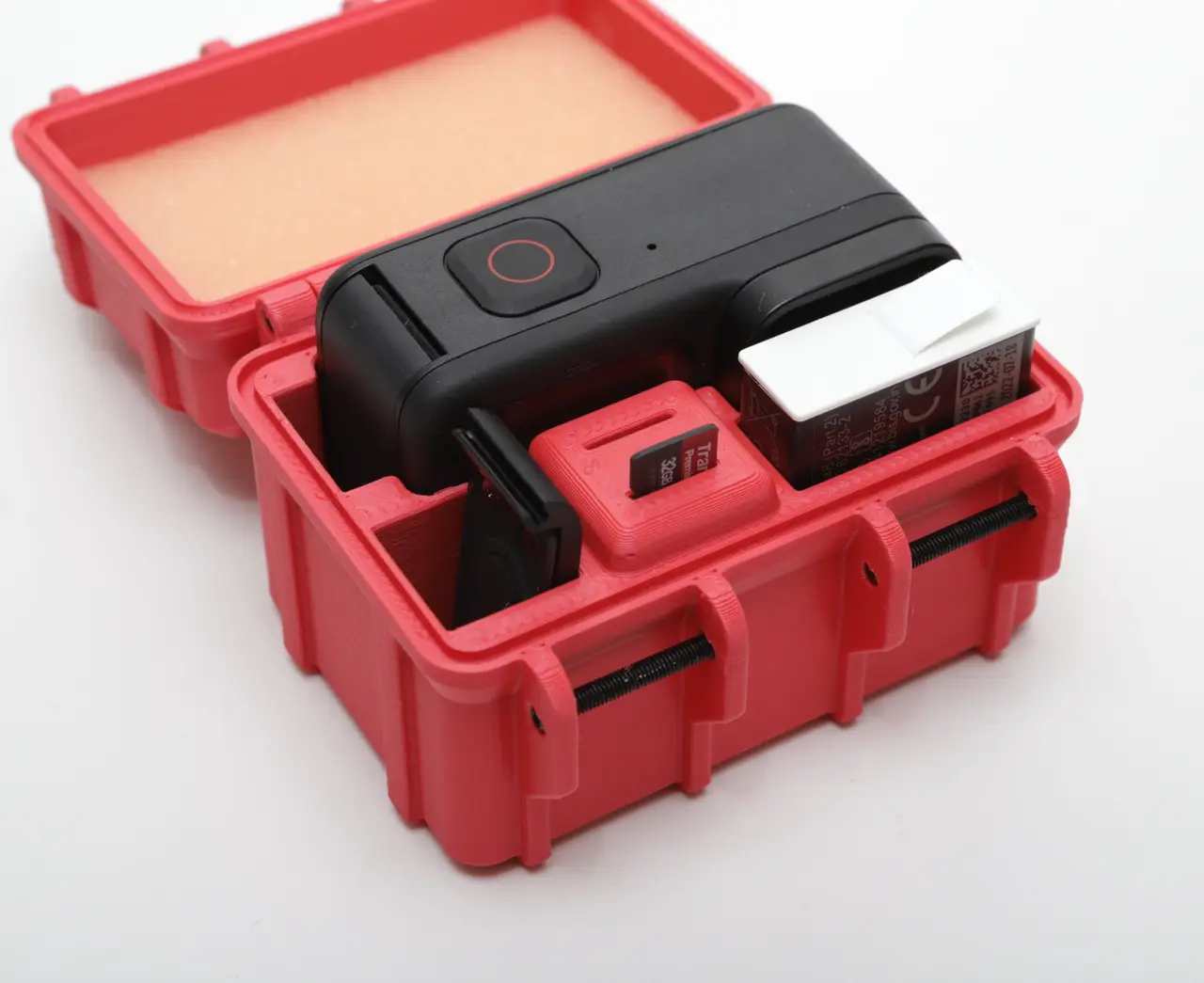

Rugged box style case for GoPro 9, 10 or 11
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Whity.
Archivos (10)
- GoPro 11 - Rugged Box - 4 SD.3mf 3MF · 296 KB
- GoPro 11 - Rugged Box - 4 SD - Box.stl STL · 685 KB
- GoPro 11 - Rugged Box - 4 SD - Lid.stl STL · 374 KB
- GoPro 11 - Rugged Box - 4 SD - Latch.stl STL · 196 KB
- GoPro 11 - Rugged Box - 4 SD - Seal.stl STL · 29 KB
- GoPro 11 - Rugged Box - 2 SD Pass-Through.3mf 3MF · 305 KB
- GoPro 11 - Rugged Box - 2 SD Pass-Through - Box.stl STL · 698 KB
- GoPro 11 - Rugged Box - 2 SD Pass-Through - Lid.stl STL · 368 KB
- GoPro 11 - Rugged Box - 2 SD Pass-Through - Latch.stl STL · 229 KB
- GoPro 11 - Rugged Box - 2 SD Pass-Through - Seal.stl STL · 28 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STL
- Descargas
- 4,624
- Publicado
Sobre este modelo
The case is based on my parameterizable "Rugged Box". A GoPro 8 version is available here.
Support my work For non-Prusa parts and filaments, check out 3DJake (International, UK, Germany, France). I'll get a small cut of any order you fulfil using these links (at no additional cost for you 😉). If you want to support my work directly, you can buy me a coffee. If you want to order a Prusa printer and earn some Prusameters (I will also get some), you can use my referral code "@Whity" at checkout or click one of the following links (the code only works for the first order of each printer model): | CORE One | CORE One Kit | MK4 | MK4 Kit | MINI+ | MINI+ Kit | XL | SL1S | SL1S+CW1S | Also check out my other models.
Versions Two variants are available: 1 GoPro and 1 battery, plus - 2 SD cards and an additional battery cover (This case is wider and also fits the GoPro with the Pass-Through door installed) - 4 SD cards
Assembly You will need six M3x20 (4 SD cards) or M3x25 (2SD cards) screws to assemble it, and a piece of (soft) foam (9-10 mm thickness) to put into the lid.
Descripción original del autor, publicada en Printables.
