GOEWS - Greatly Over Engineered Wall System

GOEWS website https://goews.ws/ GOEWS Reddit Group https://www.reddit.com/r/GOEWS/

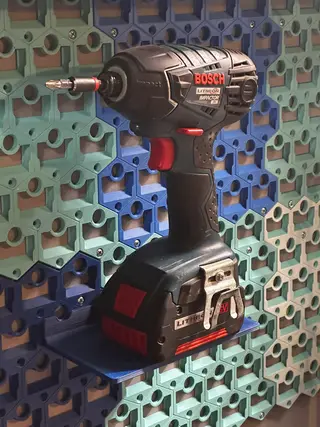

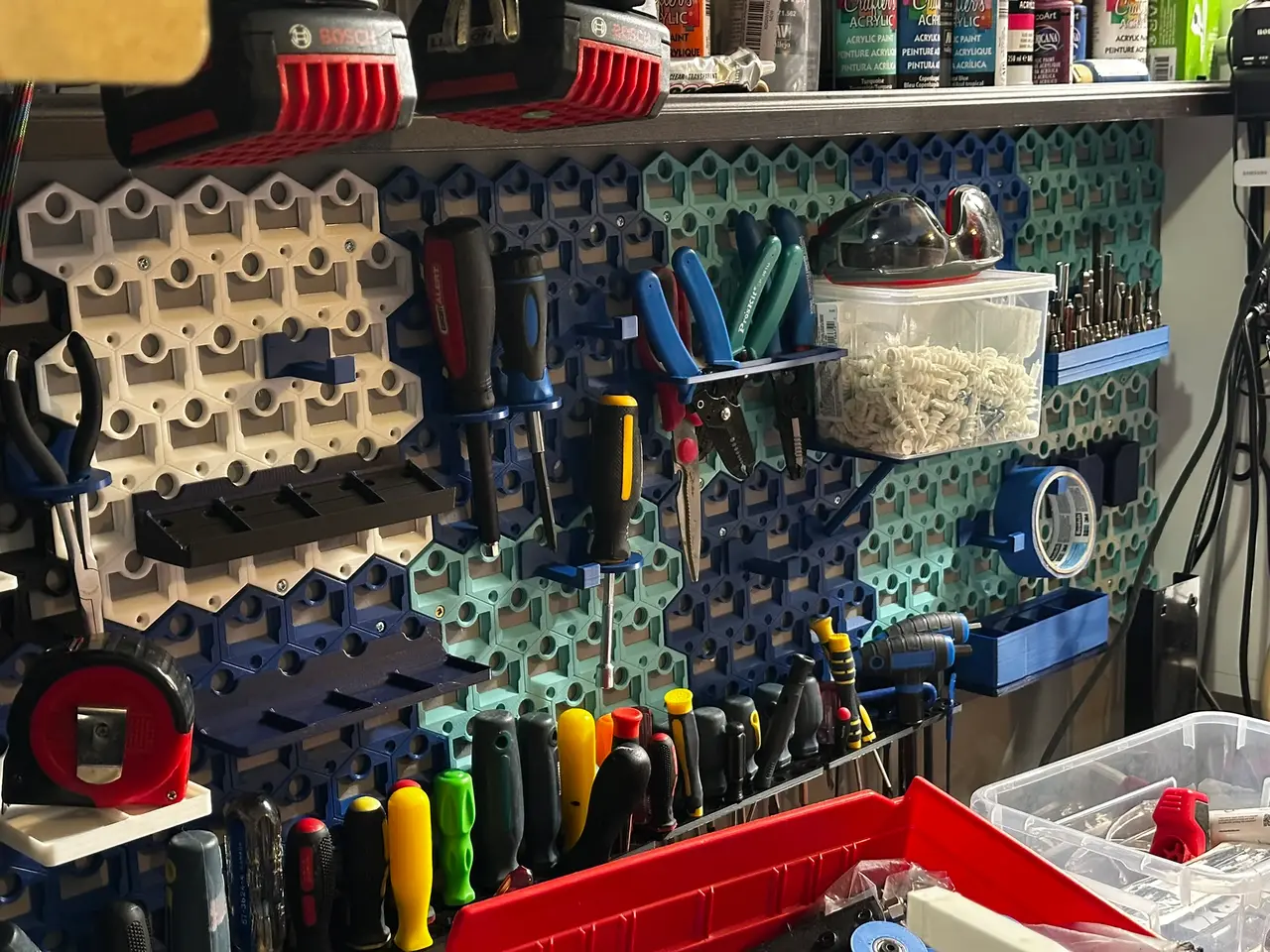

The Greatly Over Engineered Wall System (GOEWS) is a modular storage solution combining the flexibility of the Gridfinity system with a durable, modern hexagonal design. GOEWS is easy to install with secure, interlocking tiles that support a wide range of tools and accessories. Its simple, expandable system makes it perfect for organizing any workspace efficiently and stylishly. GOEWS simplifies organization by focusing on core, functional components while offering endless scalability. Its strong, reliable design makes it ideal for both DIYers and professionals. Compatible with Gridfinity, GOEWS integrates seamlessly with existing setups, allowing you to adapt and grow your storage system as needed. Whether storing tools, screws, or safety gear, GOEWS delivers a solution that combines function and aesthetic appeal. What’s So Great About GOEWS? - Based on Gridfinity Spacing: Works seamlessly with Gridfinity systems. - Strong and Secure: Designed to hold heavy tools reliably. - Bolt Lock Option: Add extra security with optional bolt locks. - Open Source: F3D and STEP files are freely available for customization. - Free for Commercial Use: No subscriptions or fees—use it however you like. - Simple System: Minimal parts needed to get started. - No Supports needed, 2-3 Perimeters, 15% infill only

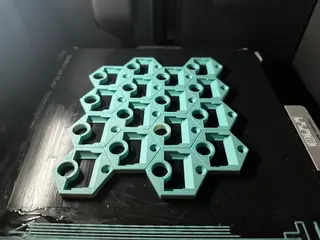

Say goodbye to clutter and hello to efficiency with GOEWS—a simple, over-engineered wall system designed to keep your workspace organized and functional! Printing Tips: Print Bolts with 10 Perimeters / Solid Infill

Updates: Jan 10, 2025 - Thanks to @MrMcyeet_415048 for mentioning an issue with the Double hanger Gridfinity 3x2 base, part of it was hanging in mid air, that has been updated

Jan 7, 2025 - Updated Standard Bolt to have a smaller 18mm head to help with clearance issues related to GOEWS Grid and Supported Shelves. Thanks to @Matgerke for pointing out the issue

Jan 6, 2025 - Added Small Hooks to hang Picture Frames

Jan 4, 2025 - Added additional Hook Sizes

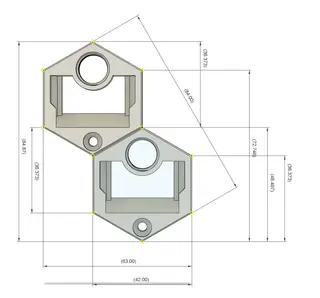

Jan 3, 2025 GOEWS GRID - the Straight version of GOEWS has been added. this maintains the 42mm Gridfinity horizontal Spacing and also maintains the 36.373mm vertical spacing that the GOEWS HEX Tiles Use. A GOEWS GRID Tile maker has been added to the GOEWS GRID folder. Dec 16, 2024 - Added in the Flush Bolt by @andrew_3d - Added 1x hanger Parametric Files for hanging Cup holders plus a few step/stl of different sizes, with and without tabs.. versions witthout tabs need flush bolt to hold down. if you want to use a bolt

Dec 14, 2024 - Small updated to 2x and 3x supported gridfinity shelves with magnets, so more layers supporting top surface. increasing overall thickness by 0.4mm

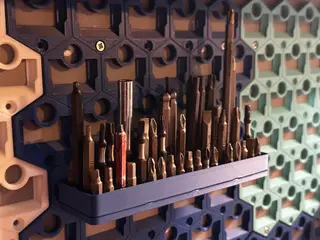

Dec 7: - Added Shelves with Holes for screwdriver hanging example - Added Gridfinity shelves with magnet holes for 1 row and 2 row deep shelves

Nov 29,2024: - Added Tile Stacks with 0,2mm Gaps and also Tile Stacks with 0.4mm Spacers have been added, also with parametric f3d file - Added Lite Tile maker. with Lite Tiles savings of aprox 22% over standard tiles. similar print time. these have not been tested yet - added three parametric tool shelves. hope they come in handy. and here is a quick video on how to use them https://youtu.be/foeHN_Kr7gY

Nov 28, 2024 :Added Shelf Legend with 2x Deep shelves. with optional supports if you need the extra strength Remix Tips: GOEWS threads were created in fusion 360 with the help of a special thread profile for 3d printing. you can find here. preset used was ISO Metric 0.3mm tolerance 14mm M14x2 Class 6g Right Hand The special profile can be found here https://replicantfx.com/product/fusion-360-iso-metric-thread-profiles-w-tolerance/
